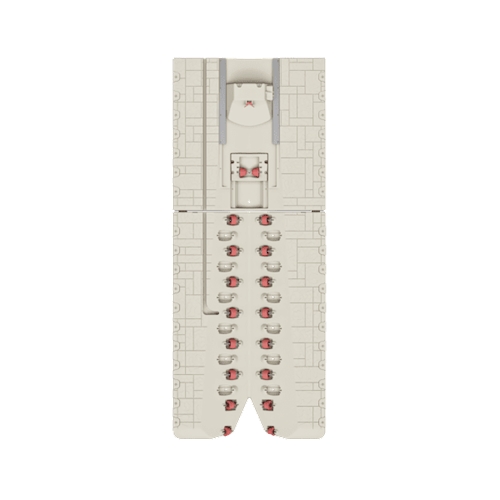

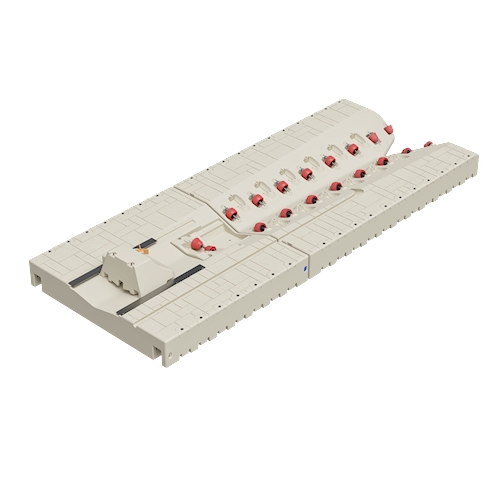

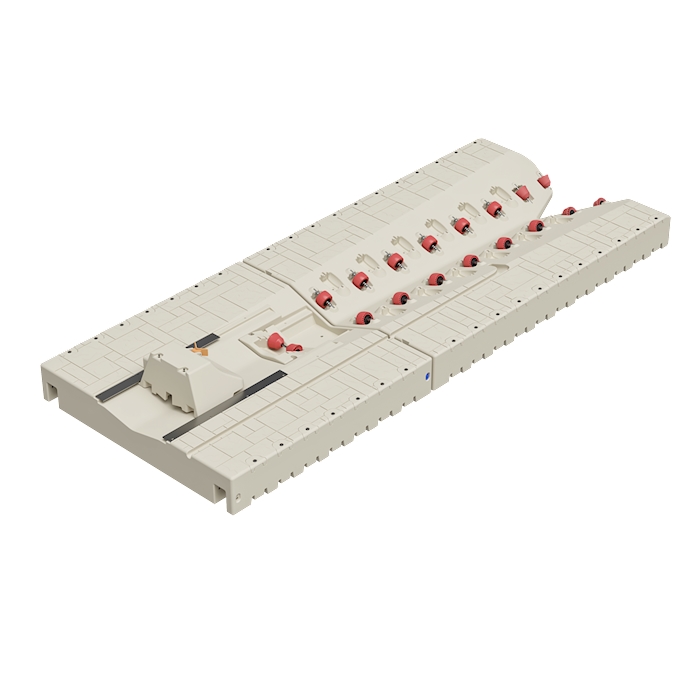

WAVE ARMOR PRO 8 BOAT PORT

The Wave Armor Pro 8 Boat Port is a highly customizable floating boat port designed for jet boats, small runabouts, and other watercraft with smaller engines. Built for easy boarding, secure storage, and smooth loading, the Pro 8 offers a modular design that can be tailored to a wide range of waterfront applications while supporting boats up to 4,000 lbs.

Engineered for both performance and convenience, the Wave Armor Pro 8 features a large self-centering entry, adjustable bow support, and optional expansion components that allow you to increase walkaround space and flotation. Whether you need a dependable port for seasonal docking, daily use, or a premium waterfront setup, the Pro 8 delivers a durable, low-maintenance solution built for the marine environment.

KEY FEATURES OF THE WAVE ARMOR PRO 8 BOAT PORT

• Supports boats up to 4,000 lbs
• Simple port assembly for easier setup and installation
• Large centering V-shape entry helps guide the boat onto the port, even when approaching off-center or at an angle
• Adjustable center front roller moves vertically in 3" increments to help raise or lower the bow as needed
• Adjustable bow stop offers over 48" of adjustment for a better fit to your hull
• Optional push-arm compatibility allows for easier remote launching assistance
• Side mounting pockets accommodate additional Wave Armor accessories
• Optional 10" side wings can be added for increased flotation, expanded width, and more walking surface
• Durable rotomolded polyethylene construction for long-lasting performance in harsh marine environments
• Low-maintenance design resists fading, cracking, and chipping

CUSTOMIZABLE FLOATING BOAT PORT FOR SMALLER WATERCRAFT

One of the biggest advantages of the Wave Armor Pro 8 Boat Port is its modular flexibility. Optional side extension decks and 10" side wings allow you to increase the usable width of the port, improve flotation, and create more walkaround room for boarding, cleaning, and loading. This makes the Pro 8 an excellent choice for waterfront owners who want a custom floating boat port that can adapt to their boat and docking layout.

The adjustable bow stop and front roller system help fine-tune the fit of the port to your boat. This improves loading performance, supports proper bow positioning, and helps reduce drag during entry and exit.

DOCK ATTACHMENT OPTIONS

Choose the mounting system that matches your dock and preferred port placement. Attachment kits and accessories are sold separately.

Image	Attachment	Details
	PRO Port Front Mount to Wave Dock Part #302196	Slides into the Wave Dock H-Beam channel and allows hinge-like movement with wave action. Includes two mounts and hardware.
	PRO 8 and Pontoon Port Side Mount Slide Assembly to Wave Dock Part #302603	Connects the port’s side mounting pockets to the Wave Dock H-Beam channel. Includes two assemblies and hardware.
	PRO 8/Pontoon Side Mount Slide Assembly to Floating Dock Part #302792	Connects the port’s side mounting pockets to a floating dock. Includes two assemblies and hardware. Requires C-Channel kit #303288, sold separately. Part #301347 is also required when used with a canopy.
	PRO Port Connector Part #303289 and 23.5" C-Channels Part #303288	Connects the port’s front mounting pocket to a galvanized C-Channel on a floating dock. Includes two connectors and hardware. Requires C-Channel kit #303288.    C-Channel Kit #303288. Used with compatible floating dock attachment kits. Includes two channels and hardware.

SMOOTH ENTRY AND SECURE LOADING

The Pro 8 is engineered to make docking easier and more forgiving. Its deep centering V-shaped entrance helps align your boat as you approach, while the varied wheel density creates a smoother transition onto the port. Even if you approach slightly off-center, the design helps guide the hull into position for easier loading and improved stability.

This combination of self-centering guidance and adjustable bow support makes the Wave Armor Pro 8 a great option for users looking for a reliable floating port for jet boats or smaller recreational boats.

BUILD FOR MARINE DURABILITY

Constructed from rugged rotomolded polyethylene, the Wave Armor Pro 8 is designed to handle demanding waterfront conditions with minimal upkeep. Its durable surface resists UV exposure, fading, cracking, and impact damage, making it a dependable long-term docking solution for residential and commercial use alike.

If you need a modular floating boat port that offers easy loading, customizable width, and durable construction, the Wave Armor Pro 8 Boat Port is an excellent solution for protecting and storing your boat at the water’s edge.
