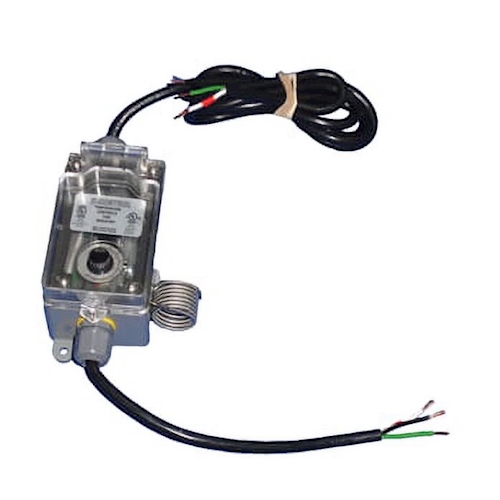

Ice Eater Portable Thermostat – 230V, Part #131017
Control your Ice Eater automatically as outdoor temperatures change with the Airmax 230V Ice Eater Thermostat, also known as the Power House Portable Thermostat. This adjustable control responds to ambient air temperature, switching your de-icer on when temperatures fall below the selected setting and off as temperatures rise.
Part #131017 is designed for hardwired installation. It includes a 6-foot power-source pigtail and a 1-foot equipment-connection pigtail with bare leads. Have a qualified electrician complete the installation using the manufacturer’s instructions and an electrical supply that matches your equipment.
Key Features
- Automatic temperature control: Operates your Ice Eater as air temperatures rise and fall.
- Adjustable setting: Temperature range of 0°F to 80°F with ±2°F accuracy.
- 230V configuration: For compatible 230V Ice Eater installations.
- Bare-lead connections: Includes separate pigtails for the electrical supply and de-icer connection.
- Outdoor construction: Weather-resistant polycarbonate thermoplastic enclosure.
- Durable components: Moisture-proof box, stainless steel coil and portable hanger.
- Temperature-based operation: Helps reduce unnecessary de-icer runtime during warmer weather.
Thermostat Specifications
| Part Number |
131017 |
| Voltage |
230V |
| Temperature Range |
0°F to 80°F |
| Temperature Accuracy |
±2°F |
| Temperature Sensing |
Ambient air temperature |
| Power-Source Pigtail |
6 feet, bare leads |
| Equipment-Connection Pigtail |
1 foot, bare leads |
| Installation |
Hardwired connection by a qualified electrician |
| Enclosure |
Weather-resistant polycarbonate thermoplastic |
Compatible Ice Eater Models
Airmax lists thermostat #131017 as the optional 230V thermostat for the following redesigned Ice Eater configurations:
- P750: 3/4 HP, 230V
- P1000: 1 HP, 230V
For a 115V Ice Eater, select the separate 115V thermostat, part #131018. Confirm electrical ratings and compatibility before connecting other de-icer brands or equipment.
Installation & Operation
The longer pigtail provides the connection to the electrical supply, while the shorter pigtail provides the connection to the Ice Eater. This model does not include the pre-wired plug and receptacle supplied with the 115V thermostat.
- Have a qualified electrician verify the thermostat, de-icer and electrical supply ratings.
- Position the thermostat where it can sense representative outdoor air temperature.
- Have the electrician complete the supply and equipment connections according to the manufacturer’s wiring instructions.
- Adjust the temperature setting to suit your de-icing needs.
Use a properly grounded, GFCI-protected electrical supply. Disconnect power before servicing, cleaning or repositioning your de-icer; temperature-controlled equipment can start automatically.
Frequently Asked Questions
Does this thermostat measure water temperature?
No. It responds to ambient air temperature.
Does part #131017 include a plug and receptacle?
No. This version includes bare-lead pigtails for hardwired installation. It does not include the plug-in connections supplied with the 115V model.
Can I use this thermostat with a 115V Ice Eater?
No. Part #131017 is the 230V version. Select part #131018 for a compatible 115V Ice Eater.
Does it replace GFCI protection?
No. The thermostat and de-icer require a properly grounded, GFCI-protected electrical supply.
Is an Ice Eater included?
No. This listing is for the thermostat. The Ice Eater is sold separately.
