6,500 lb. Deluxe Gear Plate Assembly – 1/4" Aluminum

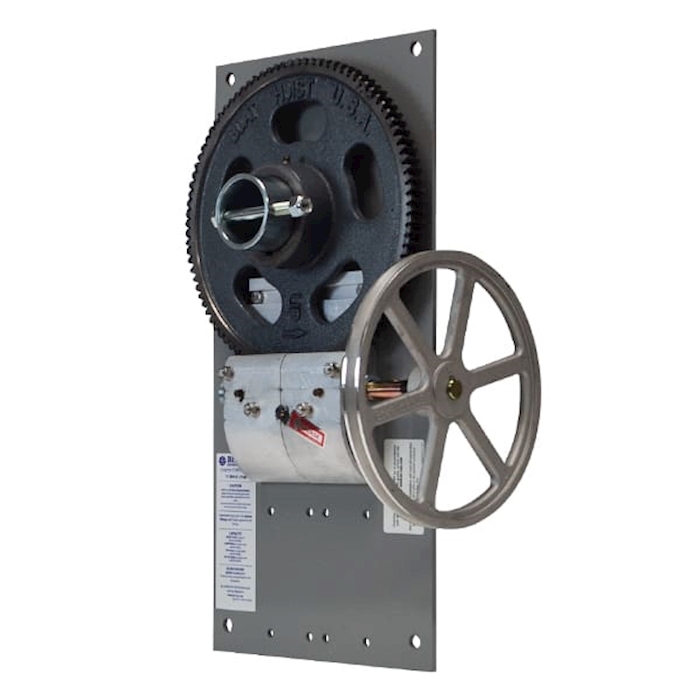

The 6,500 lb. Deluxe Gear Plate Assembly – 1/4" Aluminum is a lightweight yet durable drive system designed for dependable performance in flat-plate boat hoist applications. Featuring a corrosion-resistant aluminum backplate, this version offers excellent protection against rust while reducing overall weight for easier handling and installation.

Capable of lifting up to 6,500 lbs (straight line) when paired with a 1 HP HD motor, this assembly has been proven in BH-USA flat plate hoists for over 15 years. It utilizes a 96:1 cast iron worm gear and bronze worm drive to deliver smooth, reliable lifting performance while eliminating steel-on-steel contact to reduce wear and extend service life.

Features:

• 6,500 lb. straight line capacity (motor dependent)
• 1/4" aluminum backplate – lightweight and corrosion-resistant
• Fully assembled and load tested by the manufacturer
• No steel-on-steel moving parts for reduced wear and longer service life
• 96-tooth cast iron worm gear with bronze worm drive
• Includes 10" aluminum die-cast hoist pulley and 34" cogged drive belt
• (3) easy-access 1/4" grease fittings for convenient maintenance
• Standard flat-plate mounting holes for compatibility with most hoists
• Lifetime warranty

Motor Capacity Guidelines:

• Up to 6,500 lbs. with 1 HP HD motor
• Up to 4,500 lbs. with 1 HP motor
• Up to 3,500 lbs. with 3/4 HP motor

Specifications:

• Rated Capacity: 6,500 lbs (straight line)
• Gear Ratio: 96:1
• Plate Dimensions: 12" L x 24" H
• Plate Thickness: 1/4"
• Worm Gear Material: Cast Iron
• Worm Material: Bronze
• Worm Diameter: 1 3/4"
• Grease Fittings: (3) – 1/4"

Includes:

• Deluxe gear plate assembly with 1/4" aluminum backplate
• 96-tooth cast iron worm gear
• Extended block bronze worm assembly
• 10" aluminum die-cast single hoist pulley
• 34" AX cogged drive belt

With its lightweight aluminum construction, corrosion resistance, and proven performance, the 6,500 lb. Deluxe Gear Plate Assembly is an excellent option for boat lift owners looking for a durable, easy-to-handle replacement or upgrade.
