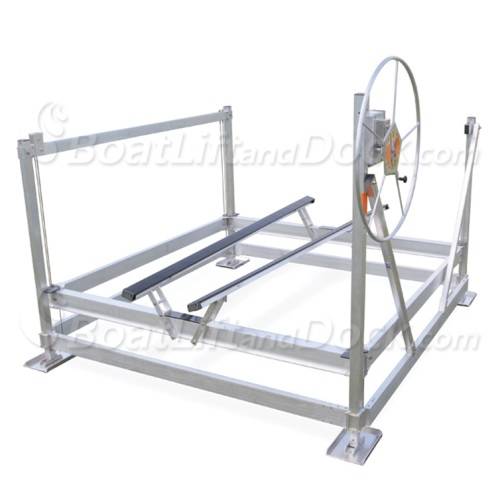

CRAFTLANDER MH-V60132 - 6,000 lb Capacity Vertical Boat Lift
The reliable and well designed vertical lifts by CraftLander offer many of the same features found in more expensive brand lines. The heavy-duty bolt-together aluminum construction provides superior environmental endurance and eliminates the need for aluminum welds while adding to the strength and stability of the lift.
This unit is available in either a 120" inside width or a 132" inside width. The MH-V60120 is the most popular 6K model and works for cruisers, wake, ski, deck, pontoons or tritoons with loaded weights less than 6000 and beam of up to 102". The MH-V60132 offers the same capacity with a little more width allowing for boats up to a 132" width. This boat lift can be custom configured for a wide variety of watercraft hull styles. Select from the above drop down options to custom configure this lift to your specific needs.
Vertical lifts by CraftLander offer many of the same features found in more expensive brand lines. The heavy-duty bolt-together aluminum construction provides superior environmental endurance and eliminates the need for aluminum welds while adding to the strength and stability of the lift. CraftLander lifts are easier to crank than most lifts on the market today due to their patented "Positive Drive Winch" that is chain driven with roller bearings. In contrast to many other lift brands that install generic third-party winches, CraftLander is one of the few manufacturers that custom designs their winch assemblies for their lifts. The 6,000 lb models have an 11:1 winch (22 turns or the wheel to 1 complete revolution of the drum) and raises about 1 inch every 2 turns of the wheel.
- 6,000 lb Max Lifting Capacity
- 132" Max Beam (inside width - upright to upright)
- Stainless Steel & Brass Fasteners
- Heavy Duty I-Beam Aluminum Lifting Platform
- Positive Drive Winch Assembly
- 60" Lift Height (actual cradle travel)
- Stainless Steel Lift Cables
- Drop V Side Frame for Easy Boat Entry
- 30" Telescoping Legs Standard
View Helpful Assembly Videos Here
This lift has been designed to be used in low and fluctuating water levels
. The 60" lift height gives you a lot of cradle travel to work with and keeps you from having to move the lift to shallow or deeper water.
The 30" telescoping legs
get you installed up to a 5.5-foot water depth. We can also provide longer legs and a bracing kit to get you in up to 10'' of water.
The large tapered pads or feet on this unit allow it to be moved across many different surfaces and lake bottoms without snagging or digging in. This is very helpful for seasonal installation and removal.
BUILD YOUR HOIST PACKAGE
This CraftLander Hoist can be equipped for virtually any watercraft style and a spectrum of lakefront conditions. With a wide variety of equipment accessories the unit can be configured to suit your needs. While choosing your hoist configuration, please review the following options that this unit can be configured with. These options are selected above and allow you to configure the new hoist to your needs.
This section provides a description of the various options that you can have this hoist equipped with. These options are selected above the "Add to Cart" button, which allows you to build the configuration that you want.
EXTENSION LEG OPTIONS
Freestanding Lifts such as this model utilize four, independently adjustable legs which are inserted into the corner columns of the hoist. When installed they allow you to adjust the height of the lift at each of the corners so that you can achieve a level plane across the hoist. Attached to each leg is a large base pad that will rest on the lake bottom.
STANDARD LEG - standard legs extensions include 30" legs, featuring a large foot pad for stability and locking pins for height adjustment these legs assure proper installation in a variety of water depths up to 5 feet.
DEEP WATER LEGS - Longer adjustable 72" leg extensions available for deeper water, featuring a large foot pad for stability and locking pins for height adjustment these legs assure proper installation in a variety of water depths up to 7-1/2 feet.
BOAT SUPPORT OPTIONS
This hoist can be equipped with a variety of support hardware options. The following options are designed for particular watercraft hull designs. Boat Support options include complete hardware kits that are mounted to the moving cradle of the lift and are contact and support your boat.
12' VINYL/ALUMINUM BUNKS - This configuration is well suited for single hull designs. This bunk configuration is well suited for Deep-V and Ski/Wake style watercraft. The Vinyl/Aluminum Bunk includes two individual aluminum extrusion bunk rails covered with a non-abrasive vinyl. These Bunks are maintenance free and do not trap lake sediment like older style carpeted lumber bunks.
PONTOON RACK – This configuration is typically used on Pontoons and in some cases with Tritoon boat designs. One of the most traditional systems used, the pontoon rack includes four vertical cradle mounted bracket assemblies. Once installed lumber boards are attached to the bracket assemblies which then act as a support surface your boat's under-deck. Pontoon rack systems such as this have been widely used for a number of years due to the basic design and user-friendliness.
DUAL VINYL/ALUMINUM PONTOON BUNKS - This configuration is well suited for Pontoon and some cathedral hull designs. The Dual Vinyl Aluminum Bunk kit includes two sets of aluminum extrusions bunk rails covered with a non-abrasive vinyl. The Vinyl/Aluminum Bunks are maintenance free and do not trap lake sediment like older style carpeted lumber bunks. When installed, each set of bunks are located to the exterior of the cradle and are designed to support the underside of toons.
TRITOON VINYL/ALUMINUM TRIPLE BUNK KIT - This configuration is well suited for Tritoons. Choose from either the 12' or 15' triple bunk sets. The Vinyl/Aluminum bunks are maintenance free and do not trap lake sediment like older style carpeted lumber bunks. When installed this system allows for the support of three toons.
LOADING GUIDE OPTIONS
Loading guides are optional accessories that can be added to your lift at any time. They are highly recommended for those in rough and windy areas or for inexperienced drivers. They are designed to assist with leaving and parking your boat, by providing a "guide" aid to keep you centrally located within the hoist frame.
FOAM POST CENTERING GUIDE - One of the most traditional centering guides, these are mounted at the four corners of the lifting platform this centering device provides four soft uprights posts that assist with keeping your watercraft centered on the hoist. Foam Post Guides are available in a set of two or four guides and are safe for virtually any watercraft style.
FULL LENGTH CARPETED SIDE GUIDES - Carpeted loading/centering guides consists of four heavy duty aluminum upright brackets that attach to the I-Beam of the hoist, of which support a carpeted lumber rails with steel reinforcement backer plates that span the full length of the hoist on both interior sides. The carpeted rails act as a centering guide for positioning on the hoist safely. This guide option is not recommended for watercraft with side hull decals. This guide if it comes in contact with decal stickers will cause damage to the decal.
MOTOR STOP OPTIONS
Motor Stops are another optional style of parking aid that are designed to help with parking a watercraft. Motor Stops help prevent "overshooting" the parking location. The Motor stop are not suitable for Wake and Ski Style watercraft with drive shaft prop and rudders
MOTOR STOP - Mounted to the stern end rack beam and assists with stopping your watercraft and prevents your boat from overrunning the lift.
This product requires LTL freight delivery or local pickup from our location. Product assembly is required. It is recommended that this unit is assembled by experienced contractors or those experienced in boat hoist assembly and installation. Improper assembly and maintenance may void factory warranties. It is important to review and examine all assembly/use instruction guides prior to operation. Assembly instructions and lift diagrams can be found under the "Spec" tab located at the top of this page.
