ShoreStation LTPM10010HS - 10,000lb FlexPower Piling Mount Hoist

Manufacturer: ShoreStation

Load Capacity: 10,000

Model: LTPM10010HS

Item Type: Lift - Piling

Lift Cradle Travel: 120

Typically Ships: 3 - 6 Weeks

Cradle Platform Selector
Boat Support Option Selector
Load Guide Option Selector
Power Option Selector
Lift Tube Hanger Selector
Hydraulic Hose Selector
QTY:
Our regular Price: $22,855.00
On Sale For: $21,025.00
Configuration Price: $21,025.00
OVERVIEW

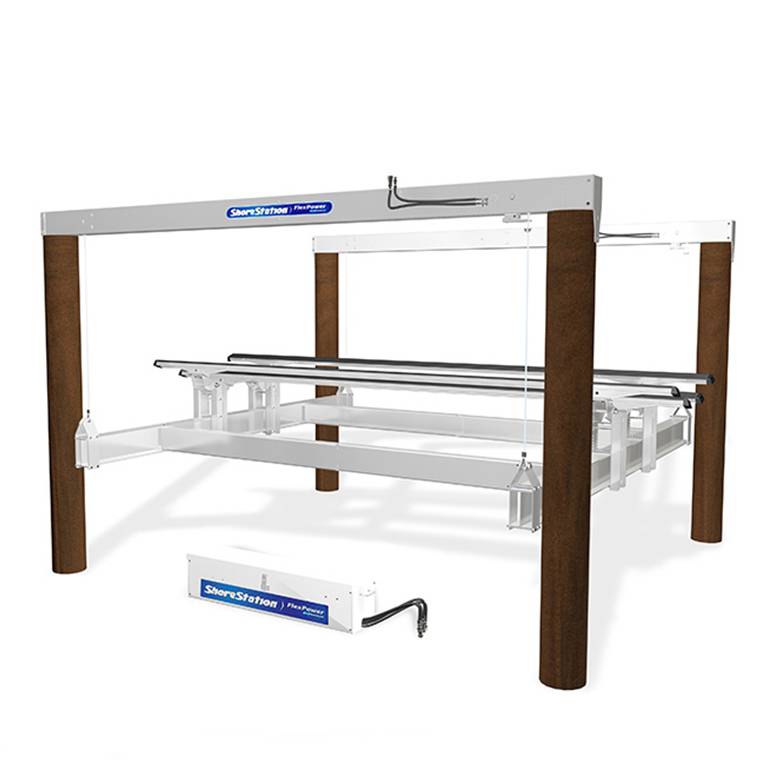

SHORESTATION LTPM10010HS - 10,000lb CAPACITY FLEXPOWER PILING MOUNT BOAT LIFT

FlexPower® 10,000 lb capacity piling mount lift is a safe, reliable and powerful hydraulic system that will lift your boat up to 8' in Less Than One Minute! FlexPower® was developed by ShoreStation and is the result of providing hydraulic and winch driven boat lifts to the marine market for over 15 years. The design of this system is the result of this experience and is the fastest, most robust lift system on the market. FlexPower®, by design, is immune to many of the conditions that exist in the harsh marine environment.

The system is designed to eliminate the hazard of underwater electric cables with FlexPower® Hydraulic power supply lines. The biodegradable hydraulic fluid is non-toxic*, protecting your family and aquatic life.



LTPM10010HS KEY FEATURES

  • Safe and Reliable DC Power
  • 10,000 lb Max Lifting Capacity
  • 10' Lifting Height (chain extensions available for extended travel)
  • Fully Raises Boat in Less than One Minute
  • One Touch Auto-Up Operation
  • Side to Side Synchronized Power Drives (auto leveling)
  • Convenient Wireless Remote and Dockside Switch
  • All Aluminum and Stainless Steel Structural Components
  • GARMAX® self lubricating sheaves
  • 15 Year Stainless Steel Cable Warranty



HYDRAULIC CABLE LIFTING PRINCIPLES FOR MARINE ENVIRONMENTS

Hydraulic Boat Lift Priority One: Smart Design!

Unique Tandem Hydraulic Design

With the simple push of a button the tandem hydraulic pump delivers equal volume to both cylinders, resulting in synchronized lifting that automatically keeps the lift platform level. Eliminating the need for dual motors or manual adjustment. In comparison to traditional piling mount hoists that use cable winders that over short periods of time cause cable fraying and break the ShoreStation hydraulic system utilizes hydraulic cylinders to pull cables over large diameter self lubricating pulleys. The use of the hydraulic cylinders rather than cable winders eliminates the possibility of cable overwind or unspooling. This allows ShoreStation to offer a industry leading 15-year cable warranty.

ShoreStation Piling Mount

Standard Piling Mount

Cables pulled not wound

Cables wound around pole or winch drum




Does Speed Matter? If so, the Shore Station piling mount lift provides an 8' lifting height in less than one minute. If you only need to raise your boat a few feet, it is up in 20 seconds. This is 4 to 5 times faster than conventional "gear plate" systems, which is very convenient when loading and lifting in windy weather or rough water conditions.

The system’s speed is the result of the battery’s ability to deliver large bursts of power to the power unit without creating a large demand on the power supply. Traditional A/C systems simply cannot reliably produce this speed without large, expensive A/C circuits.

The stainless steel chain extension creates the adjustment for the platform distance. The distance from the lift tubes to the platform will vary in every boat and boat lift installation. The chains provide 4’ of adjustment for this variation and can be ordered in longer lengths if needed.

FlexPower® is a unique power system that provides maximum power to the lift without costly electrical installations or modifications. The owner can use an existing 120V, 50 or 60 Hz, A/C circuit with the use of a battery tender to supply the system, or opt for the 20W, 24V DC solar panel. The FlexPower® system has its own list of advantages, with the use of a solar system the battery is constantly taking a charge during hours of sunlight. This provides the lift with the ability of 10-13 uses in one day.



BUILD YOUR HOIST PACKAGE



This unit can be customized in various ways to suit your application. The base unit includes two 199" LTPM10010HS hydraulic lift tubes, HPU300 hydraulic power unit enclosed in a powered coated aluminum housing, one dockside rocker switch, two wireless remotes with lockout switch, two battery boxes, wire harnesses and power cord.

This section provides description to the various options that you can have this hoist equipped with. These options are selected above the "Add to Cart" button, which allow you to build the configuration that you want.



ALUMINUM CRADLE PLATFORM: This unit can be supplied with your choice of two different cradle platforms. Choose from the two I-Beam Cradle designs.




Flat I-Beam 156"W x 164"L - PLF156-164 - All aluminum straight I-Beam front and rear cradle beams and front to back straight spreader tubes. Platform measures 156" wide by 164" long.



Flat I-Beam with Adjustable End-Mount Cable Brackets 168"W x 164"L - PLF168-164 - All aluminum straight I-Beam front and rear cradle beams with adjustable end-mount cable brackets and front to back straight spreader tubes. Platform measures 168" wide by 164" long.



BOAT SUPPORT OPTIONS This model can be equipped with two hull support options. Choose from a single or dual set of ShoreStation 15' Ultra Bunks



STANDARD 15' ULTRA BUNKS - HA-0194 - This configuration is well suited for single hull designs including flat bottom, round bottom, and deep-V hull designs. The Ultra Bunk includes two individual aluminum extrusion bunk rails covered with a non-abrasive vinyl. Ultra Bunks are maintenance free and do not trap lake sediment like older style carpeted lumber bunks.


DUAL 15' ULTRA BUNKS - HA-0194 -This configuration is well suited for Pontoon and some cathedral hull designs . The Dual Ultra Bunk kit includes two sets of 15'' aluminum extrusions bunk rails covered with a non-abrasive vinyl. Ultra Bunks are maintenance free and do not trap lake sediment like older style carpeted lumber bunks. When installed each set of bunks are located to the exterior of the cradle and are designed to support the underside of toons.



LOADING GUIDE OPTIONS: Loading guides are optional accessories that can be added to your hoist at any time. They are highly recommended for those in rough and windy areas or for inexperienced drivers. They are designed to assist with leaving and parking your boat, by providing a "guide" aid to keep you centrally located within the hoist frame.



148" GLIDEPOLE PILE POST GUIDE - HA-0190 Secured to your entrance pilings of your lift to provide a visual aid when centering and landing your boat on the lift.


10'' FRONT POST UPRIGHT GUIDES - HA0170 Only Compatible with Flat Cradle PlatformKeeps the boat''s bow centered when landing in high wind or waves. Mounts on the front or rear cradle tube to provide full adjustability for a perfect fit.



POWER OPTIONS: FlexPower® is a unique power system that provides maximum power to the lift without costly electrical installations or modifications. The owner can use an existing 120V, 50 or 60 Hz, A/C circuit with the use of a battery tender to supply the system, or opt for the 20W, 24V DC solar panel. The FlexPower® system has its own list of advantages, with the use of a solar system the battery is constantly taking a charge during hours of sunlight. This provides the lift with the ability of 10-13 uses in one day.



24V SOLAR CHARGING SYSTEM - This option will include a complete 24v solar charging panel with mounting hardware. This setup is designed for a two 12v batteries (batteries not included) that will provide power to your hoist. The solar charging kit when installed provides a trickle charge to the battery during hours of sunlight.





LIFT TUBE HANGER KITS: Hanger kits are use to secure each of the two hydraulic lifting tubes to your existing pilings. Hanger kits are available for mounting the lifting tubes to either the top or side of the existing pilings.



TOP MOUNT HANGER KIT - This option will include a four piece hanger bracket kit designed to secure the lifting tubes to the top face of existing pilings. Brackets are supplied with stainless and brass fasteners.


SIDE MOUNT HANGER KIT - This option will include a four piece hanger bracket kit designed to secure the lifting tubes to the side of existing pilings. Brackets are supplied with stainless and brass fasteners.



HYDRAULIC EXTENSION HOSES: One of the unique features of this hoist is that the hydraulic motor and pump system can be stored in a location of your choosing. Once your location for the motor and pump is decided, then it just a matter of connecting your hydraulic hoses to the pump and the lifting tubes. ShoreStation offers various standard length hoses that are fitted and ready for quick connection. Each hose kit includes two hoses of your choice in length. Choose from 5'', 10'', 15'', 20'', 40'' or 60'' hose sets.



ADDITIONAL INFORMATION

This product requires LTL freight delivery or local pickup from our location. Product assembly is required. It is recommended that this unit be assembled by experienced contractors, or those experienced in boat hoist assembly and installation. Improper assembly and maintenance may void factory warranties. It is important to review and examine all assembly/use instruction guides prior to operation.

© BoatLiftandDock.com

SPECIFICATIONS
Manufacturer: ShoreStation
SKU: LTPM10010HS-HPU300
Base Group
Product MPN: LTPM10010HS & HPU300
General
Load Capacity: 10,000
Model: LTPM10010HS
Item Type: Lift - Piling
Assembly Required: Yes
Lift Design
Operation: Hydraulic
Watercraft Style: Pontoon, Single Hull, Tritoon
Lift Design: Hydraulic, Piling
Hydraulic Cylinder(s): Two
Hydraulic Principle: Retract to lift
Frame Specs
Lift Cradle Travel: 120
Cradle Style: I-Beam
Frame Material: Aluminum
Fasteners: Stainless/Brass Combo
Cable Specs
Cable Material: Stainless Steel
Winch Specs
Lift Operation: Hydraulic
Application Suggestions
Watercraft Weight (Wet): 6,900 - 7,900, 7,900 - 8,900, 8,900 - 9,900
Shipping Information
Typically Ships: 3 - 6 Weeks
Shipping Method: LTL Freight
Manufacturer Details
Warranty-Structure: 15
Warranty-Cables: 15
Warranty-Hydraulics: 2
Warranty Information
Warranty-Electronics: 2
Return Policy
Restocking Fee: Yes
