MaxStand 9' - 12' Wide "Standard" Hidden Support System

Manufacturer: Max Dock

Typically Ships: 7-14 Business Days

Model: MST009-012

Series: MaxStand

Min Height: 22" with Shorty

Item Type: Dock - Leg Stand

Select Support Style
Select Leg Length
QTY:
Base Model Regular Price: $499.00
Configured Price: $499.00
OVERVIEW

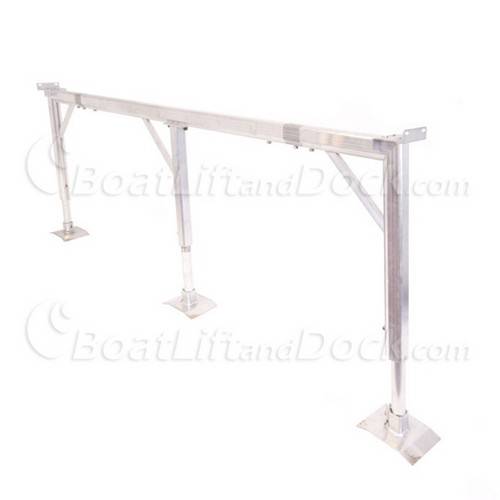

MAXSTAND 9' - 12' "STANDARD" ADJUSTABLE HIDDEN UNDER-DOCK SUPPORT WITH A-FRAME STANCE

The Under Dock Support with A-Frame Stance is hidden from the top of the dock and provides great stability.  The deeper the water, the wider the stance which creates a more stable dock in comparison to traditional H-Frame style supports.  Under dock supports create a more aesthetically pleasing look, when installed there are no posts above the walking surface as you find with other support styles.



KEY FEATURES

  • Adjustable from 9' - 12'
  • Stand Ends with Stringer Brackets (2)
  • 63" Center Crossmember Section - (2)
  • 48" Extension Tubes - (2)
  • 1/2" stainless bolt and brass nut leg adjuster - (2)
  • Telescoping Leg post - (3)  (Optional Leg Lengths available)
  • 7" x 12" Angled Base Pad - (2)
  • 7" x 7" Standard Base Pad (center) - (1)




SUPPORT DESCRIPTION


  • STRINGER BRACKETS - This is where your dockside stringer will sit and has holes to fasten the dock section to the support.
  • SPACER - This is used to place under the side stringer of a dock if it happens to line up over the Extension tube so the dock remains level. This spacer can be moved across the Extension tube anywhere it needs to be located.
  • CENTER CROSSMEMBER - This portion of the support uses the same extrusion as the Stand Ends and work as the main central support for the stand.
  • EXTENSION TUBES - These tubes slide into the Center Crossmember and Stand Ends and allow for the width adjustment. A simple 1/2" stainless bolt and brass nut are used on the Center Crossmember and Stand End to tighten up the Extension Tube at a given width.
  • STAND END - These are the two angled ends of your support and included a 45° brace and the Stringer Bracket. This assembly also has two 1/2" stainless bolt and brass nut Leg and Extension Tube with adjusters.
  • LEG POST AND BASE PAD - Included, but not pictured.




AVAILABLE SUPPORT STYLES


    STANDARD 9' - 12' MAXSTAND SUPPORT - This option includes the stand itself with 30" legs, three 36" telescoping posts, center support and three base pads (2 outside and 1 center). The combination of the 30" legs and the standard 36" posts give this stand 56" of vertical height. Longer legs can be added.

    "SHORTY" 9' - 12' MAXSTAND SUPPORT - The ''Shorty'' is used for shallow water applications and the stand comes with 20" legs, 18" posts, three base pads and also includes center support. The combination of the 20" legs and the 18" posts give this stand a 38" max height. The lowest it can get is 22" off the lake bottom. If you need shorter supports, you can bury the feet to reduce the height or use a MaxLoc or Traditional Support instead.

    ''T'' & ''L'' 9' - 12' MAXSTAND SUPPORT - This support is designed to create a ''T'' or an ''L'' design with your platform. One end of the support has a standard leg and the other end is set up to attach directly to the cross member of the last MaxStand and use it to support that end. This stand includes the TL stand with 30" leg(1), center support, two 36" leg posts, two base pads and the T&L hardware.




ADDITIONAL INFORMATION

  • Tracking information will be provided via email when the shipper catalogs the pick-up.
  • You can estimate your shipping charges by adding the item to your cart and entering your zip code into the shipping calculator.
SPECIFICATIONS
Manufacturer: Max Dock
SKU: 66-11315
Base Group
Product MPN: 66-11315
Shipping
Typically Ships: 7-14 Business Days
Shipping Method: UPS/FedEx
Support Spec
Adjustable Leg Size: 36"
Includes Legs: Yes
Leg Adjustment Style: Bolt & Jam Nut
Model
Model: MST009-012
Series: MaxStand
Frame Spec
Frame Material: Aluminum
Quick Info
Design: A-Frame Support
Style: Platform Under Dock
Min Height: 22" with Shorty
Max Height: 56" with Standard or T&L
Fasteners: Stainless/Brass Combo
Middle Legs: Yes
Item Type: Dock - Leg Stand
Material: Aluminum
Part Type: Dock Support
Designed to Fit: 108" to 144" Wide
Accessory Type: A-Frame Platform Support
Applications
Mounting: Bolt On
Fits Post Size: 2" OD
Dimensions
Foot Pad Size: 7.5" x 10"
Stringer Distance Adjustable: Yes
Leg Post Length: 36"
Manufacturer Info
Manufacturer Website: www.maxdock.com
