Lift Tech Marine DC 12v/24v Key Operation Lift Motor LT-DCM100

Manufacturer: Lift Tech Marine

Product MPN: LT-DCM100

Dimensions: 18x18x8

Load Capacity: 7,000

Item Type: Lift - Motors

Model: LT-DCM100

Select Lift Brand
Accessory Option
QTY:
On Sale For: $749.00
OVERVIEW

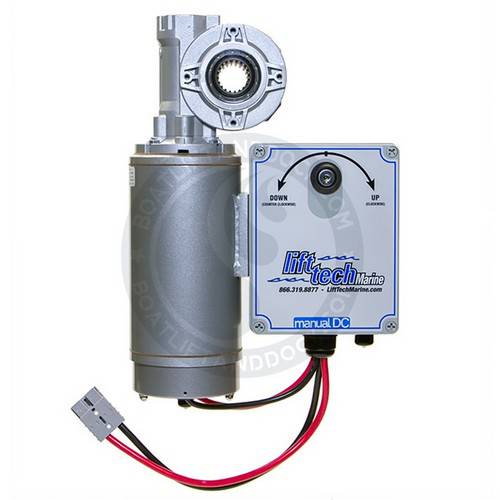

Lift Tech Marine DC 12v/24v Key Operation Boat Lift Motor

Tired of cranking your lift? The Lift Tech Marine model LT-DCM100 key switch operated 12v OR 24v powered direct drive boat lift motor is a great solution to that problem. Easy and quick to install, Lift Tech Marine motor units available in AC and DC power options are packed with design features not found with competitors.

Designed to fit a majority of manual operation freestanding lift manufacturers, this unit allows you to eliminate the hassle of turning that old round turn wheel. Once the Lift Tech motor is installed, it allows you to operate your boat hoist with the turn of a key or by the use of an optional corded push button pendant.



KEY FEATURES

  • Equipped with Soft Start and Power Indicator LED
  • Low Maintenance
  • Backwind and Upper Amp Limit Sensor Protection
  • Runs on 12 volt OR 24 volt DC
  • Designed and built to handle the elements, motor cover not required.
  • Heavy duty multi-tooth spline for a stronger connection to winch
  • Works on freestanding mechanical lifts up to 7000 lb. capacity
  • Easy and quick installation
  • 38 to 42 RPM on 12v system / 78 to 82 RPM on 24v system
  • Optional Push Button Pendant can be added at any time to key switch models
  • Backup Bit for manual operation of the unit in the event of a power outage or system malfunction
  • 2 Year Warranty against manufacturer defects on all Lift Tech Marine motors.



SHOULD I DO 12V or 24V?

This motor allows either 12v DC (single battery) OR 24v (two batteries in series) to be used to power the unit. Both options do the job, but the use of 24v actually doubles the speed of the motor and shortens the lift time. We put together a video below to show the difference below the two. With the motors, it does not matter if you decide to go 12v or 24v until you get the motor, BUT if you are purchasing a solar kit, you will need to determine how it is powered prior to ordering a kit. The 12v and the 24v power options will require different solar panels.

Lift Tech Marine Motor Units offered by BoatLiftandDock.com are of the most recent model revision. Featuring the most up-to-date safety and design features including soft start, and backwind/overwind amp limit sensors of which are not found on other aftermarket lift motor options.



INCLUDES

  • LT-DCM100 Power drive unit
  • Choice of installation mounting hardware
  • Backup Bit
  • 2 Keys



Installation Hardware Kits- Lift Tech offers a variety of hardware installation kits specifically designed for certain boat lift manufacturers. Hardware kits allow for the motor unit to attach to an existing mechanical reduction winch assembly. Lift Tech direct drive motors fit a majority of both new and old freestanding hoist manufacturers. During checkout please specify the brand of lift or winch model the motor will be installed on.

Fits Following Lift Brands - ShoreStation, Hewitt, Beach King, CraftLander (NuCraft), Daka, Dock Rite, Dutton Lainson 1200B, Dutton Lainson 2500/3500, Dutton Lainson B1200A, Dutton Lainson B1500A, Great Lakes Lift, Harbor Master, Lakeshore Products, Lakeside, Metal Craft, Newman, Northern Lights, Pier Pleasure, Port-A-Dock, RGC, ShoreMaster, ShoreMaster Whisper Winch, ShoreMaster Whisper Winch 2, ShoreMate, Summit, Feighner, Ridgeline and Vibo winch types.



ADDITIONAL INFORMATION

  • Product ship UPS usually within 1 to 3 business days.



© 2010 to BoatLiftandDock.com

SPECIFICATIONS
Manufacturer: Lift Tech Marine
SKU: LT-DCM100
Base Group
Product MPN: LT-DCM100
Dimensions: 18x18x8
Quick Info
Load Capacity: 7,000
Operation: Key Switch
Design: Direct Drive
Style: Direct Drive
Mount Style: Winch Box
Optional Accessory: Installation Hardware Kit Included
Item Type: Lift - Motors
Part Type: Lift Motor
Accessory Type: Freestanding Lift Motor
Mounting Hardware Kit: Included
Model
Model: LT-DCM100
Motor Spec
Motor Type: Direct Drive - replaces large wheel on lift
Power Type: DC
Battery Type: 12V or 24V
Power Loss Backup: Back Up Bit that can be used with a drill to raise and lower lift
Power Requirement: DC 12V
Returns
Restocking Fee: Yes
Return for refund within:: 30
Shipping
Typically Ships: 1 - 3 Business Days
Shipping Method: UPS/FedEx
Warranty
Warranty: 2 Year Manufacture Warranty
Manufacturer Info
Manufacturer Website: lifttechmarine.com
Manufacturer Support Phone:: 1-866-319-8877
