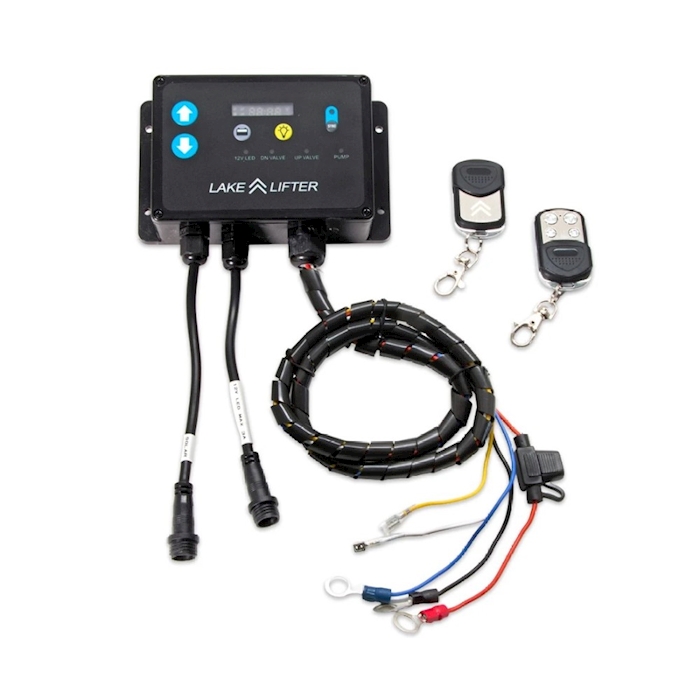

Lake Lifter 12/24V Hydraulic Boat Lift Controller with Solar Regulator
The Lake Lifter Hydraulic Boat Lift Controller combines wireless lift operation, solar charging, battery monitoring and LED light control in one streamlined unit. Its selectable configuration allows the same controller to operate with compatible 12V or 24V hydraulic boat lift systems.
An integrated RF receiver allows compatible key-fob transmitters to raise and lower the lift remotely. The controller also features an integrated 12V/24V solar charge regulator, a digital battery display and a dedicated 12V LED output. Consolidating these functions into one controller reduces the number of separate components and wiring connections required around the hydraulic power unit.
Key Features
- Selectable operation for compatible 12V or 24V hydraulic lift systems
- Integrated RF receiver for wireless key-fob operation
- Integrated 12V and 24V solar charge regulator
- Digital LCD display showing battery percentage and voltage
- Battery connection and charging indicators
- Solar connection and charging indicators
- Visual indicators for pump, up-valve and down-valve operation
- Low-voltage solenoid protection
- Dedicated 12V LED output, including when configured for a 24V system
- User-adjustable automatic light shutoff timer
- Lake Lite quick-connect plugs for solar, battery and LED wiring
- Weather-resistant controller enclosure for waterfront use
Integrated Battery and Solar Monitoring
The digital display provides battery information directly at the controller. Press the battery button to view the battery's remaining charge percentage and current voltage. Separate battery and solar icons confirm the connection status, while the charging indicators make it easier to monitor the solar charging system.
Hydraulic Lift Controls
The controller includes clearly marked UP and DN buttons for local operation of the boat lift. Individual indicator lights show when output is being applied to the pump solenoid, up valve and down valve, helping the operator confirm controller activity and troubleshoot the system.
12V LED Light Control
A dedicated 12V output allows the controller to operate compatible LED lighting. The lighting output remains 12V even when the controller is configured for a 24V hydraulic system. A user-adjustable automatic shutoff timer helps prevent the lights from being left on unnecessarily.
Wireless Key-Fob Management
Compatible wireless key fobs can be paired directly from the controller. A short press of the SYNC button places the controller into pairing mode for a new key fob, while a long press removes all previously paired key fobs.
Compatibility Information
This controller is designed for compatible 12V or 24V DC hydraulic boat lift systems. Hydraulic power units can differ in their pump-solenoid wiring, valve configuration, connectors and operating requirements. Confirm the existing system voltage and connection requirements before ordering.
The Lake Lite quick-connect feature applies to compatible Lake Lite solar, battery and LED connections. It does not necessarily make the controller a plug-and-play replacement for every brand or generation of hydraulic power unit.
If you are uncertain about compatibility, please provide the boat lift manufacturer and model, hydraulic power-unit information, system voltage and clear photographs of the existing controller, wiring connections, solenoid and valve assembly.
Installation Notice
Disconnect the batteries and solar charging system before beginning installation. Installation should be completed by a qualified person familiar with DC electrical systems and hydraulic boat lift controls. Follow all instructions supplied by the manufacturer.
