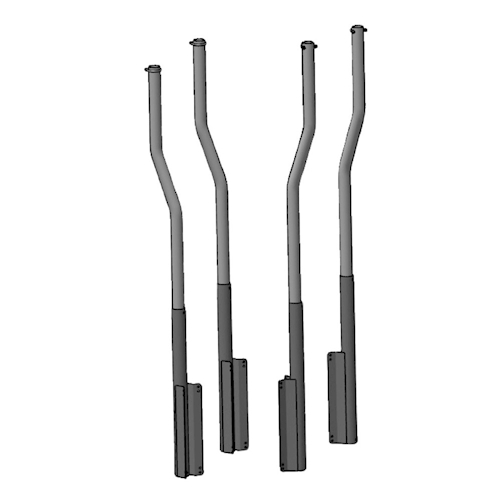

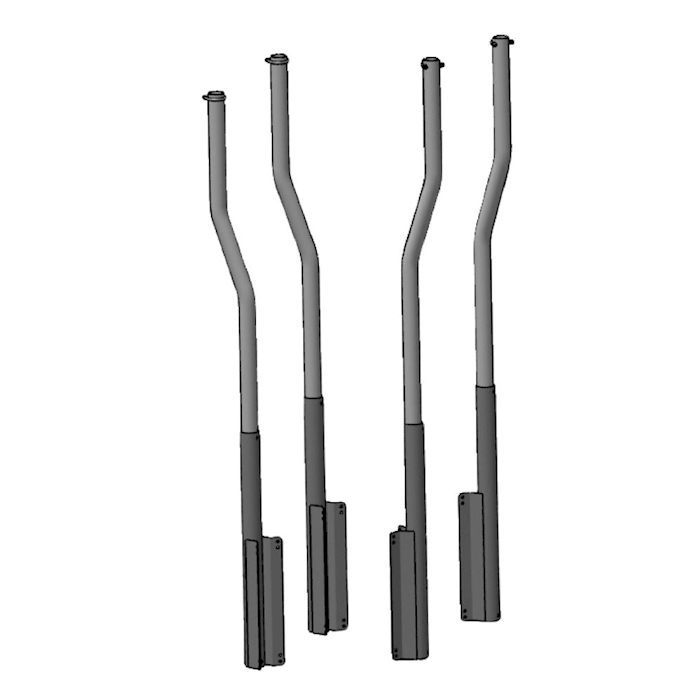

ShoreStation HA0304 Offset Canopy Post Bundle
The ShoreStation HA0304 Offset Canopy Post Bundle (Offset Canopy Leg Kit) is designed to help align a ShoreStation Revolution canopy system when dock pilings are not ideally positioned. This offset leg design allows installers to adjust canopy leg placement at the piling to achieve proper port-to-starboard canopy leg spacing and support ShoreScreen-compatible installations.
Key Features
- Offset adjustment at pilings to help match required canopy leg spacing for Revolution canopy systems.
- Rotational positioning around round pilings for fine-tuning alignment during install.
- Flexible mounting height—brackets can be placed at any height on the piling.
- Helps support installations where maintaining ShoreScreen clearance is required (the Revolution piling spec notes a max piling dimension that leaves 5" of clearance on each side between the piling and ShoreScreen).
Installation Notes
- Designed for round pilings.
- Piling attachment fasteners are not included, as applications and piling materials vary. Select fasteners appropriate for your dock structure and installation requirements.
- When installing the canopy posts into the post brackets, use the offset to match the port-to-starboard dimension of the canopy being attached. (Bow-to-stern leg spacing is adjustable on the Revolution canopy frame.)
- Final positioning is secured after alignment is confirmed (includes drilling through the canopy leg during final securement).
What’s Included
- Offset canopy leg tubes/posts
- Piling-mount offset brackets
- Hardware for leg/bracket assembly (per manufacturer kit contents)
- Note: Fasteners used to attach brackets to pilings are not included.
Compatibility Disclaimer
Compatibility: This bundle is intended for use with ShoreStation Revolution canopy systems. Proper fit depends on your existing canopy size and piling spacing. Revolution canopy sizing is based on outside-to-outside piling dimension, and ShoreScreen-compatible installs require proper spacing to maintain clearance. We recommend verifying your piling spacing and canopy configuration prior to ordering.
If you are unsure which canopy size or leg spacing applies to your setup, contact us with your outside-to-outside piling measurement and canopy width so we can help confirm fit.
