Aluminum Dock Stair with Handrail - 5 Step 36" Wide

Manufacturer: Max Dock

Item Type: Dock - Stairs

Stair Width Option
Choose Decking Color
Handrail Selector
Optional Back Leg Kit
QTY:
Price: $689.00
OVERVIEW

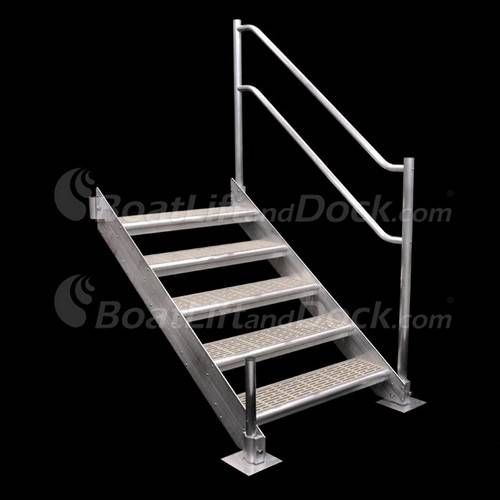

5 STEP ALUMINUM DOCK STAIR

These 5 Step Aluminum Dock Stairs are the best-looking step system on the water and offers a safe and comfortable way to access the water from your dock, seawall or boardwalk.  These marine stairs feature an all aluminum framework construction and utilize an anti-slip, anti-algae and barefoot friendly features of Titan Classic grated decking for the step surface in either tan or gray colored tread.



STANDARD FEATURES

  • Choose either 36" or 48" Step Width
  • 5 Anti-Slip Steps with Aluminum Bullnose
  • Aluminum, Stainless and Titan Decking construction
  • Single Handrail standard on all 5 step models. A dual handrail is available
  • Stainless steel fastening hardware
  • Step surface available in two colors Tan and Gray
  • 18" Adjustable Front Legs
  • Upper and Lower Handrail Bar



The combination of the well-designed aluminum framework and utility of the Titan Classic decking; creates a rugged, durable, and adjustable dock stair that will provide you with years of trouble-free use.  In comparison to dock steps that use an aluminum step surface, the Titan Classic steps provide superior 360-degree anti-slip step surface that is more resistant to algae growth and is very comfortable on the feet.

All 5 step models include a single handrail.  You do have the option to add a handrail so there is one on both sides.  Every stair also comes standard with the necessary support hardware to attach the stair to a dock, seawall, pier, or other stable and sturdy mounting location.  It is recommended for those that do not have a solid mounting surface for the top of the stair to connect to, that they consider adding the optional Back Leg Kit.  The optional Back Leg Kit transfers less force to the top mounting surface and allows for a more self-supported configuration for the steps.  The kit comes standard with 5 legs with base pads and an X-brace.



DETERMINING STEP HEIGHT

The 5 Step would work well with a vertical distance of 41" to 46".  This would keep the steps level and the step height for the first and last step similar.  We do get a lot of contacts inquiring how to determine the number of steps in a given location.  We have provided steps below you can follow to help determine the correct number of steps for your installation.

  1. Measure from the ground to top of the dock, seawall or walking surface.  You will need to account for the depth where the bottom of the step will sit.  You will need a straight vertical measurement, do not measure at an angle.
  2. Divide the number you get in inches by 7 (the rise of each step).
  3. Now subtract 1 for the step up onto your dock, seawall or walking surface.
  4. This gives you the number of steps needed for your installation.  If the number ends up being right in the middle like 4.5, then you will need to decide if going with a 4 or a 5 step would be best for your installation.  Remember the stairs have 18" adjustable legs on the bottom.



We hope this helps.  If you need further assistance, please do not hesitate to contact us.



OPTIONAL FEATURES

  • Back Leg Kit or dockside legs to help keep the weight of the stair off the dock
  • Second Handrail for more security walking up and down the stairs



ADDITIONAL INFORMATION

  • 2 step stairs systems through 6 step stairs systems ship UPS ground and require 1 handrail but can have a 2nd handrail added.
  • Ships out in 3 - 5 business days and takes 1 - 3 days in transit.
  • Tracking information will be provided via email when the shipper catalogs the pick-up.
  • You can estimate your shipping charges by adding the item to your cart and entering your zip code into the shipping calculator.
SPECIFICATIONS
Manufacturer: Max Dock
SKU: MS_ADS_5x36
Shipping
Typically Ships: 3 - 5 Business Days
Shipping Method: UPS/FedEx
Product Information
Adjustable Leg Size: 18
Frame Material: Aluminum
Steps: 5
Mounting: Face or Deck Mount
Step Width: 36" Step Width
Min Height: 40
Max Height: 46
Step Surface: Titan Classic
Handrail: Dual (optional)
Front Adjustable Legs: 18
Angle Adjustability: Fixed Angle
Mount Style: Bolt-on
Fasteners: Stainless Steel
Step Depth: 10
Rear Legs: Optional
Foot Pad Size: 7.5 x 7.5
Accessory Type: Dock Stair
Step Riser Height: 7"
Warranty
Restocking Fee: Yes
General
Item Type: Dock - Stairs
