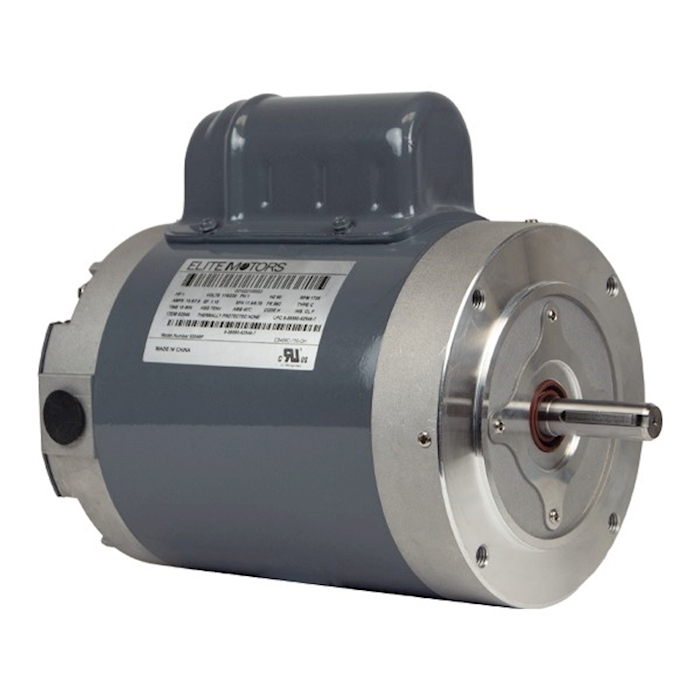

1 HP Elite IP44 Electric Motor
The 1 HP Elite IP44 Electric Motor is a single-phase, dual-voltage motor designed for boat lift applications. Featuring a standard 56C C-Face mount, it is compatible with most enclosed worm gear reducers commonly used on boat lifts. Unit replaced previous model version 93059
This motor is built with a painted rolled steel housing and corrosion-resistant aluminum end plates. A heavy-duty marine-grade gasket on the capacitor housing helps keep out water and dust. Wiring is straightforward using standard yellow T-wires, and the motor works with all known drum switches and boat lift remotes.
Compatibility
Engineered to integrate seamlessly with a wide range of enclosed hoists, including:
- BH-USA A-Drive and E-Drive
- AMS A-Drive and E-Drive
- Golden C-Drive
- Most enclosed hoists used by various lift manufacturers
Includes detailed wiring instructions compatible with Breams and Salzer drum switches for smooth setup. Also compatible with remote control systems from GEM, Galaxy, TEC, and Elite.
Specifications
- Power: 1 Horsepower (HP)
- Voltage: 115V / 230V Dual Voltage
- Amps: 15.6A @ 115V / 7.8A @ 230V (up to 17.5A or 8.75A max surge)
- Speed: 1725 RPM
- Frequency: 60 Hz
- Frame: 56C
- Service Factor: 1.15
- Max Ambient Temp: 40°C (104°F), rated for up to 15 minutes
- Enclosure: Totally Enclosed Non-Ventilated (TENV)
- Code: H
- Insulation Class: F
- Certifications: UL Recognized, C-UL-US
When wiring or rewiring electrical components, WE recommend hiring a licensed electrician.
