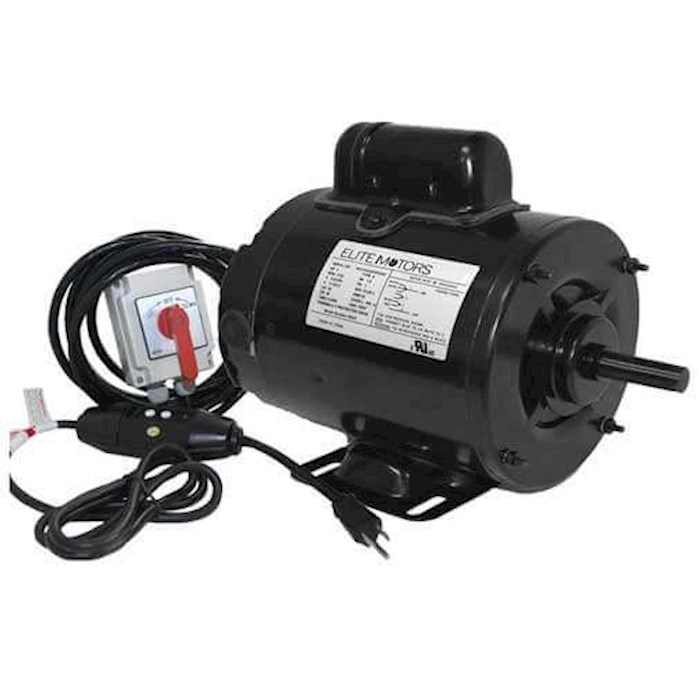

Elite 1 HP Painted 56 Frame Boat Lift Motor – Wired Kit

The Elite 1 HP Painted Boat Lift Motor – Wired Kit is a complete, ready-to-install solution designed for flat-plate style, belt-driven boat hoists. Operating at 1725 RPM with a maximum recommended runtime of 15 minutes, this standard-duty motor provides dependable lifting performance for residential boat lift applications.

Motor Features

• 1 HP electric motor with painted steel housing
• Totally Enclosed Non-Ventilated (TENV) design helps protect against dirt, moisture, and insects
• 56 frame, foot-mounted base fits most flat-plate style hoists
• Single-phase operation
• Dual-voltage capable (115V or 230V)
• 5/8" output shaft diameter
• UL Listed and CSA Approved

Included Components

This wired motor kit includes:

• 2" aluminum motor pulley
• Momentary/spring-loaded Boat lift control switch
• Pre-wired GFCI wiring harness with 14/5 SJTW control cable
• In-line GFCI positioned approximately 4.5" from the plug

The plug style and GFCI configuration supplied with the wiring harness correspond to the selected motor voltage.

Compatibility & Applications

The welded base is compatible with standard flat-plate gear mounting patterns commonly found on belt-driven boat hoists. This motor is frequently used with hoists manufactured by Boat Hoist USA, ACE Labs, American Power Hoist, AMS, and Hefty Hoist.

The motor includes easy-to-follow wiring diagrams and is compatible with Breams and Salzer drum switches. It also integrates seamlessly with remote control systems from GEM, Galaxy, TEC, and Elite. Performance is equivalent to Leeson boat hoist motor part number 6439191252.

Important: This motor is not compatible with direct-drive hoists.

Electrical Specifications

• Horsepower: 1 HP
• Speed: 1725 RPM
• Voltage: 115V or 230V
• Amperage: 12.57A @ 115V / 6.29A @ 230V
• Frequency: 60 Hz
• Frame Size: 56
• Service Factor: 1.0
• Insulation Class: B
• Duty Rating: 15 minutes maximum runtime
• Maximum Ambient Temperature: 40°C
• Enclosure: TENV (Totally Enclosed Non-Ventilated)
• UL / C-UL-US Recognized

Safety

Warning: All wiring or rewiring of this motor should be performed by a licensed electrician.

What Is a TENV Motor?

A Totally Enclosed Non-Ventilated (TENV) motor is designed to prevent dust, debris, and moisture from entering the motor housing. Because it does not rely on external airflow for cooling, a TENV motor is well-suited for marine and outdoor environments where exposure to the elements is common.
