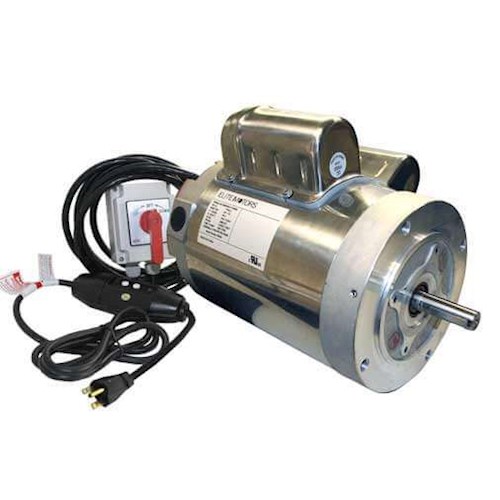

Elite 1 1/2 HP Stainless Steel Direct Drive Boat Lift Motor – 220V Wired
The Elite 1.5 HP Stainless Steel Direct Drive Boat Lift Motor is a heavy-duty, corrosion-resistant motor designed for direct-drive boat lift systems. Operating at 1725 RPM with a maximum recommended runtime of 15 minutes, this motor mounts directly to compatible gearboxes using a C-Face flange, eliminating the need for belts, pulleys, or flat-plate mounting.
Motor Features
- 1.5 HP electric motor with stainless steel housing for superior corrosion resistance
- Aluminum end plates with a marine-grade gasketed capacitor housing to help keep out moisture and debris
- Totally Enclosed Non-Ventilated (TENV) design protects internal components from dirt, insects, and moisture
- 56C C-Face mounting for direct-drive gearbox applications
- Single-phase operation
- Dual-voltage capable (115V / 230V)
- Factory wired for 220V operation
- 5/8" output shaft diameter
- UL Listed and CSA Approved
What’s Included
This motor is supplied as a wired package and includes a GFCI wiring harness and boat lift control switch. Wiring uses standard yellow T-leads and includes a cross-reference wiring chart for Leeson Electra Gear motors.
Detailed installation and wiring instructions are included and are compatible with Elite, Bremas, and Salzer drum switches.
Compatibility & Applications
This baseless motor mounts directly to standard C-Face and C56 flange gearboxes, including A-Drive and E-Drive systems. It is compatible with direct-drive boat lifts from manufacturers such as Boat Hoist USA (BH-USA), Golden Lift (Sea-Drive), AMS Hefty Hoist, Deco Lifts, Hi-Tide Lifts, Neptune Lifts, and Hurricane Boat Lifts.
The motor is fully compatible with GEM, Galaxy, TEC, and Elite boat lift remote control systems and provides performance equivalent to Leeson boat hoist motor part number 6439191252.
Important: This motor is not compatible with flat-plate, belt-driven hoists.
Electrical Specifications
- Horsepower: 1.5 HP
- Speed: 1725 RPM
- Voltage: 115V / 230V (factory wired for 220V)
- Running Amperage: 15.4A @ 115V / 7.7A @ 230V
- Service Factor Amps (SFA): 17.6A @ 115V / 8.8A @ 230V
- Frequency: 60 Hz
- Frame Size: 56C
- Mounting Type: C-Face (Type C)
- Service Factor: 1.15
- Insulation Class: F
- Duty Rating: Maximum 15-minute runtime
- Maximum Ambient Temperature: 40°C
- Enclosure: TENV (Totally Enclosed Non-Ventilated)
- UL / C-UL-US Recognized
Safety
Warning: All wiring or rewiring of this motor should be performed by a licensed electrician.
What Is a TENV Motor?
A Totally Enclosed Non-Ventilated (TENV) motor is sealed to prevent dust, moisture, and debris from entering the motor housing. Because it does not rely on external airflow for cooling, a TENV motor is ideal for marine and outdoor boat lift applications.
