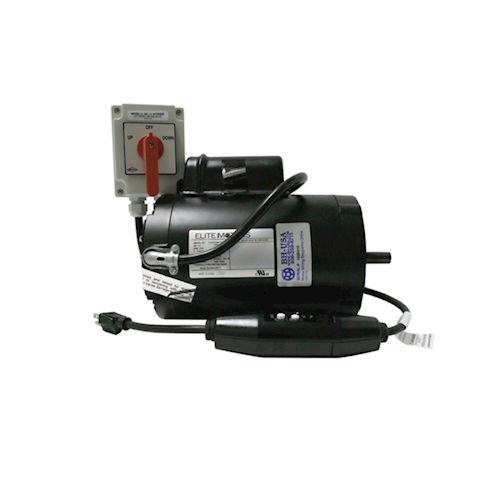

Elite 1.5 HP Painted 56C Frame Direct Drive Boat Lift Motor – 220V Wired Kit
The Elite 1.5 HP Painted Direct Drive Boat Lift Motor – 220V Wired Kit is a complete, ready-to-install motor package designed specifically for direct-drive boat lift systems. Operating at 1725 RPM with a maximum recommended runtime of 15 minutes, this standard-duty motor mounts directly to compatible gearboxes using a C-Face interface, eliminating the need for belts, pulleys, or flat-plate mounting.
Motor Features
- 1.5 HP (1 1/2 HP) electric motor with painted steel housing
- Totally Enclosed Non-Ventilated (TENV) design protects against dirt, moisture, and insects
- 56C C-Face mounting for direct attachment to gearboxes
- Compatible with multiple direct-drive systems, including Golden and Boat Hoist USA (BH-USA)
- Single-phase operation
- Factory-wired for 220–230V (dual-voltage capable)
- 5/8" output shaft diameter
- UL Listed and CSA Approved
Included Components
This wired motor kit includes:
- Maintained/lock-on Boat lift control switch
- Pre-wired GFCI wiring harness with 14/5 SJTW control cable
- In-line GFCI positioned approximately 4.5" from the plug
The plug style and GFCI configuration supplied with the wiring harness are matched to the 220V motor setup.
Compatibility & Applications
This motor is designed to mount directly to gearboxes such as A-Drive and E-Drive style units using its C-Face flange and aluminum end bell. It is intended exclusively for direct-drive boat lift systems that require higher torque and simplified mechanical layouts.
The motor includes easy-to-follow wiring diagrams, color-coded T-leads, and a cross-reference wiring chart for Leeson Electra-Gear motors. It is compatible with Breams and Salzer drum switches and integrates with remote control systems from GEM, Galaxy, TEC, and Elite.
Important: This motor is not compatible with flat-plate, belt-driven hoists.
Electrical Specifications
- Horsepower: 1.5 HP (1 1/2 HP)
- Speed: 1725 RPM
- Voltage: 220–230V
- Amperage: 10.0A @ 230V
- Frequency: 60 Hz
- Frame Size: 56C
- Mounting Type: C-Face (Type C)
- Service Factor: 1.0
- Insulation Class: B
- Duty Rating: 15 minutes maximum runtime
- Maximum Ambient Temperature: 40°C
- Enclosure: TENV (Totally Enclosed Non-Ventilated)
- UL / cRUus Recognized
Safety
Warning: All wiring or rewiring of this motor should be performed by a licensed electrician.
What Is a TENV Motor?
A Totally Enclosed Non-Ventilated (TENV) motor is designed to prevent dust, moisture, and debris from entering the motor housing. Because it does not rely on external airflow for cooling, TENV motors are well-suited for marine and outdoor environments where exposure to the elements is common.
