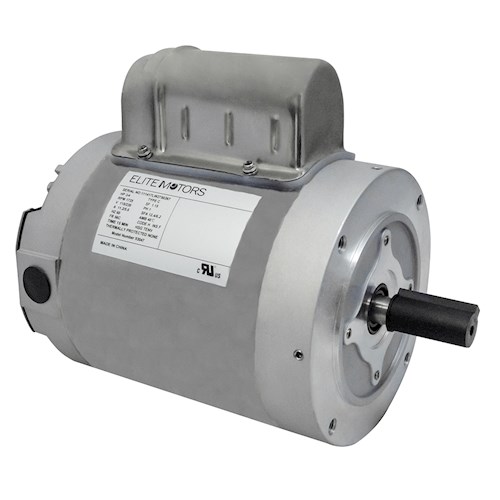

Elite 3/4 HP Stainless Steel 56C Frame Direct Drive Boat Lift Motor
The Elite 3/4 HP Stainless Steel Direct Drive Boat Lift Motor is a corrosion-resistant, standard-duty electric motor designed specifically for direct-drive boat lift systems. Operating at 1725 RPM with a maximum recommended runtime of 15 minutes, this motor mounts directly to compatible gearboxes using a C-Face flange—eliminating the need for belts, pulleys, or flat-plate mounting.
Motor Features
- 3/4 HP electric motor with stainless steel housing for superior corrosion resistance
- Aluminum end plates with marine-grade gasketed capacitor housing
- Totally Enclosed Non-Ventilated (TENV) design protects against dirt, moisture, and insects
- 56C C-Face mounting for direct attachment to gearboxes
- Single-phase operation
- Dual-voltage capable (115V / 230V)
- 5/8" output shaft diameter
- UL Listed and CSA Approved
Compatibility & Applications
This motor is designed to mount directly to standard C-Face and C56 flange gearboxes, including A-Drive and E-Drive systems. It is compatible with a wide range of direct-drive boat lifts from manufacturers such as Boat Hoist USA, Golden Lift, AMS Hefty Hoist, Tide Tamer, Deco Lifts, Hi-Tide Lifts, Neptune Lifts, and Hurricane Boat Lifts.
The motor includes detailed wiring instructions and color-coded T-leads and is compatible with Elite, Bremas, and Salzer drum switches. It also integrates seamlessly with GEM, Galaxy, TEC, and Elite boat lift remote control systems. Performance is equivalent to Leeson boat hoist motor part number 6439191252.
Important: This motor is not compatible with flat-plate, belt-driven hoists.
Electrical Specifications
- Horsepower: 3/4 HP
- Speed: 1725 RPM
- Voltage: 115V or 230V
- Running Amperage: 11.2A @ 115V / 5.6A @ 230V
- Service Factor Amps (SFA): 12.4A @ 115V / 6.2A @ 230V
- Frequency: 60 Hz
- Frame Size: 56C
- Mounting Type: C-Face (Type C)
- Service Factor: 1.15
- Insulation Class: F
- IP Rating: IP56
- Duty Rating: 15 minutes maximum runtime
- Maximum Ambient Temperature: 40°C
- Enclosure: TENV (Totally Enclosed Non-Ventilated)
- UL / C-UL-US Recognized
What’s Included
This listing is for the motor only. The following items are not included:
- GFCI wiring harness
- Boat lift switch or control
Safety
Warning: All wiring or rewiring of this motor should be performed by a licensed electrician.
What Is a TENV Motor?
A Totally Enclosed Non-Ventilated (TENV) motor is designed to prevent dust, moisture, and debris from entering the motor housing. Because it does not rely on external airflow for cooling, TENV motors are well-suited for marine and outdoor environments where exposure to the elements is common.
