Boat Lifts, Docks, Repairs Parts and Accessories!
NEW Canopy Covers

Craftlander 1060PWC - 1200lb Capacity Cantilever PWC Lift

Manufacturer: CraftLander

Load Capacity: 1,200

Model: 1060PWC

Item Type: Lift - Freestanding

Inside Opening: 60" Inside Width

Lift Cradle Travel: 30

Select Interior Width Model

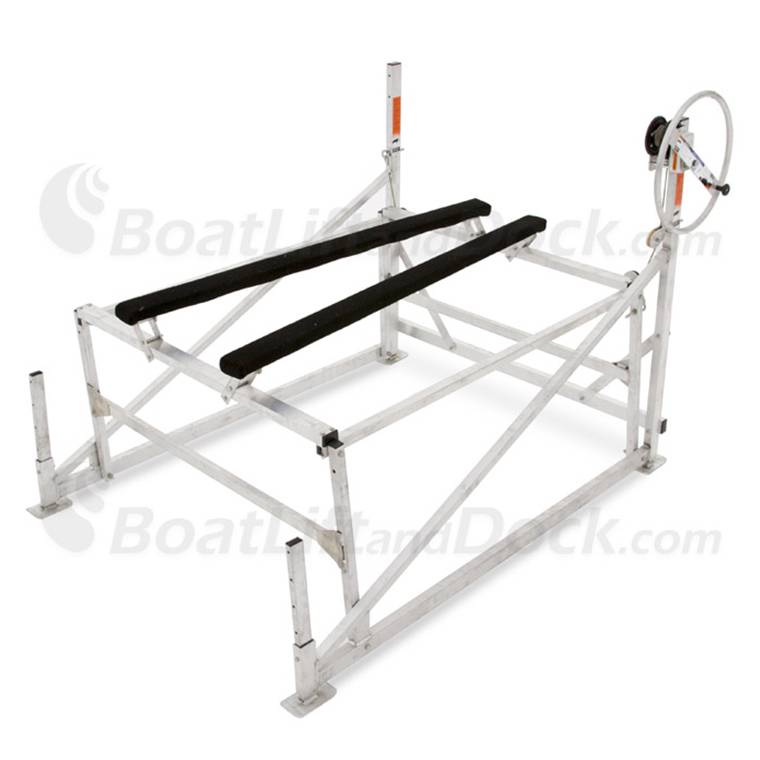

The 1060PWC  lift has been designed for PWC''s,  jet skis, or other small vessels with a weight of 1200 lbs or less and a beam of 60" or less.  The unit is an all-aluminum structure with carpeted 2 x 4's as bunks to support the boat.  Craftlander offers this freestanding cantilever lift with a 30" lift height and it is available in either a 60" OR  72" max beam width version. The tapered pads or feet on this unit allow it to be moved across many different surfaces and lake bottoms without snagging or digging in.  The lift is lightweight and fairly easy to install and remove seasonally.


SHIPPING NOTE: Our website calculates live freight shipping costs. With some of our larger products, we can provide better shipping rates by running a custom shipping request, specifically when multiple products are combined into one shipment. If you would like to get a custom shipping quote, please sign in or create an account, add the products you desire to your cart, and on the cart page, click the "Request a Quote" link, and we will run it manually to see if we can get a better rate. You can also do this if you want to pick up products from our Plainwell, Michigan location. Not available for all product lines.


  • 1200 lb. Max Lifting Capacity
  • 60" Max Beam
  • 30" Lift Height (actual cradle travel)
  • Stainless Steel Fasteners
  • Galvanized Steel Cable (stainless steel available upon request)
  • 72" Carpeted Hull Bunks
  • 5" Boat Loading Clearance at Bottom
  • 18" Telescoping Adjustable Legs
  • 2 Year Mechanical and 15 Year Structural Limited Warranty




  • Lift Tech Marine Direct-Drive PWC Motor in DC 12v OR AC 110v.  (See drop-down menus above)
  • Lake Lite 5-watt Solar Panel Kit.  (See drop-down menus above)
  • Standard Canopy Frame and Canopy Cover. This is what we call a shallow style frame and looks very similar to the Standard style boat lift canopy from Craftlander. (See drop-down menus above)
  1. This PWC lift comes with a manual crank winch operated by the turn wheel but you may choose to add a D/C or A/C powered direct drive motor from Lift Tech.  The motor is key turn operated.  The D/C model requires a solar panel kit and 12 volt battery.  The A/C model requires shore power at or near the dock.
  2. You can select a solar panel kit to power the D/C Lift Tech motor.  The panel is 5 watts and designed for a single marine deep cycle 12 volt battery.  It comes complete with a wiring kit and mounting arm.
  3. Canopy Frames can come with Canopy Covers that are available in several materials and colors designed to fit this frame and can be added under the "canopy cover options" drop-down menu on this product page.



  • When the carrier picks up the items then the tracking information will be sent via email.
  • For estimated shipping charges add the items to your cart and enter your zip code into the shipping calculator on the cart page.
Manufacturer: CraftLander
Base Group
Product MPN: 1060PWC
Load Capacity: 1,200
Model: 1060PWC
Item Type: Lift - Freestanding
Assembly Required: Yes
Lift Design
Operation: Manual
Lift Design: Cantilever, PWC
Frame Specs
Inside Opening: 60" Inside Width
Lift Cradle Travel: 30
Adjustable Leg Size: 18
Hull Bunk Type: Carpeted Lumber
Hull Bunk Length: 6
Frame Material: Aluminum
Fasteners: Zinc Plated Steel
Cable Specs
Cable Diameter: 1/4
Winch Specs
Wheel Size: 21
Lift Operation: Turn Wheel
Application Suggestions
Anchoring Type: Freestanding
Watercraft Weight (Wet): 500 - 800, 800 - 1,200
Shipping Information
Typically Ships: 1 - 3 Weeks
Shipping Method: LTL Freight
Manufacturer Details
Warranty: 2 Year Mechanical and 15 Year Structural
Return Policy
Restocking Fee: Yes
