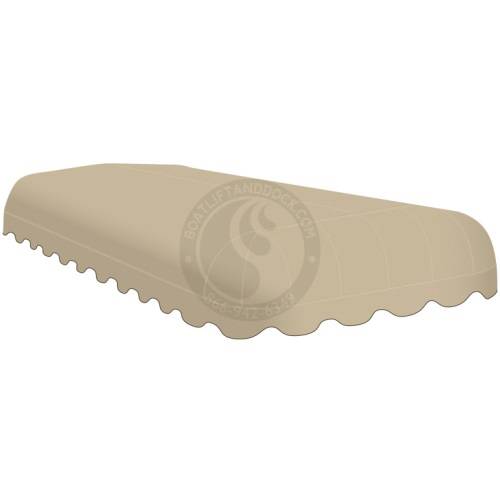

SHELTER-RITE 24' x 120" REPLACEMENT HARBORMASTER CANOPY COVER

• This cover model is specifically designed to fit existing HarborMaster ROUNDED end 24 foot long by x 120 inch interior width OEM aluminum canopy frames. (Canopy frame not included)
• Each cover order includes canopy frame attaching hardware and storage bag.

KEY FEATURES

• Includes 18.8 oz Shelter-Rite lift canopy cover and attachment hardware
• Quicklash reinforced lacing canopy attachment system eliminates grommets, 25% stronger than traditional grommet system
• Quicklash webbing features UV and Mildew resistance for longer-lasting durability and strength
• Hot air rotary heat sealed and welded 1" overlapped seams on top panels and 1/2" on canopy ends
• Dabond twisted and bonded continuous filament polyester threading with high UV and water resistance
• Includes 5-year limited manufacturer's warranty

Shelter-Rite™ vinyl is an American Premium Fabric and is engineered to exceed extensive performance criteria and is recognized as by most in the industry as the best vinyl canopy material available. Shelter-Rite is a heavy duty 18 oz PVC coated polyester that is available in 12 colors. Heavy duty tightly woven polyester fibers provide excellent tear, puncture and abrasion resistance. Shelter-Rite is a heavy duty 18 oz PVC coated polyester and vinyl canopies using Shelter-Rite outperform many other vinyl materials such as Shur-Tuff, Cover Tuff, Stamoid, in many key attributes. A high-performance vinyl formulation keeps the vinyl pliable and is crack, peel, UV, mold, and mildew resistant. The seems are heat welded and the flat matte, smooth finish makes clean up easy. We offer 12 different Shelter-Rite cover colors, see below;

QUICKLASH CANOPY ATTACHMENT SYSTEM

When you order a new replacement canopy cover, we include bungee attaching hardware so that you can secure the cover to your canopy frame. Below is an overview of the attachment system present with cover options as described above.



The Quicklash canopy attachment system provides a user-friendly and easy to install design with increased strength and durability over traditional attachment systems.  Sewn into the interior of the cover, Quicklash is a fabric strip with reinforced lacing holes to eliminate the need of grommets to secure the canopy.  The Quicklash webbing is reinforced with Armor Bar, a high-tenacity polyester yarn which provides increased tear resistance and strength.



The 2-1/8" wide Quicklash webbing allows for quick and customizable installation with 1" lacing holes spaced every 3".  The canopy cover is secured utilizing the Quicklash webbing and supplied bungees.  The 1/4" stretchable, nylon covered, rubber bungees connect to any of the 1" lacing holes and then are secured to each specified attachment point on the existing canopy frame.  Once all bungees have been installed even tension is created around the perimeter of the canopy frame keeping the cover secure and in place on the frame.

HARBORMASTER CANOPY FRAME MEASURING ASSISTANCE

Rounded End Canopy Frame Styles: Round Corners

Below we have provided an image that illustrates how to measure your Rounded End canopy frame in order to determine the proper size cover. HarborMaster canopy frames will have either a rounded end or flat end frame design. Rounded frames slightly peak to the center of the frame and have rounded frame corners. Typically above the lower canopy rail in the interior of the frame is a flat bar or a welded tie bar running the length of the frame for bungee attachment.

• Length Measurement: Outside length of the lower canopy rail on a centerline from front to back
• Width Measurement: Inside width of lower canopy rail on a centerline from left to right
