ShoreMaster ShorePort - Parallel to Floating Dock - Calm Water Configuration 1

Manufacturer: ShoreMaster

Typically Ships: 4-6 Weeks

Item Type: Lift - Floating

Select Package Configuration
QTY:
OVERVIEW

SHOREMASTER SHOREPORT KIT - PARALLEL TO FLOATING DOCK CONFIGURATION

The ShorePort 1150 lb capacity drive-on PWC/Jet Ski Dock offers convenient on water storage for your personal watercraft. There is no easier way to park and store your PWC on the water. With multiple mooring options, these units can be mounted to almost any type of dock system and they fit a large variety of PWC's. They can also be connected side by side, which is why they have become so popular at locations that rent PWC's.

This kit is designed for installing the ShorePort Parallel to an existing floating dock system. Configuration is suggested for area's with calm water conditions. Package includes a single ShorePort 1150lb capacity Jet Ski Dock and the Side mount Flexi-Hinge assembly hardware for floating dock mounting purposes.



KEY FEATURES

  • Standard 1,150 lb weight capacity - Expandable to 1,450 lb Capacity
  • Non-Marking Adjustable Keel Rollers for smooth entry and exit
  • Textured Walking Surface provides safe access to your PWC
  • Hydrophobic Vent allows trapped air to vent while preventing water from entering ShorePort due to fluctuating water temperatures and air temperatures
  • Cupped Front helps position your PWC on the ShorePort
  • Smooth and easy, drive-on, roll-off design
  • 8" Tie-Down Cleat for easy long term storage
  • Rear Roller provides easy entry and exit while protecting your PWC's hull





The ShorePort is constructed of very few moving parts so there is almost no maintenance. The adjustable polyurethane rollers and cupped front conform to most hull types. Each unit is rotationally molded for durability and ease-of-use. The ShorePort structure consists of a polyethylene single cavity, hollow, non-foam filled float structure with a nominal wall thickness of .250 inches.

A single unit can be used as a stand-alone PWC docking station, or you can connect multiple ShorePorts together for additional stability and PWC storage. Whether you are storing a single personal watercraft at your residential lakeshore property, or a whole fleet of personal watercraft at a marina, resort, or campground, the ShorePort can provide the support and protection necessary to protect your watercraft.



SELECTED CONFIGURATION OVERVIEW

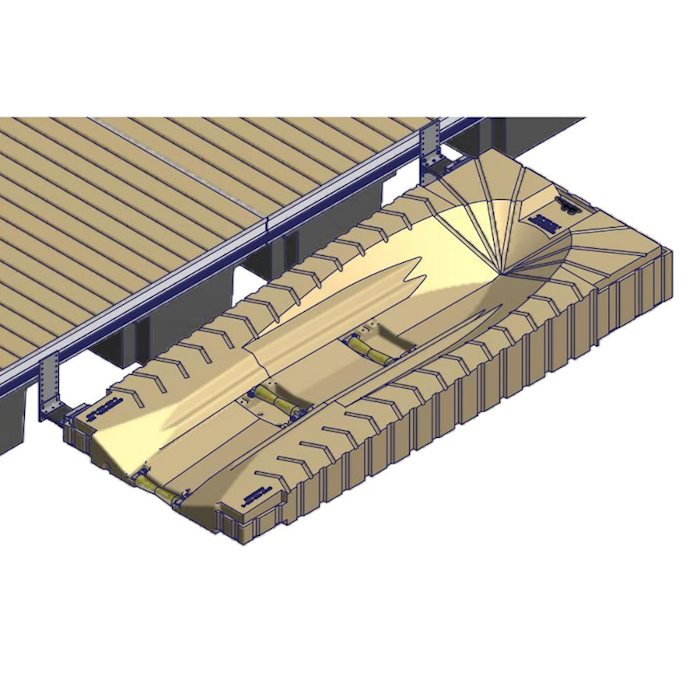

    Parallel to Floating Dock / Calm Water Configuration 1 - Parallel to floating dock configuration for calm water conditions. This configuration includes a single ShorePort 1150lb capacity drive on platform and the Side mount Flexi-Hinge assembly hardware for floating dock.

    Side Mount Flexi Hinge Assembly-  Flexi Hinge kits are designed to attach to ShorePort's recessed platform channel utilizing a custom heavy duty aluminum clamp system. These assemblies are intended for anchoring a ShorePort to any existing floating dock system by bolting the supplied attaching plate to a solid flat vertical surface. The two-piece bracket is connected with a thick gauge rubber plate that allows for flexing between the aluminum plates, generating less stress between the ShorePort and your dock.




AVAILABLE HARDWARE ACCESSORIES


    Supplemental Flotation - Additional supplemental floats may be added to increase the unit's weight capacity. Each supplemental adds 50lbs of capacity to the unit. If additional flotation is added, we recommend it be added in 100 lb increments. Each ShorePort allows up to 300 lbs of additional buoyancy to be added creating a 1450 lb capacity.




ADDITIONAL INFORMATION

SPECIFICATIONS
Manufacturer: ShoreMaster
SKU: SP-PAR-FLOAT-CALM1
Base Group
Product MPN: 1022950-1013365
Shipping Information
Typically Ships: 4-6 Weeks
Shipping Method: LTL Freight
Lift Design
Operation: Drive On
Watercraft Style: PWC
Lift Design: PWC, Floating, Drive-On
Frame Specs
Frame Material: Rotationally molded, Polyethylene
Fasteners: Stainless Steel
General
Item Type: Lift - Floating
Winch Specs
Lift Operation: Floating, Drive On
