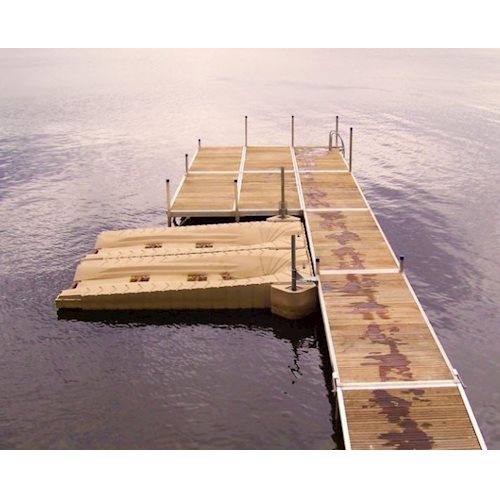

ShorePort-Dual Port Perpendicular to Freestanding Dock - Calm Water Configuration

Manufacturer: ShoreMaster

Item Type: Lift - Floating

Typically Ships: 1 - 3 Weeks

Select Package Configuration


The ShorePort 1150 lb capacity drive-on PWC/Jet Ski Dock offers convenient on water storage for your personal watercraft. There is no easier way to park and store your PWC on the water. With multiple mooring options, these units can be mounted to almost any type of dock system and they fit a large variety of PWC's. They can also be connected side by side, which is why they have become so popular at locations that rent PWC's.

Pre-configured kit is designed for installation of two ShorePort's connected side by side to be anchored perpendicular to an existing freestanding dock. Configuration suitable for calm / low wake water conditions. This bundled kit includes (2) ShorePort 1,150 lb capacity Jet Ski Dock, Universal Stand Off Plate hardware kit, (2) Large Poly Pipe Brackets, (1) side front connector, (1) side rear connector for freestanding dock mounting purposes.



  • Standard 1,150 lb weight capacity - Expandable to 1,450 lb Capacity
  • Non-Marking Adjustable Keel Rollers for smooth entry and exit
  • Textured Walking Surface provides safe access to your PWC
  • Hydrophobic Vent allows trapped air to vent while preventing water from entering ShorePort due to fluctuating water temperatures and air temperatures
  • Cupped Front helps position your PWC on the ShorePort
  • Smooth and easy, drive-on, roll-off design
  • 8" Tie-Down Cleat for easy long term storage
  • Rear Roller provides easy entry and exit while protecting your PWC's hull


The ShorePort is constructed of very few moving parts so there is almost no maintenance. The adjustable polyurethane rollers and cupped front conform to most hull types. Each unit is rotationally molded for durability and ease-of-use. The ShorePort structure consists of a polyethylene single cavity, hollow, non-foam filled float structure with a nominal wall thickness of .250 inches.

A single unit can be used as a stand-alone PWC docking station, or you can connect multiple units together for additional stability and PWC storage. Whether you are storing a single personal watercraft at your residential lakeshore property, or a whole fleet of personal watercraft at a marina, resort, or campground, the ShorePort can provide the support and protection necessary to protect your watercraft.




    Dual ShorePort Perpendicular to Freestanding Dock / Calm Water Configuration - Dual side by side perpendicular to freestanding dock configuration for calm water conditions. This configuration includes (2) ShorePort 1,150 lb capacity Jet Ski Dock, Universal Stand Off Plates hardware kit, (2) Large Poly Pipe Brackets, (1) side front connector, (1) side rear connector.
    Poly Pipe Brackets - This configuration includes (2) Large, front mounted poly pipe brackets. Poly Pipe Brackets are designed to attach to ShorePort's recessed platform channel utilizing custom channel connectors. These brackets are designed for post anchoring configurations. Pipe brackets allows you to pass pipe/posts through its heavy-duty wear plates in order to anchor a post into the lake bottom. Pipe/Post not included, sold separately.
    Stand-Off Plates - Come as a pair (only one shown in picture) and are used to attach the top of an anchor post to a dock, bulkhead or seawall. These are used in combination with Poly Pipe Brackets. The stand-offs work best when anchor post is augured or buried in the lake bottom and the top of the post connect to these Stand-Off Plates to keep the unit in place and the ability to move up and down with water conditions.




    Supplemental Flotation - Additional supplemental floats may be added to increase the unit's weight capacity. Each supplemental adds 50 lbs of capacity to the unit. If additional flotation is added, we recommend it be added in 100 lb increments. Each ShorePort allows up to 300 lbs of additional buoyancy to be added creating a 1450 lb capacity.



Note: We have several other pre-configured kits to choose from. You may select any of the listed configurations at the top of this page by clicking on the "Select Configuration" located just above the "Add to Cart" button. If any of the configurations provided below don't meet your project needs, please contact us. The ShorePort is extremely versatile and can be set up in various other configurations based on your needs.



  • Tracking information will be provided via email when the shipper catalogs the pick-up.
  • This product requires customer offloading assistance and signature upon delivery.
  • View ShoreMaster Warranty Information


Manufacturer: ShoreMaster
Base Group
Product MPN: (2)1022950-1006715-(2)1022952-1006631-1007016
Item Type: Lift - Floating
Lift Design
Operation: Drive On
Watercraft Style: PWC
Lift Design: PWC, Floating, Drive-On
Frame Specs
Frame Material: Rotationally molded, Polyethylene
Winch Specs
Lift Operation: Floating, Drive On
Shipping Information
Typically Ships: 1 - 3 Weeks
Shipping Method: LTL Freight
