NEW Canopy Covers

ShorePort-Parallel to Floating Dock - Calm Water Configuration 2

Manufacturer: ShoreMaster

Item Type: Lift - Floating

Typically Ships: 1 - 3 Weeks

Select Package Configuration


The ShorePort 1150 lb capacity drive-on PWC/Jet Ski Dock offers convenient on water storage for your personal watercraft. There is no easier way to park and store your PWC on the water. With multiple mooring options, these units can be mounted to almost any type of dock system and they fit a large variety of PWC's. They can also be connected side by side, which is why they have become so popular at locations that rent PWC's.

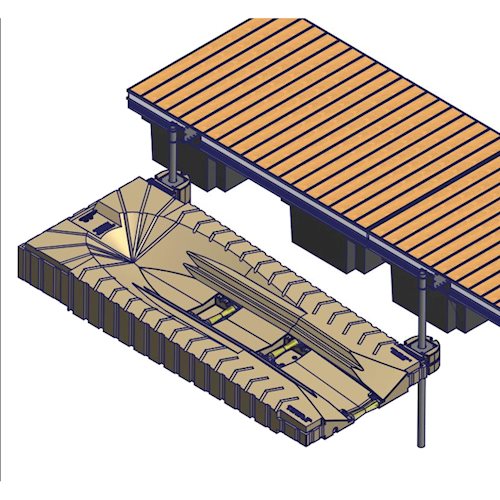

This pre-configured kit is designed for installing the ShorePort Parallel to an existing floating dock system. This configuration is recommended for installation in calm/low wake water conditions. This ShorePort Kit includes a single ShorePort 1,150 lb capacity Jet Ski Dock, Universal Stand Off Plates hardware kit, (1) Medium Poly Pipe Bracket, and (1) Rear Poly Pipe Bracket.



  • Standard 1,150 lb weight capacity - Expandable to 1,450 lb Capacity
  • Non-Marking Adjustable Keel Rollers for smooth entry and exit
  • Textured Walking Surface provides safe access to your PWC
  • Hydrophobic Vent allows trapped air to vent while preventing water from entering ShorePort due to fluctuating water temperatures and air temperatures
  • Cupped Front helps position your PWC on the ShorePort
  • Smooth and easy, drive-on, roll-off design
  • 8" Tie-Down Cleat for easy long term storage
  • Rear Roller provides easy entry and exit while protecting your PWC's hull


The ShorePort is constructed of very few moving parts so there is almost no maintenance. The adjustable polyurethane rollers and cupped front conform to most hull types. Each unit is rotationally molded for durability and ease-of-use. The ShorePort structure consists of a polyethylene single cavity, hollow, non-foam filled float structure with a nominal wall thickness of .250 inches.

A single unit can be used as a stand-alone PWC docking station, or you can connect multiple ShorePorts together for additional stability and PWC storage. Whether you are storing a single personal watercraft at your residential lakeshore property, or a whole fleet of personal watercraft at a marina, resort, or campground, the ShorePort can provide the support and protection necessary to protect your watercraft.



    Parallel to Floating Dock / Calm Water Configuration 2 - Parallel to floating dock configuration for installation in calm water conditions. This configuration includes a single ShorePort 1,150lb capacity Jet Ski Dock, Universal Stand Off Plates hardware kit, (1) Medium Poly Pipe Bracket, and (1) Rear Poly Pipe Bracket.
    Poly Pipe Brackets - This configuration includes (1) Front mounted poly pipe bracket and (1) Rear mounted poly pipe bracket. Poly Pipe Brackets are designed to attach to ShorePort's recessed platform channel utilizing custom channel connectors. These brackets are designed for post anchoring configurations. Pipe brackets allows you to pass pipe/posts through its heavy-duty wear plates in order to anchor a post into the lake bottom. Pipe/Post not included, sold separately.
    Stand-Off Plates - come as a pair (only one shown in picture) and are used to attach the top of an anchor post to a dock, bulkhead or seawall. These are used in combination with Poly Pipe Brackets. The stand-offs work best when anchor post is augured or buried in the lake bottom and the top of the post connect to these Stand-Off Plates to keep the ShortPort unit in place and the ability to move up and down with water conditions.



    Supplemental Flotation - Additional supplemental floats may be added to increase the unit's weight capacity. Each supplemental adds 50 lbs of capacity to the unit. If additional flotation is added, we recommend it be added in 100 lb increments. Each ShorePort allows up to 300 lbs of additional buoyancy to be added creating a 1450 lb capacity.



  • Tracking information will be provided via email when the shipper catalogs the pick-up.
  • Delivery of this product requires customer offloading assistance and package signature acceptance
  • View ShoreMaster Warranty Information
Manufacturer: ShoreMaster
Base Group
Product MPN: 1022950
Item Type: Lift - Floating
Lift Design
Operation: Drive On
Lift Design: PWC, Floating, Drive-On
Frame Specs
Frame Material: Rotationally molded, Polyethylene
Winch Specs
Lift Operation: Floating, Drive On
Shipping Information
Typically Ships: 1 - 3 Weeks
