Wahoo CAT5 Floating Dock Systems – Premium Aluminum Floating Docks Engineered for Strength, Beauty & Longevity

Please Note: BoatLiftandDock.com is authorized to supply Wahoo Dock systems within a designated geographic territory. If you are located outside our service area, we are happy to connect you with your nearest authorized Wahoo dealer. Pricing and availability may vary by region.

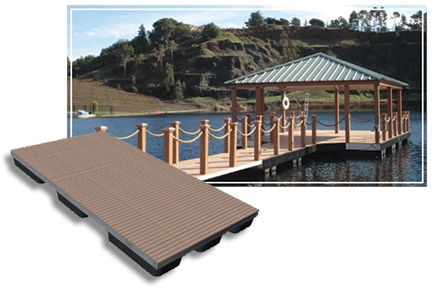

Wahoo CAT5 Floating Dock Systems represent the most advanced evolution of premium aluminum floating dock engineering. Designed for both residential and commercial waterfront applications, the CAT5 system combines world-class engineering, patented structural components, marine-grade materials, and precision manufacturing to deliver exceptional strength, rigidity, low maintenance, and long-term waterfront performance.

Built to withstand the 24/7 stresses of the marine environment, CAT5 docks are engineered to handle continuous wind, wave, weather, and load demands while maintaining a clean, architectural appearance. The result is a floating dock system that enhances your waterfront, increases property value, and is built to perform for generations.

Why Choose the Wahoo CAT5 Dock System?

• Patented Interlocking Structural Frame – Advanced interlocking aluminum design helps distribute loads evenly and allows the dock to support significantly more than its own respective load
• Patented Corner & Structural Connection System – Heavy-duty corner extrusions and interlocking connections help reduce stress at critical welded and bolted areas
• 9" Heavy-Duty Aluminum Mainframe – Proprietary extrusions provide exceptional strength, rigidity, and long-term durability
• 4" Octagonal Roof Posts – Engineered roof support posts create a stronger, more refined structure for roofed and upper-deck dock applications
• Through-Bolted Roof Supports – Roof poles are bolted from top to bottom for increased structural stability and load transfer
• Gusset Reinforcements – Welded gusset reinforcements strengthen the mainframe and stringer support system
• Noise-Eliminating UHMW-PE Bushings – Reduces metal-to-metal contact at key connection points, including poles and hinges, for a quieter dock
• 100% Stainless Steel Fasteners – Corrosion-resistant hardware helps maintain tight, rigid structural connections over time
• Premium Dock Floats – Highly impact-resistant polyethylene floats with foam fill for dependable flotation and long service life
• Dry Joist Protection & Finished Trim Work – Additional details help improve durability while delivering a more polished, craftsman-style appearance
• Virtually Maintenance-Free Aluminum Construction – Designed to resist corrosion, weathering, and the upkeep common with wood or steel dock systems

Why CAT5 Is Stronger Than Traditional Floating Docks

Traditional floating dock systems often rely on more basic frame layouts, conventional welded corners, and simpler support details that can concentrate stress at critical junctions. Over time, those stress concentrations can contribute to movement, flex, noise, and premature wear in demanding waterfront conditions.

The Wahoo CAT5 dock system was engineered to solve these common weaknesses through a more advanced structural approach. Its patented interlocking frame system helps distribute loads more evenly throughout the dock rather than forcing structural stress into isolated welds or bolted joints. The heavy-duty corner extrusions and reinforced structural connections improve rigidity in the most critical areas of the dock.

CAT5 also incorporates 9" proprietary mainframe extrusions, gusset reinforcements, premium floats, dry joist protection, and through-bolted roof supports to create a dock that feels more solid, performs more quietly, and withstands harsh marine conditions with less maintenance. Compared to many conventional floating docks, the CAT5 system delivers a stronger, quieter, more rigid, and more refined dock structure.

CAT5 vs. Traditional Floating Dock Comparison

Advanced Engineering & Construction

Every CAT5 dock is individually designed by an in-house engineer and evaluated using proprietary design and analysis software to ensure peak performance based on your specific waterfront conditions. Wahoo combines this engineering approach with state-of-the-art MIG welding performed in a controlled environment by skilled professionals for consistent quality and long-term reliability.

The CAT5 system incorporates custom aluminum extrusions, castings, fasteners, floats, decking, trim, and structural components that are purpose-built to work together as a unified system. This componentized approach helps Wahoo deliver superior strength, design flexibility, and a more refined finished appearance than traditional dock construction methods.

• Marine-Grade 6061-T6 Structural Aluminum – Excellent mechanical properties with corrosion-resistant performance for marine environments
• Over 45 Patented Components & Designs – Including corner connectors, post and rail systems, fascia channels, gangway hinges, and noise-reducing bushings
• Controlled-Environment Fabrication – Precision welding and manufacturing for consistent quality
• North America Manufacturing – Residential docks are manufactured in North America and sold through an experienced dealer network

Why Aluminum Is the Best Material for Floating Docks

For marine applications, aluminum is one of the most efficient materials available for a durable, low-maintenance dock structure. Unlike steel, aluminum does not rust. Instead, it naturally reacts with oxygen to form a hard, protective oxide layer that helps prevent further oxidation and increases longevity.

Marine-grade aluminum also offers excellent strength-to-weight properties, including a tensile strength similar to steel, while remaining more versatile and corrosion resistant in harsh waterfront environments. Compared to wood, aluminum avoids the cracking, swelling, warping, rot, and fungal issues often caused by repeated wet-and-dry exposure.

This is one of the reasons a Wahoo aluminum floating dock is such a strong long-term investment for lakefront homes, marinas, and commercial waterfront properties.

Dock Layout & Configuration Options

The CAT5 system is fully customizable and can be configured to meet virtually any waterfront requirement. Whether you want a simple platform dock, a covered boat slip, a multi-slip dock, or a large marina-style layout, Wahoo offers hundreds of dock design possibilities.

Platform Docks

Platform docks are ideal for fishing, swimming, kayak launching, and relaxing on the water. These simple, open layouts can be enhanced with railings, furniture, ladders, cleats, shade structures, and other accessories to create a highly functional waterfront space.

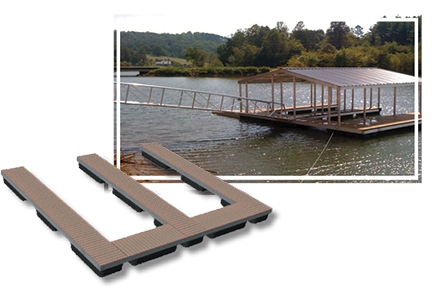

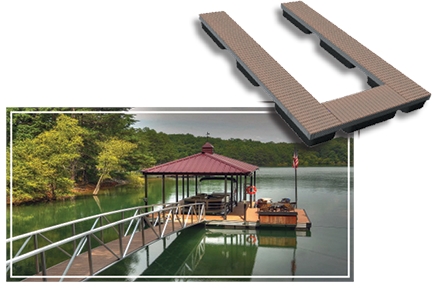

Single Slip

A single-slip dock includes a dedicated opening that allows one boat to be stored securely with dock access on multiple sides. It is an excellent choice for homeowners seeking protected boat access with the option to add a roof, lift, storage features, and premium finishes.

Double & Multi-Slip Layouts

Double-slip and multi-slip layouts are popular for waterfront properties with multiple boats or future expansion plans. These designs maintain the structural advantages of the CAT5 system while adding more capacity, more usable deck space, and the option for upper decks, roof systems, and custom accessories.

PWC Side Slip

A PWC side-slip layout is ideal for docks that need to accommodate both a larger boat and a jet ski or other personal watercraft. This configuration preserves more usable deck space while still providing convenient access and secure mooring.

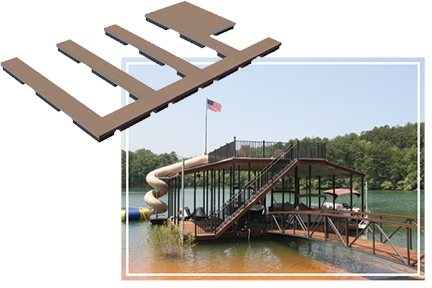

Custom Configuration Layouts

Custom layouts can be designed around pontoons, PWCs, unusual shoreline conditions, accessibility needs, storage requirements, and architectural preferences. Wahoo docks are built to be a unique reflection of your waterfront property and intended use.

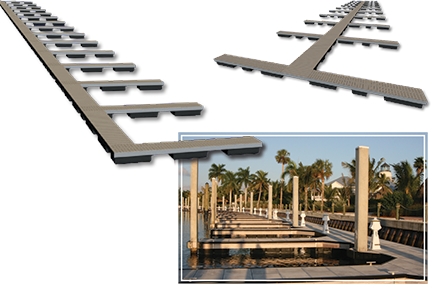

Commercial Layouts

Commercial dock layouts are fully customizable and often include E-shaped and fishbone configurations. These layouts can be tailored for everything from small recreational craft to larger vessels and can also incorporate dedicated PWC storage, gangways, rail systems, and roofed slips.

Whether you need a simple floating platform or a large-scale marina system, CAT5 docks are engineered to match your exact needs.

Roof Systems & Upper Deck Options

The structural strength of the CAT5 system allows it to support rigid roof structures and upper deck applications with confidence. Wahoo offers multiple premium roof configurations to complement both the appearance and function of your dock.

Gable A-Frame Roof

The gable roof is one of the most popular and cost-effective covered dock options. Also known as an A-frame roof, its peaked profile encourages airflow while delivering reliable overhead protection for your dock, lift, and boat.

Hip Roof

Hip-style roofs feature four sloping sides for a more enclosed, architectural appearance. Wahoo hip roofs are built with a 5×12 pitch and are generally considered more rigid than gable roofs, making them a great choice for areas that experience snow accumulation and harsher weather exposure.

Double/Cross Hip Roof

The double or cross hip roof is formed by the intersection of two or more hip roof sections, creating an L-shaped, T-shaped, or cross-shaped layout. This roof style delivers a highly customized look along with excellent structural rigidity and premium visual appeal.

Sun Deck with Gables

The Wahoo Sun Deck Roof transforms a standard dock into a true multi-level waterfront living space, combining protected boat storage below with a functional upper-level deck above. This design maximizes usable space without increasing the dock’s footprint and is ideal for entertaining, relaxing, and enjoying elevated water views.

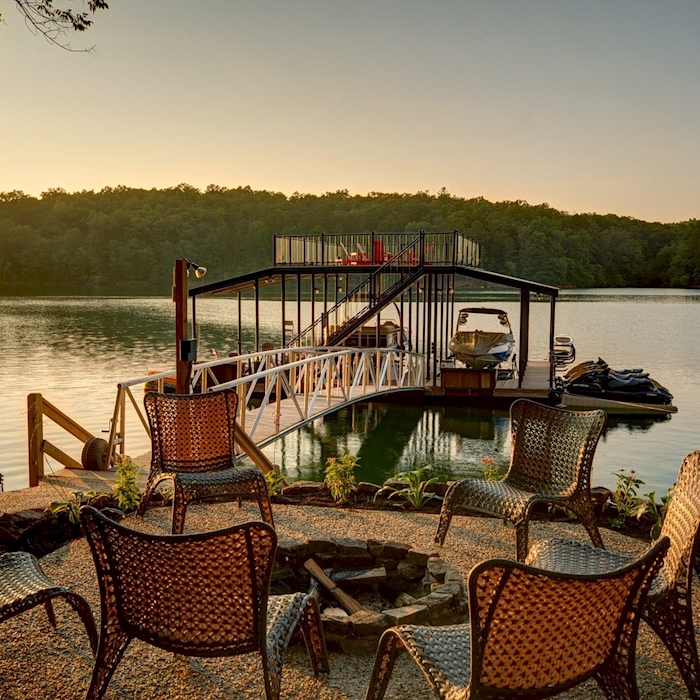

Upper Deck with Shade Roof

The Wahoo Upper Deck Roof with Shade combines covered boat protection below with a shaded upper-level retreat above. This versatile design balances sun exposure and comfort while creating a premium outdoor living space for seating, entertaining, and panoramic waterfront views.

Wahoo also offers R-panel metal roofing with a seamless, weather-resistant design in a wide variety of colors. Each panel features a premium Kynar 500 finish for advanced resistance to fading and chalking and is backed by a 30-year limited warranty.

The CAT5 framing system allows for fewer vertical supports, creating a more open and unobstructed dock layout.

Decking Options

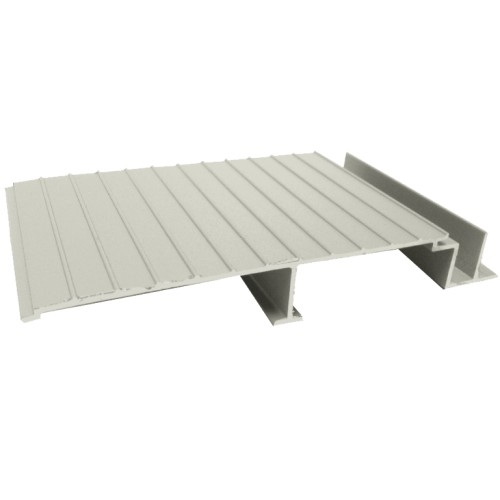

AridDek

AridDek is a durable aluminum decking system designed to withstand nature’s harshest conditions while maintaining a like-new appearance for the life of your dock.

• Durable marine-grade aluminum construction
• Low-maintenance, long-lasting performance
• Clean, modern appearance with excellent durability
• Designed to perform in harsh waterfront environments

Ipe

Often referred to as Ironwood or Brazilian hardwood, Ipe is an exotic decking material known for its exceptional density, strength, and long-term durability.

• Dense hardwood resists splintering, weathering, and fungus
• Long-lasting, low-maintenance performance
• Premium natural wood appearance
• Excellent choice for upscale waterfront applications

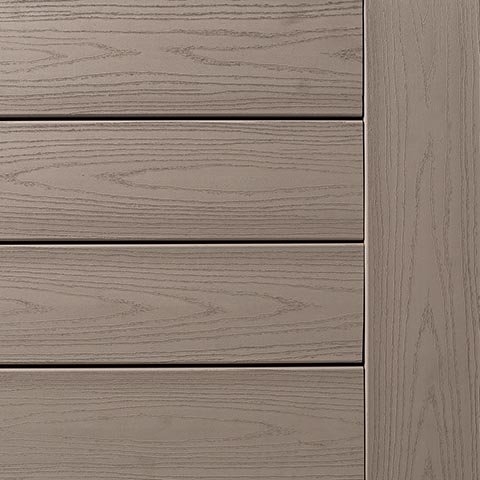

Composite

Composite decking offers a wood-like appearance with minimal upkeep and no need for staining. It is available in multiple colors and typically features a woodgrain texture pattern for added visual warmth.

• Low maintenance and easy to care for
• Wood-inspired appearance without the upkeep of natural lumber
• Available in a variety of colors and finishes
• Well suited for residential floating dock applications

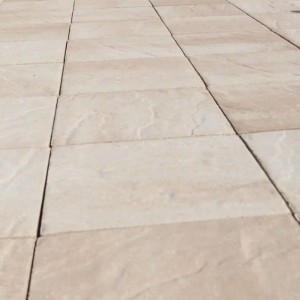

Concrete Pavers

Concrete pavers are available in multiple sizes and patterns and provide a durable, heavy-duty decking solution for select applications. Their stained finish will not crack, rot, or decay and is impervious to insects.

• Excellent durability for demanding applications
• Available in multiple sizes and patterns
• Impervious to insects and resistant to decay
• Ideal where added weight and stability are desired

Each decking option is engineered to integrate seamlessly with the CAT5 frame system.

Anchoring & Stability

CAT5 docks are designed to perform in a wide range of environmental conditions with multiple anchoring solutions available. Because anchoring points are subjected to exceptionally high stress, Wahoo goes beyond common industry standards to reinforce anchoring assemblies and minimize the stresses created by the constant multi-directional forces acting on floating docks.

Anchoring decision factors include water depth, distance from shore, water level fluctuations, wind and wave forces, dock configuration, and local regulations.

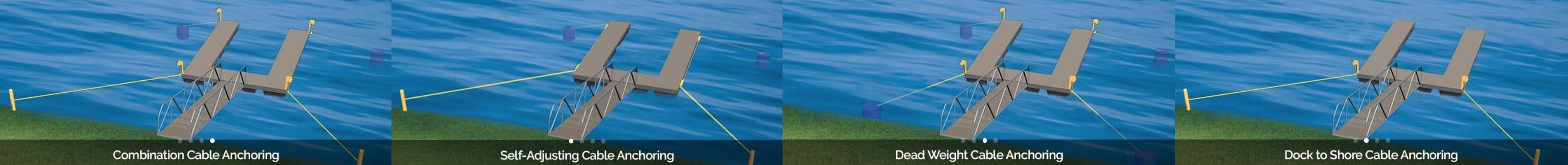

Cable Anchoring

Flexible and cost-effective for fluctuating water levels

Combination Cable Anchoring

Uses a combination of shore connections and anchor points to provide balanced support and flexibility.

Self-Adjusting Cable Anchoring

Designed to accommodate changing water levels while helping keep the dock properly positioned.

Dead Weight Cable Anchoring

Relies on submerged anchor weights to secure the dock in areas where shoreline anchoring is limited.

Dock to Shore Cable Anchoring

Connects the dock directly to the shoreline for a simple, effective anchoring solution.

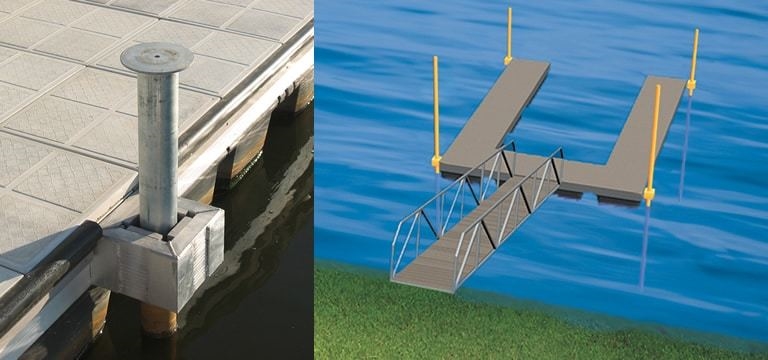

Pole & Sleeve Systems

Ideal for high wind and wave conditions

Pole and sleeve anchoring is especially useful in environments with excessive wind and wave activity while still allowing the dock to be seasonally repositioned. This system uses rigid vertical sleeves attached to the dock with long galvanized poles that pass through them and seat into the lake bed. A cable and winch attached to the bottom of each pole helps with seasonal removal and repositioning.

Pile Anchoring

Maximum stability for heavy-load applications

Pile anchoring is a highly stable dock anchoring system suitable for heavy-load locations. Wahoo docks feature built-in pile guides with quiet UHMW-PE rollers that can accommodate wood, steel, concrete, or fiberglass piles.

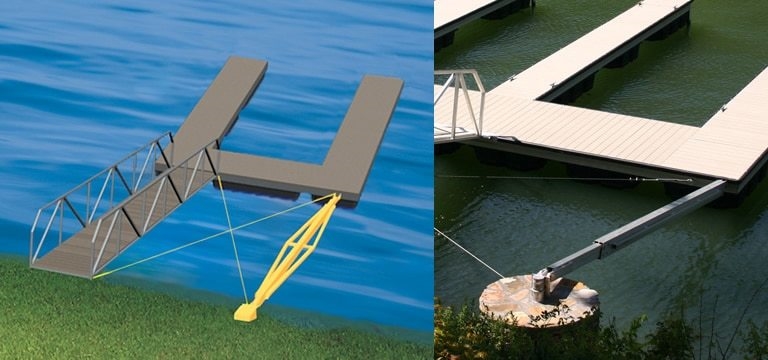

Stiff Arm Anchoring

Rigid shoreline connection for added control

Wahoo offers several stiff-arm anchoring designs for varying loads and distances between the dock and shore. Stiff arms can be manufactured in lengths up to 60 feet and are often paired with a winch and cable system for greater adjustability.

All anchoring systems are selected based on site-specific factors such as water depth, shoreline distance, wave action, seasonal water-level changes, and local permitting requirements.

Furniture, Accessories & Premium Finishing Options

Wahoo CAT5 docks offer one of the most extensive selections of upgrades and finishing details in the industry, allowing each dock to be customized for both function and style.

• Engineered Railing Systems – Including custom rails, picket options, and cable rail options
• Heavy-Duty Gangways & Hinges – Built for strength, smooth operation, and long-term reliability
• Stairs & Ladders – Including 4- and 5-step ladders, stair ladders, and dog ladders
• Dock Boxes – Aluminum dock boxes available with composite or Ipe finishes and optional EVA foam seating tops
• Kayak Racks – Custom aluminum side-mount racks for kayaks, canoes, and boards
• Furniture – Including Ipe-and-aluminum captain’s chairs and 2- or 3-person benches
• Flag Poles & Decorative Features – Premium finishing touches that enhance appearance and usability
• Trim Work & Accessories – Finishing details available to customize every CAT5 dock

Every component is designed to integrate seamlessly with the CAT5 system for both performance and aesthetics.

Built for Long-Term Waterfront Performance

The Wahoo CAT5 floating dock system is engineered to deliver maximum structural integrity, reduced maintenance, long-term durability, and premium curb appeal. With its patented design, advanced materials, premium finishes, and precision manufacturing, CAT5 stands out as one of the strongest and most refined aluminum floating dock systems available.

Whether for a private lakefront residence, a shared waterfront development, or a commercial marina, Wahoo CAT5 docks provide a premium floating dock solution built to exceed expectations year after year.
