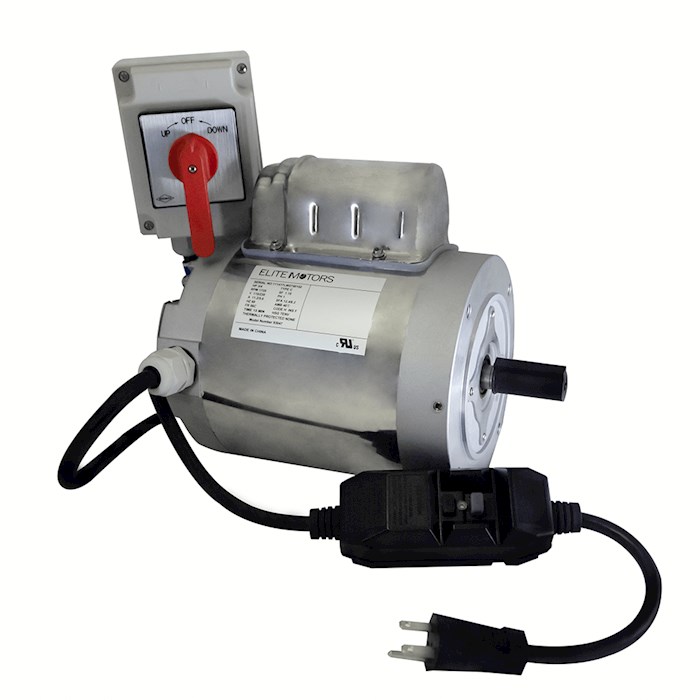

Elite 3/4 HP Stainless Steel 56C Frame Direct Drive Boat Lift Motor – 220V Wired Kit
The Elite 3/4 HP Stainless Steel Direct Drive Boat Lift Motor is a corrosion-resistant, wired motor package designed specifically for direct-drive boat lift systems. Operating at 1725 RPM with a maximum recommended runtime of 15 minutes, this motor mounts directly to compatible gearboxes using a C-Face flange, eliminating the need for belts, pulleys, or flat-plate mounting.
Motor Features
- 3/4 HP electric motor with stainless steel housing for superior corrosion resistance
- Aluminum end plates with a marine-grade gasketed capacitor housing to help seal out water and debris
- Totally Enclosed Non-Ventilated (TENV) design protects internal components from dirt, moisture, and insects
- 56C C-Face mounting for direct attachment to gearboxes
- Single-phase operation
- Dual-voltage capable (115V / 230V)
- 5/8" output shaft diameter
- UL Listed and CSA Approved
Included Components
This wired motor kit includes:
- Momentary/spring-loaded Boat lift control switch
- Pre-wired GFCI wiring harness with 14/5 SJTW control cable
- In-line GFCI located approximately 4.5" from the plug
The plug type and GFCI configuration supplied with the wiring harness are matched to the 220V motor setup.
Compatibility & Applications
This motor is designed to mount directly to standard C-Face and C56 flange gearboxes, including A-Drive and E-Drive systems. It is compatible with direct-drive boat lifts from manufacturers such as Boat Hoist USA (BH-USA), Golden Lift, AMS Hefty Hoist, Tide Tamer, Deco Lifts, Hi-Tide Lifts, Neptune Lifts, and Hurricane Boat Lifts.
The motor includes detailed wiring instructions and color-coded T-leads and is compatible with Elite, Bremas, and Salzer drum switches. It also integrates seamlessly with GEM, Galaxy, TEC, and Elite boat lift remote control systems. Performance is equivalent to Leeson boat hoist motor part number 6439191252.
Important: This motor is not compatible with flat-plate, belt-driven hoists.
Electrical Specifications
- Horsepower: 3/4 HP
- Speed: 1725 RPM
- Voltage: 115V or 230V (factory-wired for 220V)
- Running Amperage: 11.2A @ 115V / 5.6A @ 230V
- Service Factor Amps (SFA): 12.4A @ 115V / 6.2A @ 230V
- Frequency: 60 Hz
- Frame Size: 56C
- Mounting Type: C-Face (Type C)
- Service Factor: 1.15
- Insulation Class: F
- Duty Rating: Maximum 15-minute runtime
- Maximum Ambient Temperature: 40°C
- Enclosure: TENV (Totally Enclosed Non-Ventilated)
- UL / C-UL-US Recognized
Warranty & Safety
This motor includes a 1-year manufacturer’s warranty.
Warning: All wiring or rewiring of this motor should be performed by a licensed electrician.
What Is a TENV Motor?
A Totally Enclosed Non-Ventilated (TENV) motor is designed to prevent dust, moisture, and debris from entering the motor housing. Because it does not rely on external airflow for cooling, TENV motors are well-suited for marine and outdoor environments where exposure to the elements is common.
