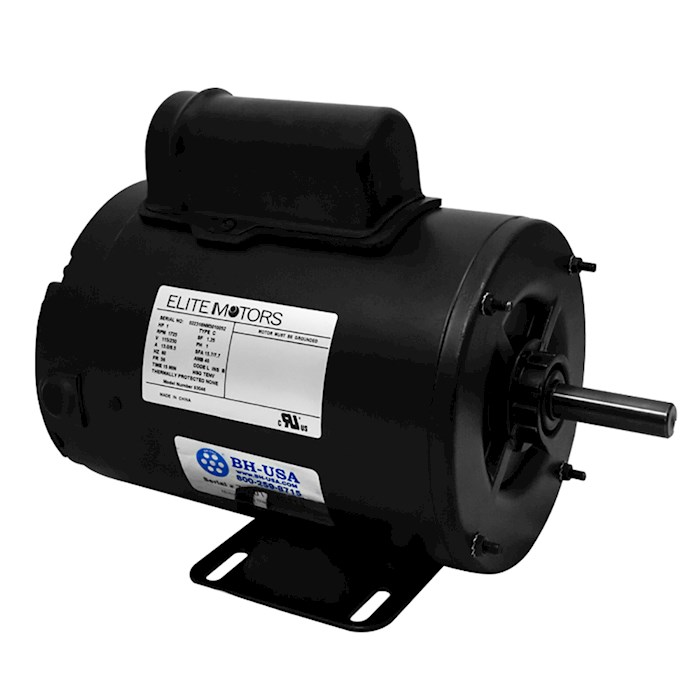

Elite 1 HP Painted 56 Frame Boat Lift Motor
The Elite 1 HP Painted Boat Lift Motor is a reliable, standard-duty electric motor designed for use with flat-plate style boat hoists. Operating at 1725 RPM with a maximum recommended runtime of 15 minutes, this motor provides dependable lifting power for a wide range of residential boat lift applications.
Motor Features
- 1 HP electric motor with painted steel housing
- Totally Enclosed Non-Ventilated (TENV) design helps protect internal components from dirt, moisture, and insects
- 56 frame, foot-mounted base fits most flat-plate style hoists
- Single-phase motor
- Dual-voltage capable (factory wired for 220V; can be rewired for 110V)
- 5/8" output shaft diameter
- UL Listed and CSA Approved
Compatibility & Applications
This motor is engineered to integrate seamlessly with many common flat-plate boat hoists, including models from Boat Hoist USA, ACE Labs, American Power Hoist, AMS, and Hefty Hoist. The welded base matches standard flat-plate gear mounting patterns commonly used on belt-drive hoists.
The motor includes clear wiring diagrams and is compatible with Breams and Salzer drum switches. It also works with remote control systems from GEM, Galaxy, TEC, and Elite for added convenience. Performance is comparable to Leeson boat hoist motor part number 6439191252.
Note: This motor is not compatible with direct-drive hoists.
Electrical Specifications
- Horsepower: 1 HP
- Speed: 1725 RPM
- Voltage: 115V or 230V
- Amperage: 12.57A @ 115V / 6.29A @ 230V
- Frequency: 60 Hz
- Frame Size: 56
- Service Factor: 1.0
- Insulation Class: B
- Duty Rating: 15 minutes maximum runtime
- Maximum Ambient Temperature: 40°C
- Enclosure: TENV (Totally Enclosed Non-Ventilated)
What’s Included
This listing is for the motor only. The following items are Not included:
- 2" aluminum motor pulley
- GFCI wiring harness
- Boat lift switch or control
Safety
Important: We recommend that all wiring or rewiring of this motor be performed by a licensed electrician.
