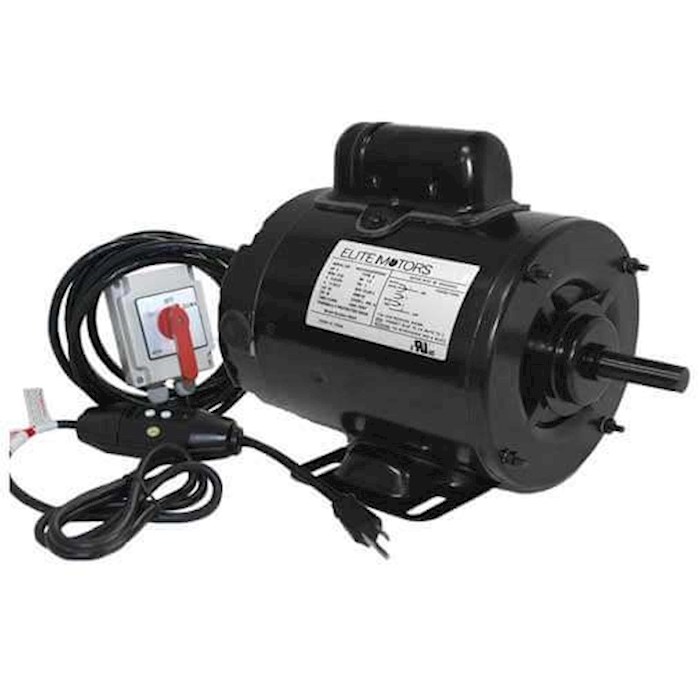

Elite 1.5 HP Painted 56 Frame Boat Lift Motor – 220V Wired Kit
The Elite 1.5 HP Painted Boat Lift Motor is a complete, wired motor package designed for flat-plate, belt-driven boat hoists. Operating at 1725 RPM with a maximum recommended runtime of 15 minutes, this standard-duty motor delivers dependable lifting performance for residential and light-commercial boat lift applications.
Motor Features
- 1.5 HP (1 1/2 HP) electric motor with fully painted steel housing
- Totally Enclosed Non-Ventilated (TENV) design helps protect internal components from dirt, moisture, and insects
- 56 frame, foot-mounted base fits most flat-plate style hoists
- Single-phase operation
- Dual-voltage capable (115V / 230V)
- 5/8" output shaft diameter
- UL Listed and CSA Approved
Included Components
This wired motor kit includes the components required for installation:
- 2" aluminum motor pulley
- Momentary/spring-loaded Boat lift control switch
- Pre-wired GFCI wiring harness with 14/5 SJTW control cable
- In-line GFCI located approximately 4.5" from the plug
The plug type and GFCI configuration supplied with the wiring harness are matched to the 220V motor setup.
Compatibility & Applications
The welded base is compatible with standard flat-plate gear mounting patterns commonly used on belt-driven boat hoists. This motor is frequently installed on hoists manufactured by Boat Hoist USA, ACE Labs, American Power Hoist, AMS, and Hefty Hoist.
The motor includes easy-to-follow wiring diagrams and is compatible with Breams and Salzer drum switches. It also integrates with remote control systems from GEM, Galaxy, TEC, and Elite. Performance is equivalent to Leeson boat hoist motor part number 6439191252.
Important: This motor is not compatible with direct-drive hoists.
Electrical Specifications
- Horsepower: 1.5 HP (1 1/2 HP)
- Speed: 1725 RPM
- Voltage: 115V or 230V
- Amperage: 20.0A @ 115V / 10.0A @ 230V
- Frequency: 60 Hz
- Frame Size: 56
- Service Factor: 1.0
- Insulation Class: B
- Enclosure: TENV (Totally Enclosed Non-Ventilated), Code L
- Duty Rating: Maximum 15 minutes
- Maximum Ambient Temperature: 40°C
- UL / C-UL-US Recognized
Warranty & Safety
This motor includes a 1-year manufacturer’s warranty.
Warning: All wiring or rewiring of this motor should be performed by a licensed electrician.
What Is a TENV Motor?
A Totally Enclosed Non-Ventilated (TENV) motor is designed to prevent dust, moisture, and debris from entering the motor housing. Because it does not rely on external airflow for cooling, TENV motors are well-suited for marine and outdoor environments where exposure to the elements is common.
