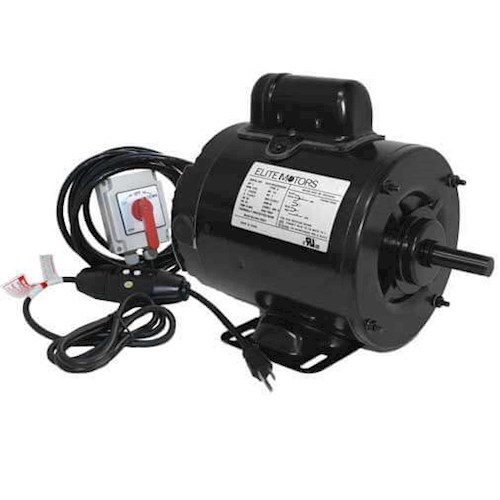

Elite 1 HP Painted 56 Frame Boat Lift Motor – 220V Wired Kit

The Elite 1 HP Painted Boat Lift Motor – 220V Wired Kit is a complete, ready-to-install solution designed for flat-plate, belt-driven boat hoists. Operating at 1725 RPM with a maximum recommended runtime of 15 minutes, this standard-duty motor delivers dependable lifting power for residential boat lift applications.

Motor Features

• 1 HP electric motor with painted steel housing
• Totally Enclosed Non-Ventilated (TENV) design helps protect internal components from dirt, moisture, and insects
• 56 frame, foot-mounted base fits most flat-plate style hoists
• Single-phase operation
• Factory-wired for 220V (dual-voltage capable)
• 5/8" output shaft diameter
• UL Listed and CSA Approved

Included Components

This wired motor kit includes:

• 2" aluminum motor pulley
• Maintained/lock-on Boat lift control switch
• Pre-wired GFCI wiring harness with 14/5 SJTW control cable
• In-line GFCI positioned approximately 4.5" from the plug

The plug style and GFCI configuration provided with the wiring harness correspond to the 220V motor setup.

Compatibility & Applications

The welded base matches standard flat-plate gear mounting patterns commonly used on belt-driven boat hoists. This motor is widely used with hoists manufactured by Boat Hoist USA, ACE Labs, American Power Hoist, AMS, and Hefty Hoist.

The motor includes clear wiring diagrams and is compatible with Breams and Salzer drum switches. It also integrates seamlessly with remote control systems from GEM, Galaxy, TEC, and Elite. Performance is equivalent to Leeson boat hoist motor part number 6439191252.

Important: This motor is not compatible with direct-drive hoists.

Electrical Specifications

• Horsepower: 1 HP
• Speed: 1725 RPM
• Voltage: 220–230V
• Amperage: 6.29A @ 230V
• Frequency: 60 Hz
• Frame Size: 56
• Service Factor: 1.0
• Insulation Class: B
• Duty Rating: 15 minutes maximum runtime
• Maximum Ambient Temperature: 40°C
• Enclosure: TENV (Totally Enclosed Non-Ventilated)
• UL / C-UL-US Recognized

Safety

Warning: All wiring or rewiring of this motor should be performed by a licensed electrician.

What Is a TENV Motor?

A Totally Enclosed Non-Ventilated (TENV) motor is designed to prevent dust, moisture, and debris from entering the motor housing. Because it does not rely on external airflow for cooling, TENV motors are well-suited for marine and outdoor environments where exposure to the elements is common.
