6,500 lb. Deluxe Gear Plate Assembly – Powder-Coated Steel

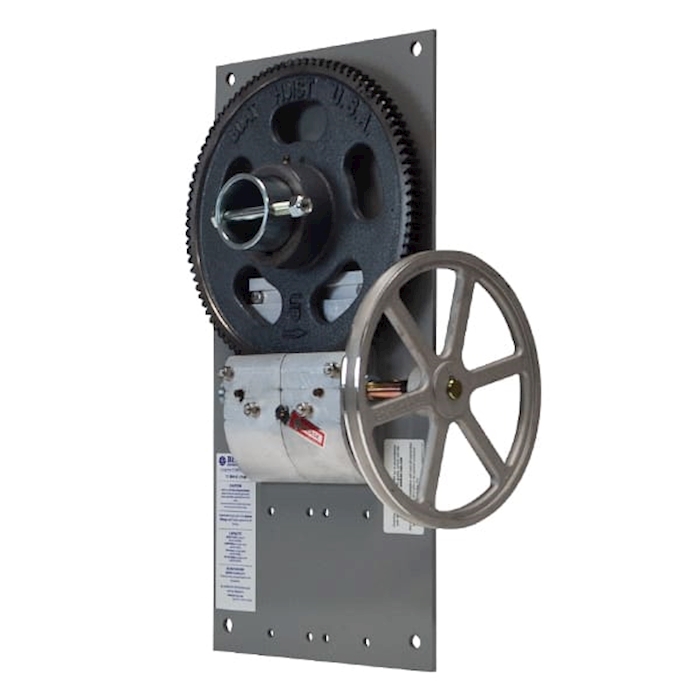

The 6,500 lb. Deluxe Gear Plate Assembly – Powder-Coated Steel is a heavy-duty, fully assembled drive system designed for long-lasting performance in flat-plate boat hoist applications. Featuring a durable powder-coated steel backplate, this version provides enhanced protection against corrosion and weather exposure while maintaining a clean, finished appearance.

Capable of lifting up to 6,500 lbs (straight line) when paired with a 1 HP HD motor, this assembly has been proven in BH-USA flat plate hoists for over 15 years. It utilizes a 96:1 cast iron worm gear and bronze worm drive to deliver smooth, reliable lifting performance while eliminating steel-on-steel contact to reduce wear and extend service life.

Features:

• 6,500 lb. straight line capacity (motor dependent)
• Powder-coated steel backplate for enhanced corrosion resistance and durability
• Fully assembled and load tested by the manufacturer
• No steel-on-steel moving parts for reduced wear and longer service life
• 96-tooth cast iron worm gear with bronze worm drive
• Includes 10" aluminum die-cast hoist pulley and 34" cogged drive belt
• (3) easy-access 1/4" grease fittings for convenient maintenance
• Standard flat-plate mounting holes for compatibility with most hoists
• Lifetime warranty

Motor Capacity Guidelines:

• Up to 6,500 lbs. with 1 HP HD motor
• Up to 4,500 lbs. with 1 HP motor
• Up to 3,500 lbs. with 3/4 HP motor

Specifications:

• Rated Capacity: 6,500 lbs (straight line)
• Gear Ratio: 96:1
• Plate Dimensions: 12" L x 24" H
• Plate Thickness: 1/4" – 1/2"
• Worm Gear Material: Cast Iron
• Worm Material: Bronze
• Worm Diameter: 1 3/4"
• Grease Fittings: (3) – 1/4"

Includes:

• Deluxe gear plate assembly with powder-coated steel backplate
• 96-tooth cast iron worm gear
• Extended block bronze worm assembly
• 10" aluminum die-cast single hoist pulley
• 34" AX cogged drive belt

With its corrosion-resistant powder-coated finish, proven design, and low-maintenance construction, the 6,500 lb. Deluxe Gear Plate Assembly is an excellent upgrade or replacement option for most flat-plate boat hoists.
