6,500 lb. Deluxe Gear Plate Assembly – 1/2" Aluminum

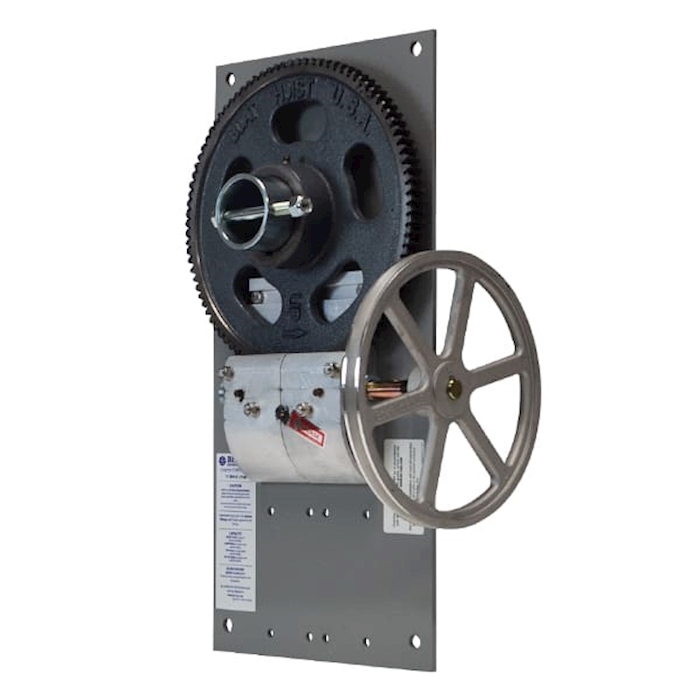

The 6,500 lb. Deluxe Gear Plate Assembly – 1/2" Aluminum is a heavy-duty drive system designed for maximum strength and durability in flat-plate boat hoist applications. Featuring a thicker 1/2" aluminum backplate, this version provides increased rigidity and structural support while maintaining excellent corrosion resistance for long-term use in marine environments.

Capable of lifting up to 6,500 lbs (straight line) when paired with a 1 HP HD motor, this assembly has been proven in BH-USA flat plate hoists for over 15 years. It utilizes a 96:1 cast iron worm gear and bronze worm drive to deliver smooth, reliable lifting performance while eliminating steel-on-steel contact to reduce wear and extend service life.

Features:

• 6,500 lb. straight line capacity (motor dependent)
• 1/2" aluminum backplate – increased strength and corrosion resistance
• Fully assembled and load tested by the manufacturer
• No steel-on-steel moving parts for reduced wear and longer service life
• 96-tooth cast iron worm gear with bronze worm drive
• Includes 10" aluminum die-cast hoist pulley and 34" cogged drive belt
• (3) easy-access 1/4" grease fittings for convenient maintenance
• Standard flat-plate mounting holes for compatibility with most hoists
• Lifetime warranty

Motor Capacity Guidelines:

• Up to 6,500 lbs. with 1 HP HD motor
• Up to 4,500 lbs. with 1 HP motor
• Up to 3,500 lbs. with 3/4 HP motor

Specifications:

• Rated Capacity: 6,500 lbs (straight line)
• Gear Ratio: 96:1
• Plate Dimensions: 12" L x 24" H
• Plate Thickness: 1/2"
• Worm Gear Material: Cast Iron
• Worm Material: Bronze
• Worm Diameter: 1 3/4"
• Grease Fittings: (3) – 1/4"

Includes:

• Deluxe gear plate assembly with 1/2" aluminum backplate
• 96-tooth cast iron worm gear
• Extended block bronze worm assembly
• 10" aluminum die-cast single hoist pulley
• 34" AX cogged drive belt

With its thicker aluminum construction, enhanced strength, and corrosion-resistant design, the 6,500 lb. Deluxe Gear Plate Assembly is an ideal choice for boat lift owners seeking a more rigid, heavy-duty upgrade while maintaining the benefits of aluminum construction.
