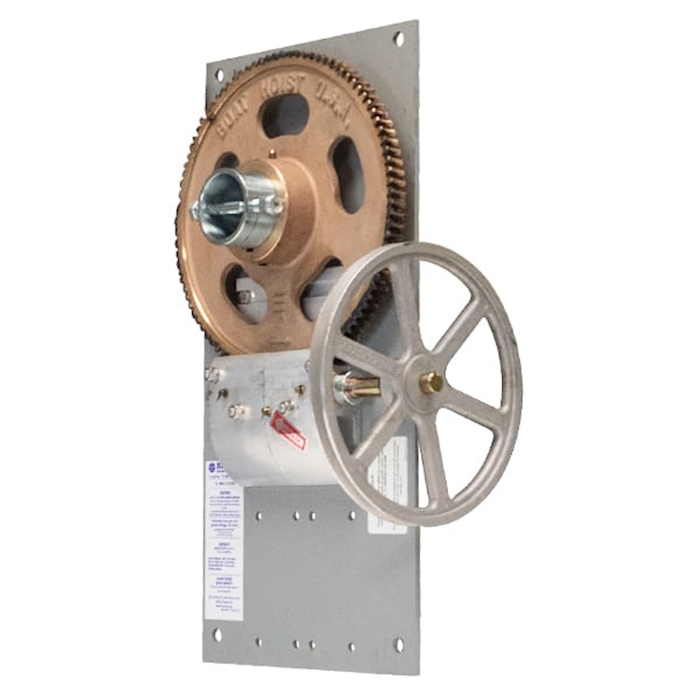

7,500 lb. Advanced Gear Plate Assembly

The 7,500 lb. Advanced Gear Plate Assembly is a heavy-duty, fully assembled drive system engineered for reliable performance in flat-plate boat hoist applications. Designed for strength, durability, and long service life, this assembly has been used on BH-USA flat plate hoists for over 15 years and is built to withstand demanding marine environments.

Capable of lifting up to 7,500 lbs (straight line) when paired with a 1.5 HP motor, this advanced gear plate features a 96:1 bronze worm gear and hardened steel worm drive for smooth, efficient lifting. The design eliminates steel-on-steel contact, helping reduce wear and extend the life of the system.

Features:

• 7,500 lb. straight line capacity (with 1.5 HP motor)
• Fully assembled and load tested by the manufacturer
• No steel-on-steel moving parts for reduced wear and longer service life
• 96-tooth bronze worm gear with hardened steel worm drive
• Includes 10" aluminum die-cast hoist pulley and 34" cogged drive belt
• (3) easy-access 1/4" grease fittings for simple maintenance
• Standard flat-plate mounting holes for compatibility with most hoists
• Available with galvanized or powder-coated steel backplate
• Lifetime warranty

Specifications:

• Rated Capacity: 7,500 lbs (straight line)
• Gear Ratio: 96:1
• Plate Dimensions: 12" L x 24" H
• Plate Thickness: 1/4"
• Worm Gear Material: 932 Bronze
• Worm Material: Hardened Steel
• Worm Diameter: 1 3/4"
• Grease Fittings: (3) – 1/4"

Includes:

• Advanced gear plate assembly
• 96-tooth bronze worm gear assembly
• Extended block worm assembly
• 10" aluminum die-cast single hoist pulley
• 34" AX cogged drive belt

With its proven design, premium materials, and low-maintenance construction, the 7,500 lb. Advanced Gear Plate Assembly is an excellent upgrade or replacement option for most flat-plate boat hoists requiring higher lifting capacity.
