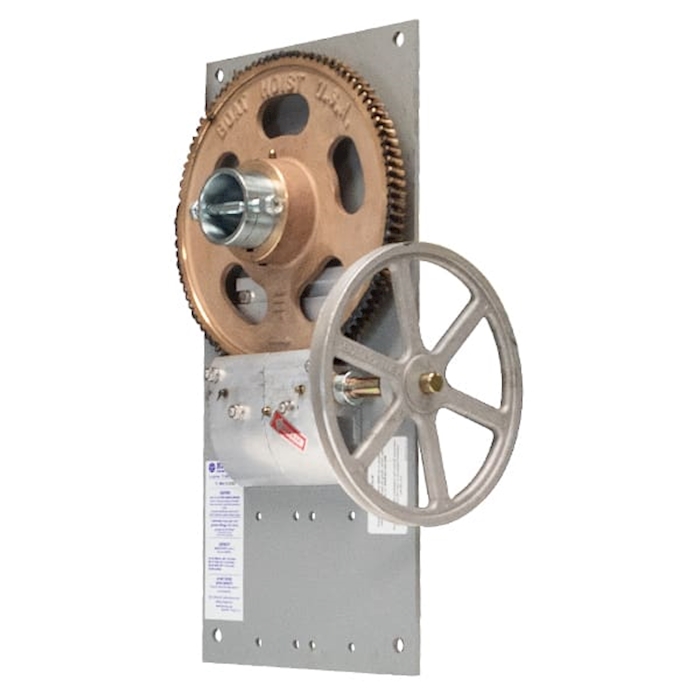

7,500 lb. Advanced Gear Plate Assembly – Galvanized Steel

The 7,500 lb. Advanced Gear Plate Assembly – Galvanized Steel is a heavy-duty, corrosion-resistant drive system designed for long-lasting performance in flat-plate boat hoist applications. Built to withstand harsh marine environments, this assembly features a galvanized steel backplate for enhanced protection against rust and weather exposure.

Capable of lifting up to 7,500 lbs (straight line) when paired with a 1.5 HP motor, this gear plate utilizes a 96:1 bronze worm gear and hardened steel worm drive for smooth, reliable lifting. Its design eliminates steel-on-steel contact, helping reduce wear and extend the life of the system.

Features:

• 7,500 lb. straight line capacity (with 1.5 HP motor)
• Galvanized steel backplate for superior corrosion resistance
• Fully assembled and load tested by the manufacturer
• No steel-on-steel moving parts for reduced wear and longer service life
• 96-tooth bronze worm gear with hardened steel worm drive
• Includes 10" aluminum die-cast hoist pulley and 34" cogged drive belt
• (3) easy-access 1/4" grease fittings for simple maintenance
• Standard flat-plate mounting holes for compatibility with most hoists
• Lifetime warranty

Specifications:

• Rated Capacity: 7,500 lbs (straight line)
• Gear Ratio: 96:1
• Plate Dimensions: 12" L x 24" H
• Plate Thickness: 1/4"
• Worm Gear Material: 932 Bronze
• Worm Material: Hardened Steel
• Worm Diameter: 1 3/4"
• Grease Fittings: (3) – 1/4"

Includes:

• Advanced gear plate assembly with galvanized steel backplate
• 96-tooth bronze worm gear assembly
• Extended block worm assembly
• 10" aluminum die-cast single hoist pulley
• 34" AX cogged drive belt

With its corrosion-resistant galvanized steel construction and proven heavy-duty design, the 7,500 lb. Advanced Gear Plate Assembly is an ideal solution for boat lift owners looking for long-term durability and reliable lifting performance in demanding waterfront conditions.
