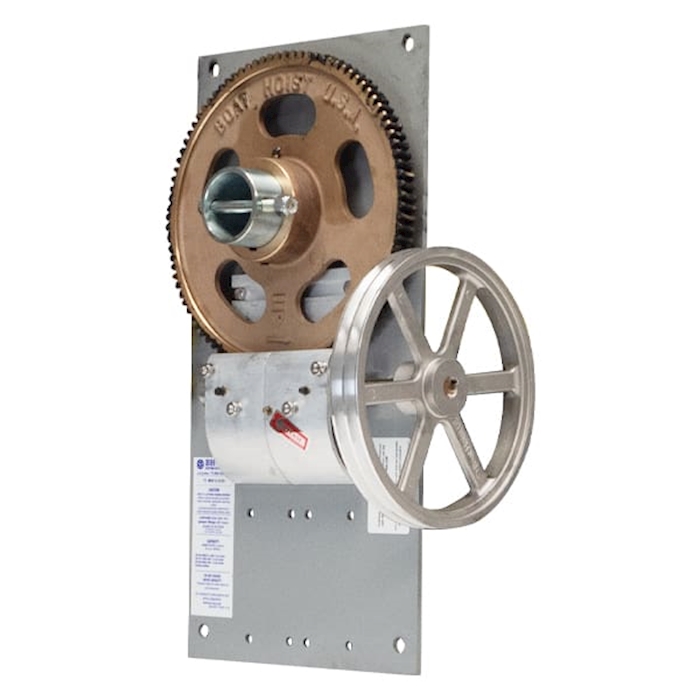

8,500 lb. Advanced Gear Plate Assembly – Galvanized Steel

The 8,500 lb. Advanced Gear Plate Assembly – Galvanized Steel is a heavy-duty, dual-belt drive system engineered for maximum lifting performance in flat-plate boat hoist applications. Featuring a galvanized steel backplate, this version provides superior corrosion resistance, making it ideal for demanding waterfront and marine environments.

Designed for high-capacity lifts, this assembly delivers up to 8,500 lbs (straight line) when paired with a 1.5 HP motor. It utilizes a 96:1 bronze worm gear and hardened steel worm drive to ensure smooth, reliable lifting while eliminating steel-on-steel contact to reduce wear and extend service life.

This model features a dual-belt 10" aluminum die-cast hoist pulley, allowing for increased torque transfer and improved lifting efficiency under heavier loads compared to single-belt systems.

Features:

• 8,500 lb. straight line capacity (with 1.5 HP motor)
• Galvanized steel backplate for superior corrosion resistance
• Dual-belt pulley system for increased lifting power and efficiency
• Fully assembled and load tested by the manufacturer
• No steel-on-steel moving parts for reduced wear and longer service life
• 96-tooth bronze worm gear with hardened steel worm drive
• Includes 10" aluminum die-cast hoist pulley and (2) 34" cogged drive belts
• (3) easy-access 1/4" grease fittings for convenient maintenance
• Standard flat-plate mounting holes for compatibility with most hoists
• Lifetime warranty

Specifications:

• Rated Capacity: 8,500 lbs (straight line)
• Gear Ratio: 96:1
• Plate Dimensions: 12" L x 24" H
• Plate Thickness: 1/4"
• Worm Gear Material: 932 Bronze
• Worm Material: Hardened Steel
• Worm Diameter: 1 3/4"
• Grease Fittings: (3) – 1/4"

Includes:

• Advanced gear plate assembly with galvanized steel backplate
• 96-tooth bronze worm gear assembly
• Extended block worm assembly
• 10" aluminum die-cast dual-belt hoist pulley
• (2) 34" AX cogged drive belts

With its corrosion-resistant galvanized finish, dual-belt performance, and heavy-duty construction, the 8,500 lb. Advanced Gear Plate Assembly is an ideal solution for high-capacity boat lifts requiring maximum durability and long-term reliability in harsh outdoor conditions.
