6,000 lb Aluminum Four Post Pile Mount Boat Lift with Flat Plate Hoists

Manufacturer: BH-USA

Typically Ships: 3-7 Business Days

Load Capacity: 6,000

Item Type: Lift - Piling

Construction: Marine Grade 6061-T6 Aluminum

Designed to Fit: 8" Diameter or Larger Piling

QTY:
Base Model Regular Price: $5,563.00
Configured Price: $5,563.00
OVERVIEW

6,000 lb. ALUMINUM PILING MOUNT BOAT LIFT

The 6000 lb capacity aluminum four post piling mounted boat lift has a no weld design and is constructed using Marine Grade 6061-T6 aluminum and stainless steel fasteners. This unit comes standard with a flat gear plate hoists design with Elite 3/4 HP 56 frame motors and covers. Each motor is wired with a drum switch and GFCI and the ability to upgrade to Key FOB remote control.

​The 6000 lb capacity lift requires at least an 8" diameter piling an the lift comes standard with 4 aluminum pile mount brackets that are designed to be mounted to the inside of the piling. Pile mount brackets are included, long bolts to mount the brackets to the pilings are not. We find it easier to place the top beams on top of the pilings then mount the brackets, that way we know they will be level!



6000 LB CAPACITY LIFT INCLUDES

  • (2) Completely Assembled 12′ 6″ Aluminum Top Beams with drive pipe and cable winders inside
  • (4) Aluminum Pile Mount Brackets (require at least an 8" diameter piling)
  • (2) 6" x 12′ 5″ Aluminum Cradle Beams with Brackets (custom cradle beam lengths available)
  • (2) 12' x 8" Aluminum Bunks with I-beam Flange Mounting Hardware
  • (2) 3/4 HP Motors with Aluminum Gear Plate Assemblies and 4 Post Flat Plate Hardware Kit
  • (2) Motor Covers (front and back)
  • (4) 80″ PVC Guide Post Bumper with 6" I-beam Flange Stanchions and 48" Black Guide Post Bumpers





6000 LB CAPACITY LIFT SPECIFICS

The 6000 4 Pile Boat Lift comes with instructions for installation, but the information below will also give you an idea of how the unit goes together and is installed.




TOP BEAMS - The top beams come fully assembled with the drive pipe and cable winders and are 12' 6" in length. The lift will include 4 aluminum pile mount brackets to mount the top beams and these brackets are to be mounted on the inside of the pilings. Un-level top beams can cause the hoist to scream and the lift to bind. We find it easier to place the top beams on top of the pilings then mount the brackets, that way you know they are level. The lift will also include 2 aluminum hoist mounting plates that will need to be mounted to the front of the beams, slots down.




MOTORS AND CONTROL - The lift is supplied with two electric motors, one motor will be wired with 16’ control and the other with 45’ control. Mount the motor with the longer lead on the pole furthest from the dock and run the 14/5 control wire through PVC to the other side of the slip, this will require you to remove the switch. Always use both drum switches side by side. Do not attempt to wire both motors into one drum switch. Your motors will get out of sync and you will have no way of adjusting them. The lift motor switches function in three positions: levers up to raise the lift, levers down to lower the lift and levers in the middle to stop the lift. The optional GEM remote allows for one switch control and comes with a leveling option built in.




MOUNTING FLAT PLATE HOIST AND COVER - The Flat Plate Hoist mounts to the hoist mounting plates that are installed on the end of top beams. There will be two aluminum spacer sleeves in your hardware box. These sleeves fit over the end of the 1 1/2” drive pipe and slide into the flatplate hoist sleeve that is designed to except a 2 3/8” pipe. The only thing holding this sleeve to the pipe will by the bolt that attaches the flat-plate hoist to the drive pipe. It is important that you secure the bottom half of the back cover to the plate using bolts. This will insure that the cover will snap into place.



CABLE DESIGN - The 6000 lb capacity lifts are straight line lifts which means the cable will end at the cradle beam and not double back to the top-beam. The I-beam clamp includes a stainless steel bolt and you simply remove this bolt and re-insert it through the pre-swaged loop at the end of the included cable. These are no-weld aluminum cradles and have I-Beam clamps bolted to the ends of each cradle.These can easily be removed so the I beam can be cut to size then re-bolted. All lifts come with 33 ft cable drops, for this lift, the cable will need to be cut.

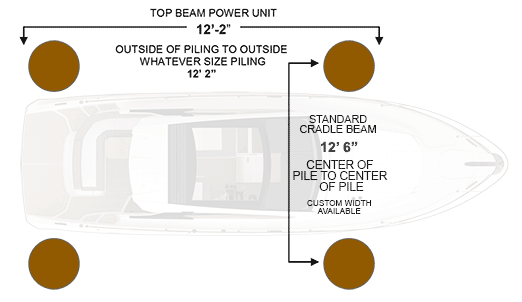

MEASURING FOR CRADLE WIDTH

The 6000 comes standard with a 12' 6" cradle length, but we can provide any length needed. If your pilings are already installed, it is very important to get an accurate CENTER TO CENTER measurement between the pilings. This measurement will determine the length of cradles you will want to order. If the center to center measurement is 12'' 6", then you will need a cradle length of 12'' 6". If correct width cradles are not installed there can be issues with how the unit operates. Please see illustration below.





Product assembly is required. It is recommended that this unit is assembled by experienced contractors or those experienced in boat hoist assembly and installation. Improper assembly and maintenance may void factory warranties. It is important to review and examine all assembly/use instruction guides prior to operation.



ADDITIONAL INFORMATION

  • This product ships out common carrier freight. Please add this product to your shopping cart and then enter your postal code for estimated shipping costs.
  • Tracking information will be provided via email when the shipper catalogs the pick-up.
SPECIFICATIONS
Manufacturer: BH-USA
SKU: 36459
Winch
Hoist Type: Two 4,000 lb. Deluxe Gear Plate Assembly
Limit Switch: Bracket Included, Limit Switch Optional
Motor Voltage: 120 Volts
Motor HP: 3/4 HP
GFCI Protected: UL, NEMA, GFCI Protected
Controller: 2 Drum Switch with Optional Remote Upgrade
Motor Type: Two Elite 3/4 HP Painted 56 Frame Motors
Controller Cable: 14/5 (1) 16 FT and (1) 45 FT
Structure
Pipe Bearings: Bronze, 4 Per Top Beam
Drive Pipe: 1.9 OD x 1.5 ID HD Galvanized Schedule 40
Cradle Type: Flat Rack I-Beam
Cable Winders: Yes
Top Beam Length: 12.5 FT
Cradle Beam: 12.5 FT Long x 6 IN Tall x 4 IN Wide 6061-T6 Aluminum I-Beam
Hull Bunk Length: 12 FT
Frame Material: Aluminum
Shipping
Typically Ships: 3-7 Business Days
Shipping Method: LTL Freight
Quick Info
Load Capacity: 6,000
Hull Bunk Type: 12′ x 8″ Aluminum Cradle Bunk
Operation: 2 Independent Manual Drum Switches or Remote Upgrade
Fasteners: Stainless Steel
Item Type: Lift - Piling
Construction: Marine Grade 6061-T6 Aluminum
Designed to Fit: 8" Diameter or Larger Piling
Assembly Required: Yes
Cable Spec
Cable Diameter: 5/16"
Cable Material: Stainless Steel
Cable Length: 33 ft
Cable End One: Bare End
Cable End Two: Loop End
Number of Cables: 4
Lifting Design
Lift Design: Piling
Lift Operation: Electric Drive
Installation Specs
Piling Size: 8" or larger
Piling Quantity: 4
