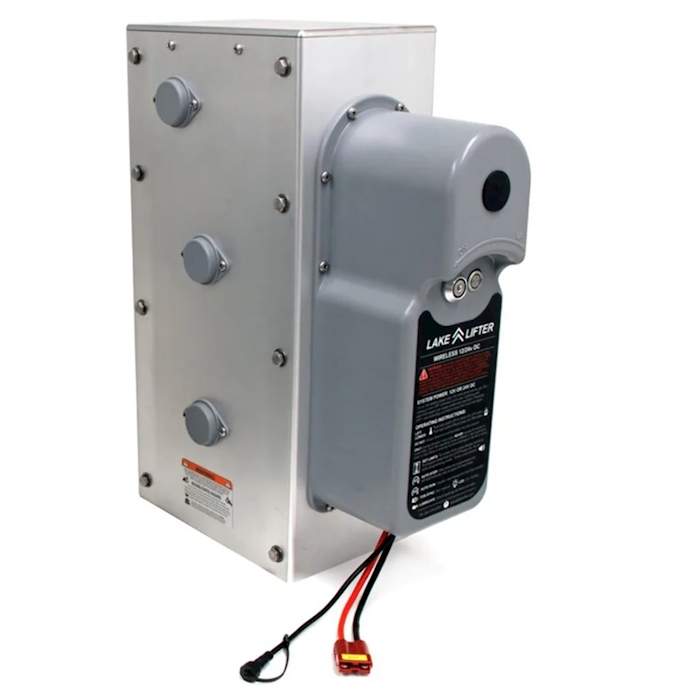

Lake Lifter DC Integrated Wireless Direct Drive Boat Lift Motor & 5K Winch Box
Upgrade your boat lift with the Lake Lifter DC Integrated Wireless Direct Drive Boat Lift Motor & 5K Winch Box. This premium integrated system combines a powerful direct drive boat lift motor with a heavy-duty 5,000 lb winch box, giving boat owners a cleaner, smarter, and more convenient alternative to traditional manual wheel operation.
Designed for strength, safety, and ease of use, the Lake Lifter integrated winch box features an extruded precision-machined design, wireless remote operation, EV1 digital intelligence, voice audio guidance, programmable upper and lower limits, and built-in auto-stop functionality. Once programmed, the system remembers your preferred stopping points and stops at the same set positions for consistent lift operation.
The EV1 smart lift controller adds modern control options including wireless key fob operation, app-based control, Bluetooth/WiFi capability, voice menu programming, and smart watch compatibility. Whether raising your boat for storage, lowering it into the water, or stopping at a convenient boarding height, this system is designed to make daily lift operation easier and more reliable.
Smarter Boat Lift Operation
The EV1 controller allows you to program upper and lower travel limits to help protect your boat, lift, cable, pulleys, and winch box from over-travel. An optional boarding position can also be programmed between the upper and lower limits, allowing the lift to pause at a convenient height for boarding or unloading before continuing up or down.
In manual mode, the lift moves only while the control is held. In auto mode, the lift can move to the programmed position with a simple tap from the key fob, phone app, or smart watch. The stop function remains the highest-priority command and can be used at any time to halt lift movement.
Built for Long-Term Cable Performance
The 5K model features a 5/16" grooved drum designed to improve cable tracking. When combined with properly programmed lift limits, the grooved drum helps reduce cable slack and cable pop, supporting longer cable life and smoother lift performance.
Convenient Wireless & App Controls
- Wireless key fob controls included
- Bluetooth/WiFi app control capability
- Smart watch compatible operation
- Voice audio guidance for setup and programming
- Manual and auto operating modes
- Programmable upper, lower, and optional boarding positions
- Immediate stop command for added control
Power Options
This Lake Lifter motorized winch box is designed for 12V or 24V battery operation, with 24V recommended for best performance. The system can be paired with compatible solar charging equipment to help maintain battery charge at the waterfront.
Optional LED Light Control
The EV1 controller includes LED light control capability for compatible Lake Lite or Lake Lifter LED lighting. The light can be toggled from the key fob or app, with brightness adjustment available through supported controls. The light output also includes automatic shut-off for added convenience.
Backup Drill Drive
For added peace of mind, the motor includes a backup drill-drive option. A standard drill with a 9/16" deep well socket can be used to operate the lift through the backup drive opening when needed. Do not use an impact drill.
Key Features
- Integrated DC direct drive boat lift motor and 5K winch box
- Designed for boat lifts up to 5,000 lbs
- Extruded precision-machined winch box design
- EV1 digital intelligence with voice audio guidance
- Wireless remote key fob operation
- Bluetooth/WiFi app control capability
- Smart watch compatible operation
- Digital upper and lower limit settings
- Optional boarding-position auto-pause
- Auto-stop functionality
- Auto-run mode with programmed limits
- Limit memory and limit drift protection
- Low-voltage alarm
- 5/16" grooved drum for improved cable tracking
- Helps reduce cable slack and cable pop
- All-weather electronic enclosure
- Motor condensation protection
- 12V or 24V battery operation
- 24V recommended for best performance
- Optional LED light output for compatible lighting
- Backup drill-drive capability
- Standard or custom mounting options available
Includes
- Lake Lifter DC Integrated Direct Drive Motor & 5K Winch Box
- Two wireless key fobs
Optional Accessories
- Compatible LED canopy light
- Dockside keyed wireless switch
- Solar charging equipment
- Custom extrusion mounting options
Important Compatibility Notes
- Designed for compatible boat lifts with proper winch box mounting.
- Always verify lift capacity, cable routing, mounting style, and clearance before installation.
- The upper limit must be programmed to allow proper clearance from the canopy, wake tower, bimini, or other obstacles.
- The lower limit should be set before the cable becomes slack.
- For best performance, use a marine deep-cycle or AGM battery. LiFePO4 batteries are not recommended by the manufacturer.
The Lake Lifter DC Integrated Wireless Direct Drive Motor & 5K Winch Box is an excellent choice for boat owners looking to modernize their boat lift with wireless controls, smart digital limits, app-based operation, and a strong integrated winch box design.
