MAGNUM 10,000 LB CAPACITY 4 POST PILING MOUNT BOAT LIFT

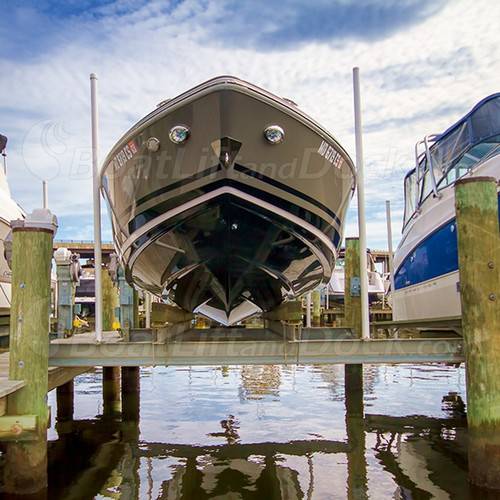

This is the Magnum 10,000 lb capacity 4 post / piling mount boat lift.  The most popular part of the design is that there is no beam between you and your boat. We offer both the ''S'' Model and the ''HD'' Model and each is designed to afford maximum hull support while keeping a low profile appearance and includes an outside walkway. This design allows for easy access to your vessel because it is positioned inches away from your dock. The ''S'' Model comes with a flat outside walkway.  The ''HD'' Model offers an elevated outside walkway that allows access to the non-dock side of your vessel for easy cleaning and maintenance.

For supporting your boat, the ''S'' Model comes with brackets for timber bunks. Standard to the "HD" model is a fully adjustable "I" beam bunking system to gently cradle your boat. The wood is not included to help keep shipping prices down. Your local installer will need to provide the wood for both the bunk caps an outside walkway. The worm gear driven winches are located on the dockside allowing for quick and easy maintenance.




The "HD" Model can also be upgraded to support a sailboat for an additional charge upon request.

There are 2 available sailboat supports styles:  The Universal Sail Kit & keel supporting Jack Screw Kit With Undersling

  • Universal Sail Kit utilizes braced uprights and bunks to support the sides of the sailboat and the keel hangs freely below.
  • Jack Screw Kit With Undersling utilizes 4 braced jack screws and an undersling to hold the keel.
  • JACK SCREW KIT WITH UNDERSLING MUST BE INSTALLED BY A PROFESSIONAL CONTRACTOR



MAGNUM 10,000 PILING LIFT STANDARD FEATURES:

  • 8' PVC Guide Stanchion (set of 4)
  • GFCI protected motors
  • Molded drive enclosures
  • Outside walkway - Elevated on HD Model (brackets only)
  • Galvanized steel construction
  • 2/3 year warranty
  • Stainless steel cables and sheaves
  • Bunk Kit - 16' I-Beams included with the HD Model
  • Optional Remote Controls
  • Optional E-Gear Drives



MAGNUM 10,000 PILING LIFT SPECIFICATIONS:

  • Capacity - 10,000 lbs
  • Motors - (2) 3/4 HP with 1750 RPM
  • Drive Units - (2) AMS 3000 Worm Gear Drives with Galvanized Backing Plates
  • Beams - (2) 6" x 4" x 13'' Standard
  • Cradle Travel - 9' standard
  • Required Power - 110 volt / 30 amp - 220 volt / 15 amp
  • Standard Controls - (2) Independent Manual Bremas Switches
  • Piling Requirement -  4 Pilings with an 8" minimum diameter
  • Piling Height minimum 18" above the deck



Our low profile design does not utilize an overhead power beam, allowing the operator free and easy access to the stored boat. We place both drive units on the dockside with NO underwater wiring*. This innovative feature allows the boat to be positioned next to the dock, easy maintenance of gear mechanism, and inspection of cables.



MEASURING FOR CRADLE LENGTH:

The 10,000 comes standard with a 13' cradle length, but we can provide any length needed. If your pilings are already installed, it is very important to get an accurate CENTER TO CENTER measurement between the pilings. This measurement will determine the length of cradles you will want to order. If the center to center measurement is 12' 5", then you will need a cradle length of 12' 5". If correct lengths are not installed there can be issues with how the unit lifts. Please see the illustration below.





A MAGNUM LIFT WILL:

  • Eliminate bottom painting
  • Save you time
  • Keep drive sections from corroding
  • reducing hull damage from ice or wave movement and floating debris
  • Your boat will be easy to launch at your own pier any time, with no hassle



PLEASE BE AWARE

This product requires LTL freight delivery to you to our local location for customer pick-up.  Product assembly is required.  It is recommended that this unit be assembled by experienced contractors or those experienced in boat hoist assembly and installation.  Improper assembly and maintenance may void factory warranties.  It is important to review and examine all assembly/use instruction guides prior to operation.



ADDITIONAL INFORMATION
  • Ships direct from the manufacturer
  • Tracking information will be provided via email when the shipper catalogs the pick-up.
  • You can estimate your freight shipping charges by adding the item to your cart and entering your zip code into the shipping calculator.
