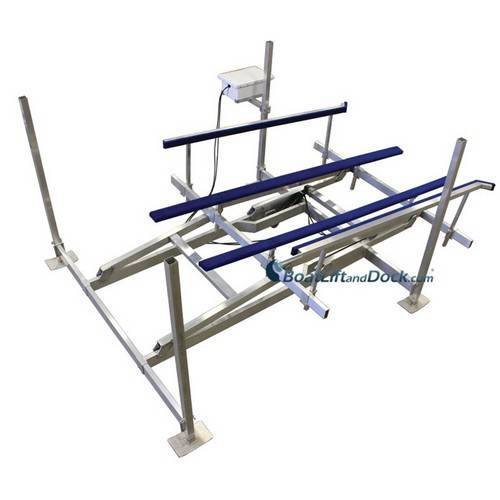

ShoreMaster 40948 Hydraulic Cantilever Boat Lift

Manufacturer: ShoreMaster

Load Capacity: 4,000

Item Type: Lift - Freestanding

Inside Opening: 108" Inside Width

Lift Cradle Travel: 48

Typically Ships: 4 - 8 Weeks

Hull Support Options
Loading Guide Selector
QTY:
Our Regular Price: $11,233.00
Configuration Price: $11,233.00
Availability:-
OVERVIEW

SHOREMASTER 40948 CANTILEVER HYDRAULIC BOAT LIFT

This 4,000lb capacity boat lift with 108" inside width from ShoreMaster has a cantilever design powered by a hydraulic system.  This hoist has a 48" lifting height and is built for watercrafts with 8ft beams or less.  Many cantilever hydraulic lifts offer a limited number of accessories, but ShoreMaster's design allows for all accessories and all hull bunk support types that are used on their vertical lifts to be installed on this lift as well.  This allows all types of boats to be used with this hydraulic lift.



KEY FEATURES

  • 4,000lb Max Lifting Capacity
  • 108" Max Beam (inside width - upright to upright)
  • Remote Control Operation
  • Versatile V-Rack Lifting Platform
  • 48" Cradle Lift Travel
  • Welded Frame Construction
  • Attractive Fiberglass Pump and Battery Box
  • Easy-to-Use and Dependable Hydraulic Pump
  • No Cables or Pulleys
  • Stainless Steel & Brass Fasteners
  • Various Hull Support Options Available


BUILDING YOUR HOIST PACKAGE

This ShoreMaster hoist can be equipped for virtually any watercraft style and a varied range of lakefront conditions.  With a wide variety of equipment accessories, this unit can be configured to suit your various needs.  While choosing your hoist configuration, please review the following options that this unit can be configured with.  These options are selected above and allow you to configure the new hoist to your needs.

The following section provides description to the various options that you can have this hoist equipped with.  These options are selected above the Add to Cart button, which allow you to build the configuration that you want.



WATERCRAFT SUPPORT OPTIONS

This hoist can be equipped with a variety of support hardware options.  The following options are designed for particular watercraft hull designs.  Watercraft support options include complete hardware kits that are mounted to the moving cradle of the lift and are in contact with and provide support to your boat.


11 ft Vinyl and Aluminum Hull Bunks

11' Aluminum / Vinyl Hull Bunks - This configuration is well suited for single hull designs including flat bottom, round bottom, and deep-V hull designs.  This option includes two individual 11' aluminum extrusion bunk rails with tapered entry ends.  They are covered with a non-abrasive vinyl and come with bracket hardware.  Aluminum/Vinyl bunks are maintenance free and do not trap lake sediment like older style carpeted lumber bunks.

14 ft Vinyl and Aluminum Hull Bunks

14' Aluminum / Vinyl Hull Bunks - This configuration is well suited for single hull designs including flat bottom, round bottom, and deep-V hull designs.  This option includes two individual 14' aluminum extrusion bunk rails with tapered entry ends, covered with a non-abrasive vinyl and come with bracket hardware.  Aluminum/Vinyl bunks are maintenance free and do not trap lake sediment like older style carpeted lumber bunks.

Pontoon Rail

Pontoon Rail Kit - This configuration is typically used on Pontoons and in some cases with Tritoon boat designs.  One of the most traditional systems used, the pontoon rail kit includes four vertical cradle mounted bracket assemblies.  Once installed, lumber boards are attached to the bracket assemblies which then act as a support surface your boat's under-deck.  Pontoon rack systems such as this have been widely used for a number of years due to the basic design and user friendliness.




EXTENSION LEG OPTIONS

Freestanding lifts such as this model utilize four independently adjustable legs which are inserted into the corner columns of the hoist.  When installed they allow you to adjust the height of the lift at each of the corners so that you can achieve a level plane across the hoist.  Attached to each leg is a large base pad that will rest on the lake bottom.


3 ft Legs

3' Standard Extension Legs - standard legs extensions include 36" legs equipped with foot pads.  This option is best suited for water depths up to 6.5'.

5 ft Legs

5' Extension Legs - These 5' extension legs equipped with foot pads.  This is a good option for those with water depths between 5' - 8'.




LOAD GUIDE OPTIONS

Loading guides are optional accessories that can be added to your hoist at any time.  They are highly recommended for those in rough and windy areas or for inexperienced drivers.  They are designed to assist with leaving and parking your boat, by providing a "guide" aid to keep you centrally located within the hoist frame.


ShoreMaster PVC Guides

PVC Guide On - Mounted to the corners of the rear cradle beams, the PVC Guide-Ons are vertical upright post bumpers that are positioned to rear of the beam they are attached to.  Each guide provides a point of contact to keep you safely positioned to the center of the hoist.  This kit is sold in pairs of two assemblies that are designed to be used on the rear end of the lift.

ShoreMaster 11'' Guides

11' Full Length Guides - Unique 11' aluminum and carpeted guide rails with extended flare design allows for easy entrance into your lift in wind and waves.  They adjust horizontally and vertically for a perfect fit.  Please note, this guide system may cause damage to boat decals if they make rubbing contact with decals.

ShoreMaster 14'' Guides

14' Full Length Guides - Unique 14' aluminum and carpeted guide rails with extended flare design allows for easy entrance into your lift in wind and waves.  Adjust horizontally and vertically for a perfect fit.  Please note, this guide system may cause damage to boat decals if they make rubbing contact with decals.




BOW & MOTOR STOPS

Bow and Motor stops are optional accessories that can be added to your hoist at any time.  They are recommended for those in rough and windy areas or for inexperienced drivers.  They are designed to assist with parking your boat and deter from "over-shooting" your parking position.


Bow Stop

Bow Stop - Bring your boat to a stop in the perfect position every time.  Attached to the front cradle rack beam, the heavy duty padded bow stop will help prevent your boat from overrunning the lift.

Motor Stop

Motor Stop - Bring your boat to a stop in the perfect position every time.  The motor stop is attached to your rear cradle rack beam.  When installed its designed to prevent your driver from passing through the hoist.



ADDITIONAL INFORMATION

  • This hoist model provides an interior width of 108" between the vertical columns located at the corners of the hoist.  This width is best suited for watercrafts with a beam measurement that does not exceed 8 feet.
  • ShoreMaster 40948 - 4,000lb capacity hydraulic boat lift with 48" lift travel and V-Rack cradle.
SPECIFICATIONS
Manufacturer: ShoreMaster
SKU: 1028906
Base Group
Product MPN: 1024759
General
Load Capacity: 4,000
Model: 4948
Item Type: Lift - Freestanding
Assembly Required: Yes
Lift Design
Operation: Hydraulic
Watercraft Style: Pontoon , Single Hull , Tritoon
Lift Design: Cantilever , Freestanding , Hydraulic
Hydraulic Cylinder(s): Two
Hydraulic Principle: Extend to lift
Frame Specs
Inside Opening: 108" Inside Width
Lift Cradle Travel: 48
Cradle Style: Aluminum V-Rack
Frame Material: Aluminum
Fasteners: Stainless/Brass Combo
Winch Specs
Motor Type: 12VDC Hydraulic Pump
Lift Operation: Hydraulic
Application Suggestions
Anchoring Type: Freestanding
Watercraft Weight (Wet): 2,400 - 2,900 , 2,900 - 3,400 , 3,400 - 3,900
Shipping Information
Typically Ships: 4 - 8 Weeks
Shipping Method: LTL Freight
Manufacturer Details
Product Manual: Product Manual
