MaxLoc 6' - 8' Adjustable Crossarm Dock Support

Manufacturer: Max Dock

Typically Ships: 5-10 Business Days

Model: Max Dock

Series: MaxLoc

Item Type: Dock - Hardware

Material: Aluminum

Vertical Support Posts
Base Pad Option
Add Center Leg
Center Leg Post Length
QTY:
Base Model Regular Price: $249.00
Configured Price: $249.00
OVERVIEW

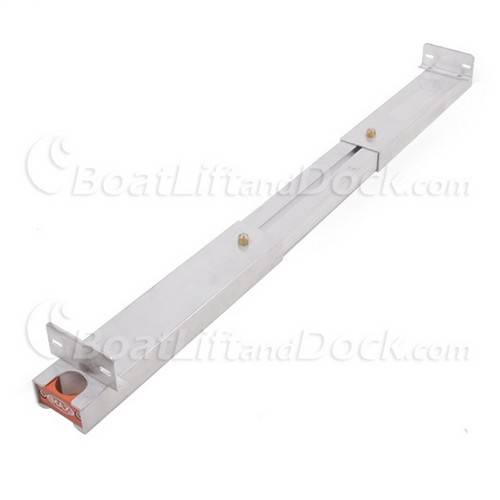

Maxloc 6'-8' Adjustable Complete Dock Support

The MaxLoc 6' - 8' Adjustable Platform Support is a universal platform support assembly for dock sections and can be used with many different dock sections no matter how they are constructed from. The images above explain how the system works together.

Unlike most traditional dock supports, the MaxLoc assembly features an unmatched vertical load design capable of load weights far beyond traditional residential round post dock supports. The integrated aluminum red cut billet cross-arm clamps are custom-designed to apply evenly distributed 360-degree pressure across each vertical 2" OD aluminum dock posts.



DOCK SECTION WIDTH ACCEPTANCE

The 6' - 8' adjustable MaxLoc H-Frame support features the ability to adjust to various widths. Allowing you to use the support with dock sections with widths ranging from 72" to 96". The telescoping crossmember can be adjusted within this range to provide a custom fit to your dock section.



CROSSARM FEATURES

  • VERY STRONG 2" x 4" Aluminum Extrusion Cross-member
  • Post clamps provide 360 Degree Even pressure
  • End clamps tighten around a 2" OD dock post with the use of a 5/16" hex wrench
  • Once tightened, this cross-arm will not move!
  • Pre-Attached Aluminum Stringer Plates



COMPLETE SUPPORT

The MaxLoc complete crossmember makes dock height adjustment simple and quick. Only requiring a single hex wrench to adjust the height while providing a secure fit. Custom support widths are available and can accommodate up to a 30' wide platform.

To create complete dock support, you will need to add the following;

  • 1 - MaxLoc 6'-8' adjustable cross-arm assembly with integrated cross-arm clamps, stringer brackets and an adjustable center leg post
  • 2 - 2" OD vertical dock posts (choose the correct length for your water depth)
  • 2 - standard base pads, large base pads or dock post augers



BASE PAD OPTIONS


Standard 8" x 8" aluminum bottom plates work well in sand and other solid lake bottoms. Not recommended for extremely deep mud or muck.





Large Dock Base PadLarge 12" x 12" aluminum bottom plates provide a larger footprint for the leg and works better in area with softer lake bottoms, may not work well in extremely deep mud or muck.





Dock AugerAluminum Dock Augers are recommended from supports that will have boats or watercraft tied to it. Augers make installing the support more work than using just bottom plates. The auger helps to anchor the dock to the lake bottom. You can also use a combination of base pad and auger for maximum support.



For single section runs in water depths exceeding 5'' or very soft lake bottom conditions, you may want to consider the X-Brace add-on kit for increased stability and section sway reduction.



ADDITIONAL INFORMATION

  • Tracking information will be provided via email when the shipper catalogs the pick-up.
  • You can estimate your shipping charges by adding the item to your cart and entering your zip code into the shipping calculator.
SPECIFICATIONS
Manufacturer: Max Dock
SKU: 66-11157
Shipping
Typically Ships: 5-10 Business Days
Shipping Method: UPS/FedEx
Base Group
Product MPN: MaxLoc-6''-8''-Complete
Model
Model: Max Dock
Series: MaxLoc
Frame Spec
Frame Material: Aluminum
Quick Info
Design: Complete Cross-Arm
Style: Platform H-Frame
Fasteners: Stainless Steel
Item Type: Dock - Hardware
Material: Aluminum
Part Type: Dock Support
Designed to Fit: 72" - 96" Wide Frame
Accessory Type: H-Frame Support
Applications
Mounting: Bolt On
Fits Post Size: 2" OD
Support Spec
Includes Legs: Yes
Dimensions
Stringer Distance Adjustable: Yes
Leg Post Length: 2' - 9'
Manufacturer Info
Manufacturer Website: www.maxdock.com
