MaxStand 13' - 16' Wide "Standard" Hidden Support System

Manufacturer: Max Dock

Model: MST013-016

Series: MaxStand

Min Height: 36"

Item Type: Dock - Leg Stand

Material: Aluminum

Select Support Style
Select Leg Length
QTY:
Our regular Price: $740.00
Configuration Price: $740.00
OVERVIEW

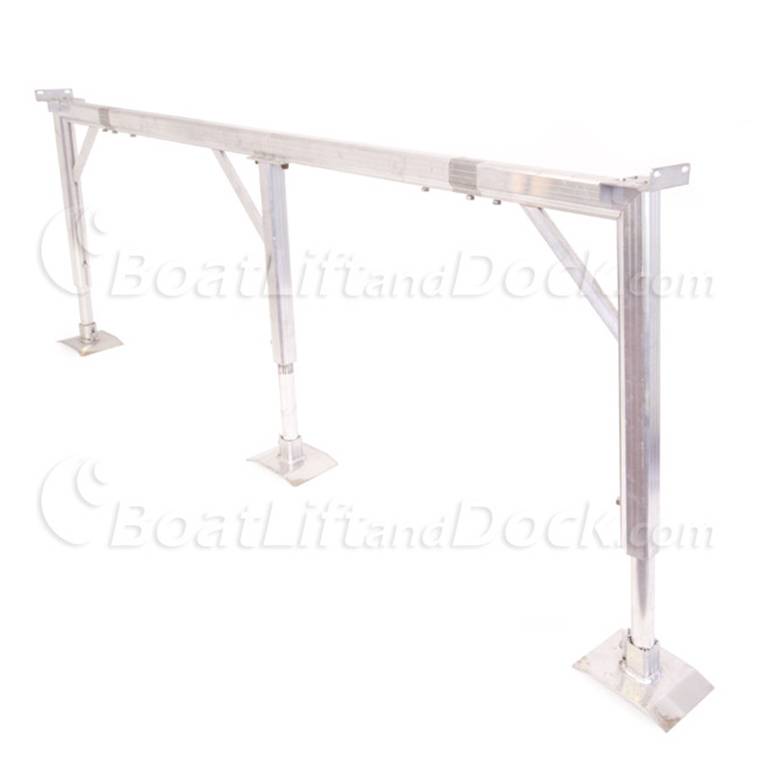

MAXSTAND 13' - 16' "STANDARD" ADJUSTABLE HIDDEN UNDER-DOCK SUPPORT WITH A-FRAME STANCE

Discover unparalleled stability and aesthetics with the MAXSTAND 13' to 16' Adjustable Under Dock Support by MaxDock. This unique A-Frame stance support remains hidden beneath your dock, offering a clean, unobstructed look on the walking surface. Its innovative design adjusts to deeper waters, broadening the stance for enhanced stability, outperforming conventional H-Frame supports.



KEY FEATURES

  • Width Adjustable from 13' to 16' for versatile fit
  • Stand End Frames with Stringer Brackets
  • 107.5" Center Cross Member Section - (1)
  • Center Support Leg Assembly - (2)
  • Sturdy 48" Extension Tubes - (2
  • 36" Telescoping Leg Post - (4)
  • 1/2" Stainless Bolt and Brass Nut Leg Adjuster - (2)
  • Stable Angled Base Pad (outside) - (2)
  • Flat Standard Base Pad (center) - (2)




SUPPORT DESCRIPTION

MaxStand Dock Support 13'' to 16''
  • STRINGER BRACKETS - Securely holds dockside stringers with pre-drilled fastening holes.
  • SPACER - This is used to place under the side stringer of a dock if it happens to line up over the Extension tube so the dock remains level. This spacer can be moved across the Extension tube anywhere it needs to be located.
  • CENTER CROSSMEMBER - The central backbone, made from high-grade extrusion for robust support.
  • EXTENSION TUBES - These tubes slide into the Center Crossmember and Stand Ends and allow for the width adjustment. A simple 1/2" stainless bolt and brass nut are used on the Center Crossmember and Stand End to tighten up the Extension Tube at a given width.
  • STAND END - These are the two angled ends of your support and included a 45° brace and the Stringer Bracket. This assembly also has two 1/2" stainless bolt and brass nut Leg and Extension Tube, adjusters.
  • LEG POST AND BASE PAD - Included, but not pictured.




AVAILABLE SUPPORT STYLES


    "STANDARD" 13' - 16' MAXSTAND SUPPORT - This option includes the stand itself with 30" frame legs, four 36" telescoping leg posts, two center frame supports and four base pads (2 outside and 1 center). The combination of the 30" legs and the standard 36" posts give this stand 58" of vertical height. Longer leg options available.

    "SHORTY" 13' - 16' MAXSTAND SUPPORT - The ''Shorty'' is used for shallow water applications and the stand comes with 20.5" frame legs, four 24" posts, four base pads and also includes two center supports. The combination of the 20.5" legs and the 24" posts give this stand a 38" max height. The lowest it can get is 24" off the lake bottom. If you need shorter supports, you can bury the feet to reduce the height or use a MaxLoc.




ADDITIONAL INFORMATION

  • Tracking information will be provided via email when the shipper catalogs the pick-up.
  • You can estimate your shipping charges by adding the item to your cart and entering your zip code into the shipping calculator.
SPECIFICATIONS
Manufacturer: Max Dock
SKU: 66-11317
Base Group
Product MPN: 66-11317
Model
Model: MST013-016
Series: MaxStand
Quick Info
Section Width: 13'-16'
Design: A-Frame Support
Style: Under Dock, Platform
Min Height: 36"
Fasteners: Stainless/Brass Combo
Middle Legs: Yes - 2 set
Item Type: Dock - Leg Stand
Material: Aluminum
Part Type: Dock Support
Designed to Fit: 13'-16' Dock Frame
Frame Spec
Frame Material: Aluminum
Support Spec
Adjustable Leg Size: 36"
Includes Legs: Yes
Leg Adjustment Style: Bolt & Jam Nut
Applications
Mounting: Bolt On
Fits Post Size: 2" OD
Dimensions
Foot Pad Size: 7.5" x 10"
Stringer Distance Adjustable: Yes - 1"
Leg Post Length: 36"
Manufacturer Info
Manufacturer Website: www.maxdock.com
Shipping
Typically Ships: 7-15 Business Days
Shipping Method: UPS/FedEx
