Mini Mag 1200 PWC Pile Lift with Rotation

Manufacturer: Magnum Lifts

Product MPN: MiniMag1200

Load Capacity: 1,200

Model: 1200M ROT

Item Type: Lift - Dock Mount

Lift Cradle Travel: 6' to 8'

Choose Lifting Height
Select Motor option
QTY:
On Sale For: $1,989.00
OVERVIEW

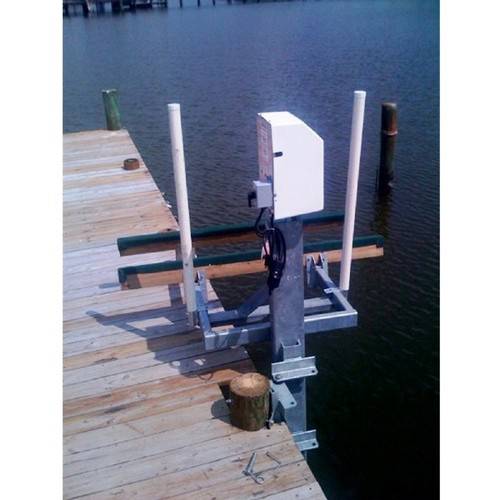

MINI MAG 1200 PWC LIFT WITH ROTATION FOR PILING MOUNT

The Mini Mag 1200 Personal Watercraft Lifts by Magnum Boat Lifts have been designed as a user-friendly solution for storing your watercraft without ropes, cleats or a trailer and also give you the ability to rotate the unit over the dock when in the fully raised position.  The Mini Mag uses forklift style arms with carpeted hull bunks to raise and lower your watercraft and its low profile design makes this lift very attractive.



KEY FEATURES

  • 1200 lb Lifting Capacity
  • 5' Arm Length
  • 6' or 8' Cradle Lift Travel
  • 6' Carpeted Wood Hull Bunks
  • 4'' PVC Post Guides
  • Galvanized Steel Construction
  • Galvanized Steel Fasteners
  • Attaches to 8" or Larger Piling
  • Manual or Electric Winch
  • Polypropylene Track Rollers
  • Stainless Steel Cable
  • 2 Year Mechanical and 5 Year Structural Limited Warranty




The Mini Mag's track is secured to a piling with supplied galvanized steel mounting hardware.  This track is what determines the amount of lift height the lift will provide.  The track is available in an 8' upright which provides 6' of lift height, or an optional 10' upright which provides 8'' of lift height.  The lift's carriage travels through the track and raises or lowers with the use of a manual or electric winch.  The manual option uses a Dutton Lainson DL1500 winch.  The Electric option uses an AMS 1000 with Cover.



AVAILABLE ACCESSORIES

AC or 12V DC models available using the drop-down above.



ADDITIONAL INFORMATION

  • Ships direct from the manufacturer
  • Ships out in 3 - 7 business days and is then picked up by a freight carrier for delivery.
  • DC motor option adds 3 days to shipping time.
  • Tracking information will be provided via email when the shipper catalogs the pick-up.
  • You can estimate your freight shipping charges by adding the item to your cart and entering your zip code into the shipping calculator.
SPECIFICATIONS
Manufacturer: Magnum Lifts
SKU: MINIMAG 1200 ROT
Base Group
Product MPN: MiniMag1200
Shipping Information
Typically Ships: 3-7 Business Days
Shipping Method: LTL Freight
General
Load Capacity: 1,200
Model: 1200M ROT
Item Type: Lift - Dock Mount
Assembly Required: Yes
Frame Specs
Lift Cradle Travel: 6' to 8'
Hull Bunk Type: Carpeted Lumber
Hull Bunk Length: 6
Cradle Style: 5' Arms
Frame Material: Galvanized Steel
Winch Specs
Winch: Manual or Electric
Motor Type: AC 110v AMS 1000 with Cover if electric winch option is chosen
Power Type: AC 110v
Power Requirement: AC 110V
Cable Specs
Cable Diameter: 1/4
Cable Material: Stainless Steel
Application Suggestions
Anchoring Type: Piling Mount
Watercraft Weight (Wet): 500 - 800, 800 - 1,200
Lift Design
Operation: Manual or Electric
Watercraft Style: PWC
Lift Design: Electric, Manual, Piling, PWC
Return Policy
Restocking Fee: Yes
Warranty Information
Warranty: 2 Year Mechanical and 5 Year on Gearing and Structural Components
Manufacturer Details
Product Manual: View Mini Mag 1200 Product Manual
