MaxStand 4' Wide Standard Hidden Support System - 66-11276

Manufacturer: Max Dock

Typically Ships: 3-5 Business Days

Model: MST004

Series: MaxStand

Min Height: 22" with Shorty

Item Type: Dock - Leg Stand

Configuration Option
QTY:
Base Model Regular Price: $265.00
Configured Price: $265.00
OVERVIEW

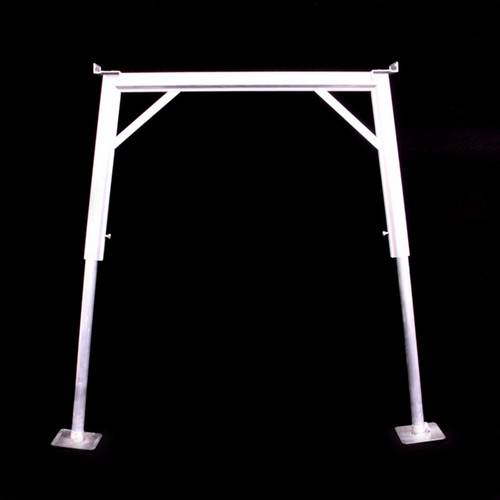

MaxDock MS04 - MaxStand 4'' Wide Hidden Under-Dock Support with A-Frame Stance

The 4'' Under Dock Support with A-Frame Stance is hidden from the top of the dock and provides great stability. The deeper the water, the wider the stance which creates a more stable dock in comparison to traditional H-Frame style supports. Under dock supports create a more aesthetically pleasing look, when installed there are no posts above the walking surface as you find with other support styles.


SUPPORT INCLUDES

  • 4'' Width (1 inch of Stringer Bracket Adjustability)
  • Stand with two stringer brackets (1)
  • 1/2" stainless bolt and brass nut leg adjuster (2)
  • 36" Telescoping Leg post (2) (Optional Leg Lengths available)
  • 7" x 12" Angled Base Pad (2)




AVAILABLE SUPPORT STYLES


    Standard 4'' MaxStand Support - This option includes the stand itself with 30" legs, two 36" telescoping posts and two base pads. The combination of the 30" legs and the standard 36" posts give this stand 56" of vertical height. Longer legs can be added.


  ''Shorty'' 4'' Max Stand Support - The ''Shorty'' is used for shallow water applications and the stand comes with 20" legs, 18" telescoping posts and two base pads. The combination of the 20" legs and the 18" posts give this stand a 38" max height. The lowest it can get is 22" off the lake bottom. If you need a shorter support, you can bury the feet to reduce the height or use a MaxLoc or Traditional Support instead.

    ''T'' and ''L'' 4'' Max Stand Support - This support is designed to create a ''T'' or an ''L'' design with your platform. One end of the support has a standard leg and the other end is set up to attach directly to the crossmember of the last MaxStand and use it to support that end. This stand includes the TL stand with 30" leg(1), one 36" leg post,one base pad and the T&L hardware.



ADDITIONAL INFORMATION

  • Orders typically ship within 3-5 business days
  • Product ships via UPS
  • Please contact us for supports requiring assemblies exceeding 9 feet



© 2016 BoatLiftandDock.com


MaxStand 4'' Wide Standard Hidden Support System - MS04
SPECIFICATIONS
Manufacturer: Max Dock
SKU: 66-11276
Base Group
Product MPN: 66-11276
Shipping
Typically Ships: 3-5 Business Days
Shipping Method: UPS/FedEx
Support Spec
Adjustable Leg Size: 36"
Includes Legs: Yes
Leg Adjustment Style: Bolt & Jam Nut
Model
Model: MST004
Series: MaxStand
Frame Spec
Frame Material: Aluminum
Quick Info
Design: A-Frame Support
Style: Under Dock
Min Height: 22" with Shorty
Max Height: 56" with Standard or T&L
Fasteners: Stainless/Brass Combo
Middle Legs: No
Item Type: Dock - Leg Stand
Material: Aluminum
Part Type: Dock Support
Designed to Fit: 48" Wide Frame
Accessory Type: A-Frame Support
Applications
Mounting: Bolt On
Fits Post Size: 2" OD
Dimensions
Foot Pad Size: 7.5" x 10"
Stringer Distance Adjustable: Yes - 1"
Leg Post Length: 36"
Manufacturer Info
Manufacturer Website: www.maxdock.com
