NEW Canopy Covers

LSP LSC1576 Cantilever PWC Lift

Manufacturer: LakeShore Products

Load Capacity: 1,500

Model: LSC1576

Item Type: Lift - Freestanding

Inside Opening: 76" Inside Width

Lift Cradle Travel: 35

Operation Selector
Accessory Option
Choose Leg Option
Our regular Price: $2,301.00
On Sale For: $2,188.00
Configuration Price: $2,188.00

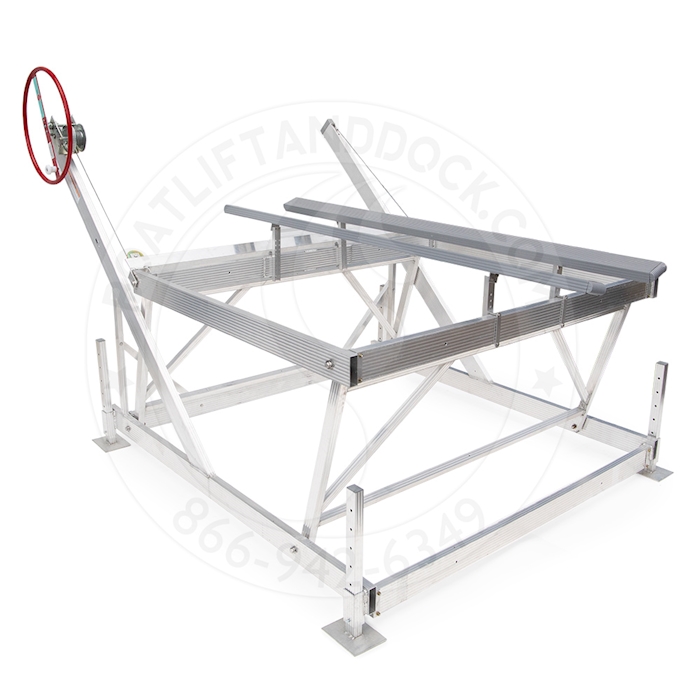

The Lakeshore LSC1576 cantilever lift is a reliable aluminum small boat, jet ski, or PWC lift with a great design. This lift works great for 3 and 4 Seat PWC units and especially the 4 Stroke models. Many boats are just too small or inexpensive to warrant a vertical lift. The LSP LSC1576 is a lightweight, inexpensive lift that will handle up to 1500 lbs and accommodate watercraft up to 75" wide.


This Personal Watercraft / Small Boat Lift can be placed either parallel or perpendicular to your dock. By placing your lift perpendicular to your dock, you can save precious space that will allow others more access to your dock.

SHIPPING NOTE: Our website calculates live freight shipping costs. With some of our larger products, we can provide better shipping rates by running a custom shipping request, specifically when multiple products are combined into one shipment. If you would like to get a custom shipping quote, please sign in or create an account, add the products you desire to your cart, and on the cart page, click the "Request a Quote" link, and we will run it manually to see if we can get a better rate. You can also do this if you want to pick up products from our Plainwell, Michigan location. Not available for all product lines.


  • 1500lb Max Lifting Capacity
  • 76" Max Beam (the inside distance of diagonal upright to diagonal upright)
  • 35" Lift Height (actual cradle travel)
  • Fully Adjustable 8' Carpeted Hull Bunks
  • 235 lb Overall Weight
  • Oversized Winch with Durable Zinc Plating
  • 98% Aluminum (stainless steel fasteners)
  • 25" Powder Coated Aluminum Wheel
  • Stainless Winch Cable for Strength
  • 20" Telescoping Adjustable Legs
  • 2 Year Mechanical and 10 Year Structural Limited Warranty

This Lakeshore lift offers the exclusive Pulley Bar Design, a one-piece pulley design that works better than independent pulleys and results in longer cable life while shielding your watercraft from any contact with the cable.


Welded bushings also provide extra reinforcement at each pivot point, unlike other competitors models that simply drill holes.

The adjustable legs in both the front and rear of the lift make it easy to keep your watercraft above the water and level.

  • Lift Tech Marine Direct-Drive PWC Motor in DC 12v OR AC 110v.  (See drop-down menus above)
  • Lake Lite 5-watt Solar Panel Kit.  (See drop-down menus above)
  • One or Two Pair of 4ft long extension legs (See drop-down menus above)
  1. This PWC lift comes with a manual crank winch operated by the turn wheel but you may choose to add a D/C or A/C powered direct drive motor from Lift Tech.  The motor is key turn operated.  The D/C model requires a solar panel kit and 12 volt battery.  The A/C model requires shore power at or near the dock.
  2. You can select a solar panel kit to power the D/C Lift Tech motor.  The panel is 5 watts and designed for a single marine deep cycle 12 volt battery.  It comes complete with a wiring kit and mounting arm.
  3. Option of upgrading to a pair of 4ft extension legs that could be placed on the rear or one side of the lift that is in deeper water or softer bottom.  You can also get two pairs of 4ft extension legs that will go all the way around the lift to make it function in much deeper water.


  • When the carrier picks up the items then the tracking information will be sent via email.
  • For estimated shipping charges add the items to your cart and enter your zip code into the shipping calculator on the cart page.
Manufacturer: LakeShore Products
SKU: LSC-1576
Base Group
Product MPN: LSC1576
Load Capacity: 1,500
Model: LSC1576
Item Type: Lift - Freestanding
Assembly Required: Yes
SEE Group
Dims (WxLxH): 83.75 x 96
Lift Design
Operation: Manual
Watercraft Style: Paddle Boat, PWC, Single Hull
Lift Design: Cantilever, Freestanding, Manual, PWC
Frame Specs
Inside Opening: 76" Inside Width
Lift Cradle Travel: 35
Adjustable Leg Size: 20
Hull Bunk Length: 8
Frame Material: Aluminum
Fasteners: Zinc Plated Steel
Fits Beam Sizes: Up to 76
Cable Specs
Cable Diameter: 1/4
Cable Material: Galvanized Steel
Winch Specs
Wheel Size: 22
Lift Operation: Turn Wheel
Application Suggestions
MaxWaterDepth: 42" with Standard Legs
Watercraft Weight (Wet): 1,200 - 1,500, 500 - 800
Shipping Information
Typically Ships: 2-4 Weeks
Shipping Method: LTL Freight
Manufacturer Details
Warranty: 2 Year Mechanical and 10 Year Structural
Manufacturer Website: Manufacturer Website
Product Manual: View Product Manual
Return Policy
Restocking Fee: Yes
