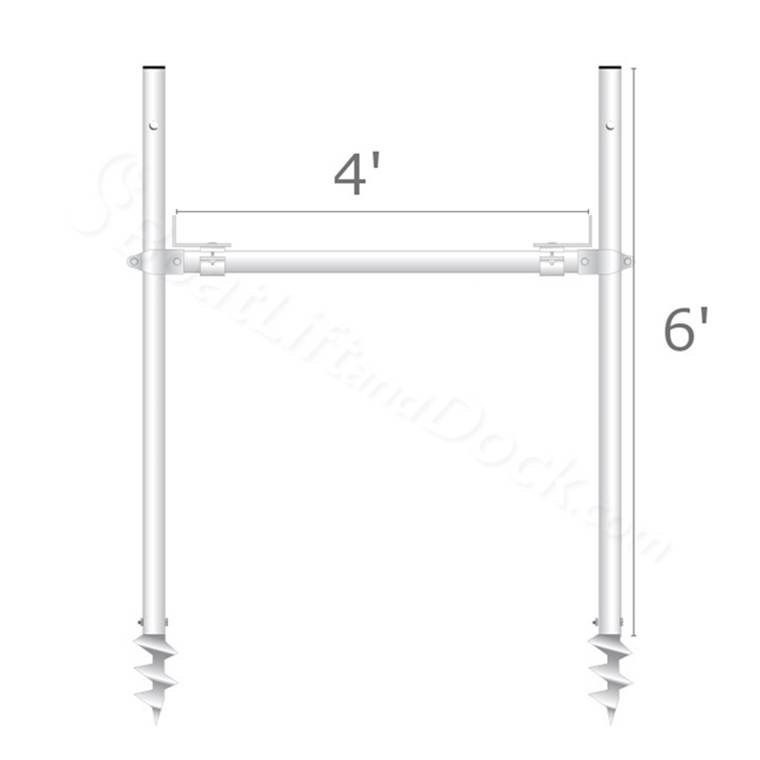

Traditional 4ft Wide H-Frame with 6ft Legs

Manufacturer: Private Label

Typically Ships: 3 - 5 Business Days

Material: Aluminum

Model: BLD-48x72H-Frame

Item Type: Dock - Leg Stand

Designed to Fit: 48" Wide Frame

Product Size
Base Model Regular Price: $122.00
Configured Price: $144.00

Boat Dock Traditional 48" wide H-Frame support for dock sections up to 48" wide. Constructed from 2" circular aluminum pipe with .090" wall thickness. The all aluminum support provides a corrosion resistant and light weight support that is very adjustable.

  • All STAMPED ALUMINUM Components
  • Adjustable stringer brackets that move back and forth across the cross-arm
  • Fully adjustable cross-arm clamps allow easy up and down leveling with 9/16" socket or wrench.
  • 48" Max Width cross-arm assembly
  • Turn hole to assist with auger installation
  • All aluminum with zinc plated fastener


  • 2 Capped 2" OD Aluminum Posts / Legs
  • 1 Cross-arm 2" OD Alumium
  • 2 Cross-arm Clamps
  • 2 Stringer Brackets
  • 2 - 7.5" base pads, 12" x 12" base pads OR aluminum augers



Dock Base Pad7.5" x 7.5" aluminum bottom plates work well in sand and other solid lake bottoms. Not recommended for extremely deep mud or muck.



Large Dock Base Pad12" x 12" aluminum bottom plates provide a larger footprint for the leg and works better in an area with softer lake bottoms, may not work well in extremely deep mud or muck.



Dock AugerAluminum Augers are recommended from supports that will have boats or watercraft tied to it. Augers make installing the support more work than using just bottom plates. The auger helps to anchor the dock to the lake bottom. You can also use a combination of base pad and auger for maximum support.


  • Product ships out in 3 - 5 business days and is then picked up by UPS Ground for delivery.
  • Tracking information will be provided via email when the shipper catalogs the pick-up.
  • You can estimate your shipping charges by adding the item to your cart and entering your zip code into the shipping calculator.
Manufacturer: Private Label
SKU: BLD-48x72H-Frame
Base Group
Product MPN: BLD-48x72H-Frame
Typically Ships: 3 - 5 Business Days
Shipping Method: UPS/FedEx
Product Information
Adjustable Leg Size: 6'
MaxWaterDepth: 5'
Frame Material: Aluminum
Style: Traditional H-Frame
Mounting: Bolt On
Fits Post Size: 2" OD
Fasteners: Zinc Plated Steel
Foot Pad Size: 7.5" or 12"
Material: Aluminum
Includes Legs: Yes
Part Type: Complete Dock Support
Inside Stringer Distance: 48"
Stringer Distance Adjustable: Yes
Leg Post Length: 6'
Model: BLD-48x72H-Frame
Item Type: Dock - Leg Stand
Designed to Fit: 48" Wide Frame
Accessory Type: H-Frame Support
Series: LakeFront Fix
