Traditional 3ft Wide H-Frame with 4ft Legs

Manufacturer: Private Label

Model: BLD-36x48H-Frame

Item Type: Dock - Leg Stand

Designed to Fit: 36" Wide Frame

Series: LakeFront Fix

Material: Aluminum

Product Size
QTY:
Base Model Regular Price: $145.00
Configured Price: $167.00
OVERVIEW

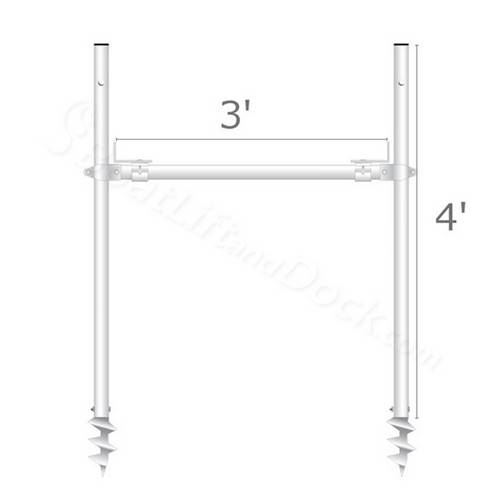

Traditional 3' Wide H-Frame with 4' Legs

Traditional 36" wide H-Frame support for dock sections up to 36" wide. Constructed from 2" circular aluminum pipe with .090" wall thickness. The all aluminum support provides a corrosion resistant and light weight support that is adjustable.



SUPPORT FEATURES

  • All STAMPED ALUMINUM Components
  • Adjustable stringer brackets that move back and forth across the cross-arm
  • Fully adjustable cross-arm clamps allowing for easy up and down leveling with 9/16" socket or wrench
  • 36" max width cross-arm assembly
  • Turn hole to assist with auger installation
  • All aluminum with zinc plated fastener


SUPPORT INCLUDES

  • 2 Capped 2" OD Aluminum Posts / Legs
  • 1 Cross-arm 2" OD Aluminum
  • 2 Cross-arm Clamps
  • 2 Stringer Brackets
  • Two 7.5" base pads, 12" x 12" base pads OR aluminum augers


POST ATTACHMENT OPTIONS


8" x 8" aluminum bottom plates work well in sand and other solid lake bottoms. Not recommended for extremely deep mud or muck.




12" x 12" aluminum bottom plates provide a larger footprint for the leg and works better in area with softer lake bottoms, may not work well in extremely deep mud or muck.




16" x 16" aluminum bottom plates provides a very large footprint for the leg and works well in softer and muckier areas. The only downfall to this size base pad is that it can be difficult to remove.




Aluminum augers are the recommended from of support for docks that will have boats or watercraft tied to it. Augers make installing the supports more work than using just bottom plates. The augers help to anchor the dock to the lake bottom. You can also use a combination of base pad and auger for maximum support.



ADDITIONAL INFORMATION

  • Typically ships in 3-5 business days
  • Tracking information will be provided via email when the shipper catalogs the pick-up
  • You can estimate your shipping charges by adding the item to your cart and entering your zip code into the shipping calculator
SPECIFICATIONS
Manufacturer: Private Label
SKU: BLD-36x48H-Frame
Base Group
Product MPN: BLD-36x48H-Frame
General
Model: BLD-36x48H-Frame
Item Type: Dock - Leg Stand
Designed to Fit: 36" Wide Frame
Series: LakeFront Fix
Product Information
Adjustable Leg Size: 4'
MaxWaterDepth: 3'
Frame Material: Aluminum
Style: H-Frame
Mounting: Bolt On
Fits Post Size: 2" OD
Fasteners: Zinc Plated Steel
Foot Pad Size: 8" or 12"
Material: Aluminum
Includes Legs: Yes
Part Type: Dock Support
Inside Stringer Distance: 36"
Stringer Distance Adjustable: Yes
Leg Post Length: 4'
Shipping
Typically Ships: 3 - 5 Business Days
Shipping Method: UPS/FedEx
