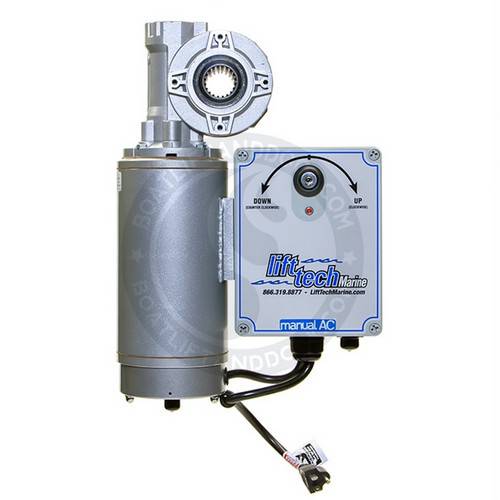

Lift Tech Marine AC 110v Key Operation Lift Motor LT-ACM100

Manufacturer: Lift Tech Marine

Load Capacity: 7,000

Model: LT-ACM100

Item Type: Lift - Motors

Power Type: AC

Hardware Kit Selector
Operation Option Selector
QTY:
On Sale For: $839.00
OVERVIEW

Lift Tech Marine AC 110v Remote LT-AC100 Boat Lift Motor

Tired of cranking your lift? The Lift Tech Marine model LT-ACM100 key switch operated 110V powered direct drive boat lift motor is a great solution to that problem. Easy and quick to install, Lift Tech Marine motor units available in AC and DC power options are packed with design features not found with competitors.

Designed to fit a majority of manual operation freestanding lift manufacturers, this unit allows you to eliminate the hassle of turning that old round turn wheel. Once the Lift Tech motor is installed, it allows you to operate your boat hoist with the turn of a key or by the use of an optional corded push button pendant.



KEY FEATURES

  • Equipped with Soft Start and Power Indicator LED
  • Low Maintenance
  • Backwind and Max Lift Amp Draw Sensor Protection
  • Runs on 110 volt AC (must use GFI outlet) with an average 6 - 11 amp draw
  • Designed and built to handle the elements, motor cover not required.
  • Heavy duty multi tooth spline for a stronger connection to winch
  • Works on freestanding mechanical lifts up to 7000 lb. capacity
  • Easy and quick installation
  • RPM 74 to 76
  • Optional Push Button Pendant can be added at any time to key switch models
  • Backup Bit for manual operation of the unit in the event of a power outage or system malfunction
  • 2 Year Warranty against manufacture defects on all Lift Tech Marine motors.



Lift Tech Marine Motor Units offered by BoatLiftandDock.com are of the most recent model revision. Featuring the most up-to-date safety and design features including soft start, and backwind/overwind amp limit sensors of which are not found on other aftermarket lift motor options.



INCLUDES

  • LT-ACM100 Power drive unit
  • Choice of installation mounting hardware
  • Backup Bit
  • 2 Keys



AC 110V Units - NOTE: water and electricity pose a potentially dangerous situation. It is highly recommended that a qualified electrician perform the installation of the power line equipped with a Ground Fault Circuit Interrupter (GFCI).

Installation Hardware Kits- Lift Tech offers a variety of hardware installation kits specifically designed for certain boat lift manufacturers. Hardware kits allow for the motor unit to attached to an existing mechanical reduction winch assembly. Lift Tech direct drive motors fit a majority of both new and old freestanding hoist manufacturers. During checkout please specify the brand of lift or winch model the motor will be installed on.

Fits Following Lift Brands - ShoreStation, Hewitt, Beach King, CraftLander (NuCraft), Daka, Dock Rite, Dutton Lainson 1200B, Dutton Lainson 2500/3500, Dutton Lainson B1200A, Dutton Lainson B1500A, Great Lakes Lift, Harbor Master, Lakeshore Products, Lakeside, Metal Craft, Newman, Northern Lights, Pier Pleasure, Port-A-Dock, RGC, ShoreMaster, ShoreMaster Whisper Winch, ShoreMaster Whisper Winch 2, ShoreMate, Summit, Feighner, Ridgeline and Vibo winch types.



ADDITIONAL INFORMATION

  • Ships out in 3 - 5 business days and is then picked up by UPS Ground for delivery.
  • Tracking information will be provided via email when the shipper catalogs the pick-up.
SPECIFICATIONS
Manufacturer: Lift Tech Marine
SKU: LT-ACM100
Shipping
Typically Ships: 3-5 Business Days
Shipping Method: UPS/FedEx
Quick Info
Load Capacity: 7,000
Model: LT-ACM100
Operation: Key Switch
Design: Direct Drive
Style: Direct Drive
Mount Style: Winch Box
Optional Accessory: Installation Hardware Kit Included
Item Type: Lift - Motors
Part Type: Lift Motor
Accessory Type: Freestanding Lift Motor
Manufacturer Support Phone:: 1-866-319-8877
Mounting Hardware Kit: Included
Manufacturer Info
Product MPN: LT-ACM100
Manufacturer Website: Manufacturer Website
Motor Spec
Motor Type: Direct Drive - replaces large wheel on lift
Power Type: AC
Power Loss Backup: Back Up Bit that can be used with a drill to raise and lower lift
Power Requirement: AC 110V
Applications
MaxAmpDraw: 8 to 11 Amps
Returns
Restocking Fee: Yes
Return for refund within:: 30
Return for replacement within:: 30
Warranty
Warranty: 2 Year Manufacture Warranty
Lifting Design
Lift Design: Cantilever, Freestanding, Manual, PWC, Vertical
Lift Operation: Electric Drive, Turn Wheel
