ShoreStation HA0143 Solar Panel Charger Kit (24V) – Adjustable Post / Roof Mount Bracket
The ShoreStation HA0143 Solar Panel Kit (24V) is an OEM charging solution designed to provide reliable, trouble-free charging and maintenance for 24-volt ShoreStation boat lift battery systems. This kit helps keep your batteries topped off during the season and can continue maintaining charge during storage when the panel is exposed to sunlight. The included adjustable mounting bracket supports a variety of installations including dock posts, lift pilings, and lift canopy roof mounting (top or side).
For best performance, the panel should be positioned with a clear view of the southern sky and adjusted to the proper tilt based on your location. ShoreStation’s guidelines recommend setting the tilt to approximately your latitude minus 15° for typical seasonal use. :contentReference[oaicite:0]{index=0}
Key Features & Benefits
- OEM ShoreStation solar charger kit for maintaining 24V boat lift batteries
- Flexible mounting options: pilings/posts, roof top or side, or dock pole mounting
- Adjustable tilt bracket for optimizing sun exposure based on geographic latitude
- Includes charge controller with LED status indicators
- Quick-connect harness makes panel/battery disconnect and storage easier
- Designed to help reduce dead batteries caused by normal standby power draw from lift controls
Mounting & Installation Notes
- The solar panel can be mounted using the included lag bolts to pilings that support the lift or roof, on top or side of the roof, or connected to a dock pole.
- The harness includes quick-connects near the panel and near the battery connection for easier removal and storage.
- To optimize charging, install the panel where it has a clear view of the southern sky and minimal shading.
Includes

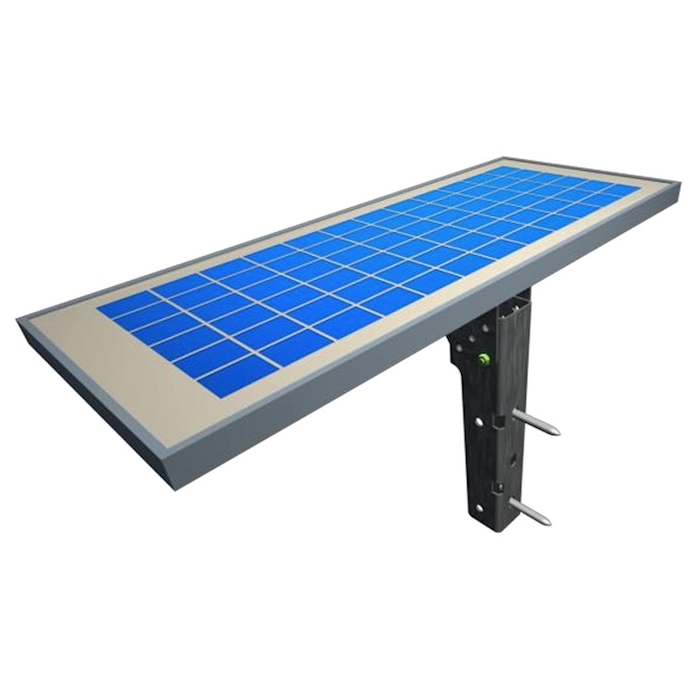

- 20W solar panel (24V configuration)
- Adjustable post / roof mount bracket
- Charge controller
- 25’ wiring harness with quick-connects
- Mounting hardware
Compatibility
- For 24-volt ShoreStation boat lift systems (Model HA0143)
- Not intended for 12V systems
Care & Maintenance
- Clean the glass panel surface periodically to remove debris for maximum performance (standard glass cleaners are acceptable).
- Inspect harness connections for corrosion; dielectric grease may be applied to help protect connectors in harsh environments.
