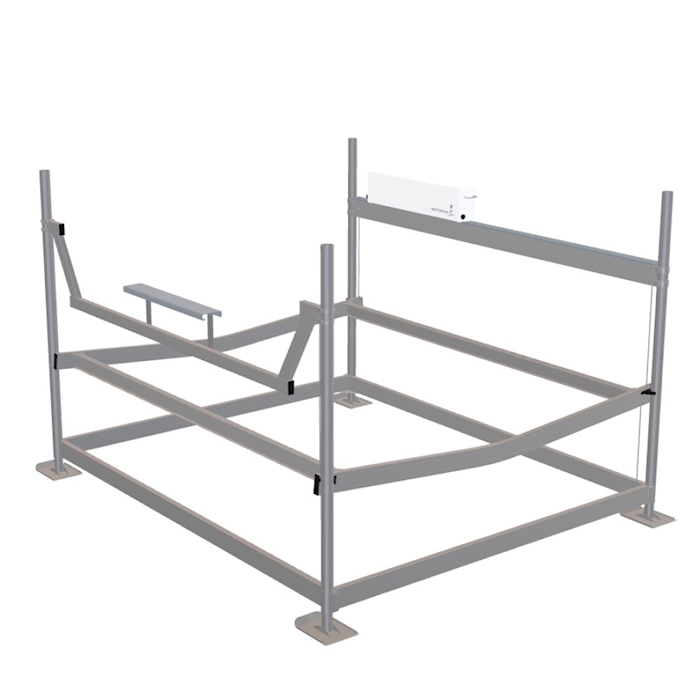

SHORESTATION SS-V70132HYDW — 7,000 lb CAPACITY VERTICAL HYDRAULIC BOAT LIFT

Raising and lowering your boat has never been easier or faster. The ShoreStation SS-V70132HYDW FlexPower® hydraulic boat lift delivers smooth, level-lift performance with rapid operation and rock-solid reliability. Powered by a dependable DC power system, this lift provides consistent power for fast, effortless operation cycle after cycle.

Every ShoreStation hydraulic lift is engineered with the entire hydraulic system positioned above the waterline — keeping critical components clean, dry, accessible, and protected from corrosion. This design dramatically increases service life and reduces maintenance compared to systems with submerged cylinders or hoses.

KEY FEATURES

• 7,000 lb Maximum Lifting Capacity
• Two Multi-Function Wireless Remotes Included
• 132" Maximum Inside Beam Width (upright to upright)
• Upper Limit Safety Sensor for Over-Travel Protection
• GAR-MAX® Bearings in All Sheaves for Ultra-Smooth Cable Travel
• DC Powered — Typically Achieves 6–8 Lift Cycles on a Fully Charged Battery
• V-Shaped Aluminum Cradle Platform Allows Operation in Shallower Water
• 63" Lift Height (actual cradle travel)
• Four Telescoping Adjustable Legs Included (standard)
• Large-Diameter Stainless Steel Lift Cables
• 15-Year Limited Warranty — Includes Lift Cables & Sheaves

AVAILABLE ACCESSORIES

• Bow Stop
• Motor Stop
• Loading & Centering Guides
• Canopy Frame & Cover Systems
• Solar Charging System
• Installation & Removal Wheel Kits

HYDRAULIC LIFT DESIGN & PERFORMANCE ADVANTAGES

Hydraulic Boat Lift Priority One: Smart Design.

ShoreStation — originally founded as Midwest Industries in the 1950s — brings decades of hydraulic engineering experience to its marine products. Unlike cantilevered hydraulic hoists with submerged components, the SS-V70132HYDW keeps its pump, cylinder, and all hydraulic fittings above the waterline. This reduces corrosion, lowers long-term maintenance costs, and helps ensure reliable performance season after season.

The system incorporates a hydraulic pressure-relief safety valve designed to prevent sudden lowering, even if a hydraulic hose is damaged. Keeping all hydraulic lines out of the water also helps extend seal and fitting life while reducing maintenance.

Large-diameter stainless steel cables run over large sheaves equipped with self-lubricating GAR-MAX® bushings, eliminating metal-to-metal wear and preventing cable binding.

The V-shaped aluminum cradle platform improves centering, increases shallow-water capability, and keeps all moving parts completely out of the water when the lift is raised — significantly reducing corrosion exposure and wear.

BUILD YOUR HOIST PACKAGE

This lift can be configured for a wide range of hull types and lakefront conditions. Selectable options are available above the “Add to Cart” button so you can build the exact setup your watercraft requires.

BOAT SUPPORT OPTIONS

STANDARD 14' ULTRA BUNKS — Ideal for single-hull boats including deep-V, round-bottom, and flat-bottom hulls. Ultra Bunks feature non-marring vinyl over aluminum extrusions, offering a maintenance-free alternative to carpeted bunks that trap sediment and hold moisture.

LOADING GUIDE OPTIONS

Loading guides help center your boat during entry and exit, especially in windy or choppy conditions. They are highly recommended for precise, stress-free docking.

SPRING-LOADED CENTERING GUIDE — Flex-action posts self-adjust as your boat enters, helping maintain proper alignment and reducing impact for smoother loading.

GLIDEPOLE CORNER POST GUIDES — Provides visual and physical guidance during landing, and acts as a frame to column braces for the entry end of the lift.



MOTOR & BOW STOP OPTIONS

Motor and bow stops help prevent overshooting and ensure the boat consistently lands in the correct position on the lift.

MOTOR STOP — Installs on the stern-side rack beam to prevent overrunning the platform when loading your boat onto the lift.

BOW STOP — Cushioned uprights bring the boat to a controlled, repeatable stop in the ideal parking position every time.

ADDITIONAL INFORMATION

• Tracking information will be emailed once the carrier schedules the pickup.
• This product requires customer offloading assistance.
• Due to the very heavy hydraulic lift tube and cradle assemblies, we strongly recommend delivery to a commercial location equipped with a forklift or loading dock for safe offloading.
• Freight costs can be viewed by adding the item to your cart and entering your ZIP code.

This lift ships via LTL freight or can be picked up locally. Assembly is required. ShoreStation recommends that installation be performed by trained installers or individuals with prior boat hoist assembly experience. Improper assembly or inadequate maintenance may void factory warranties. Please review all assembly and operation manuals carefully before use.
